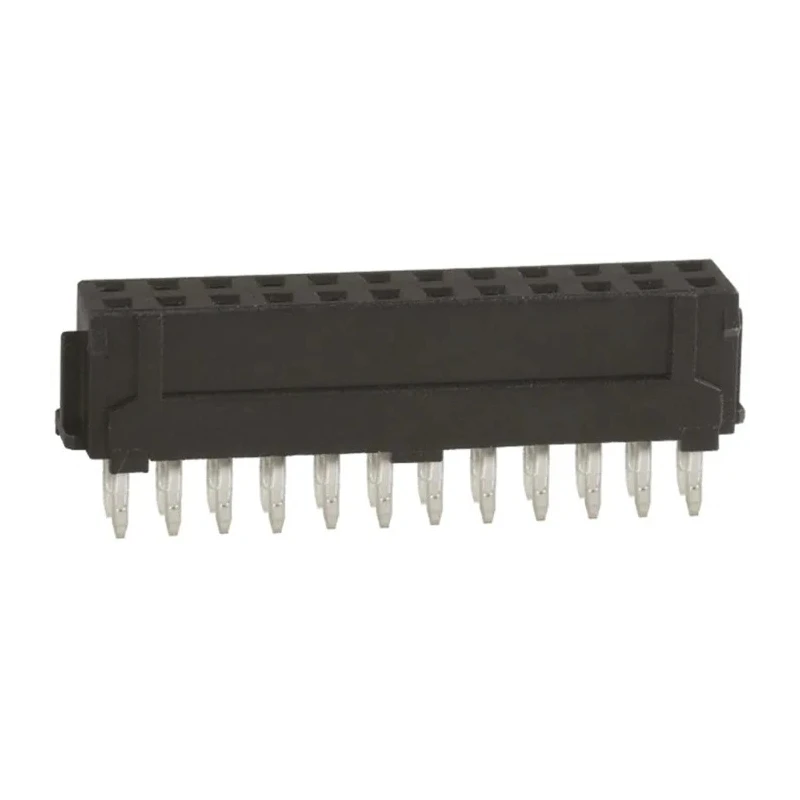

Hirose DF11 Series Straight Through Hole PCB Socket 24-Contact 2 Row 2 mm Pitch Solder DF11

Hirose DF11 series Straight Through Hole PCB Socket, model DF11, is a precision 24-contact, dual-row connector with a 2 mm pitch, specifically engineered for board-to-board electrical connections. It features a compact double row design with a depth less than 5 mm, enabling a double row of contacts within the space typically occupied by a single row connector, optimizing PCB real estate.

The socket housing is made from durable polyamide material, providing stable mechanical and electrical performance. Male contacts crafted from brass and plated with tin ensure excellent conductivity and corrosion resistance. This connector supports a maximum voltage of 250 V and current of 2 A, suitable for moderate power signal transmission in electronic equipment.

The through-hole mount combined with straight orientation ensures secure and reliable solder connections to PCBs, reducing mechanical stress and enhancing connection longevity. The guide ribs prevent mismating and twisting during connector insertion, improving assembly accuracy.

Hirose DF11 series sockets come with metal fittings on the SMT versions, improving PCB retention and preventing solder peeling, ensuring robust mechanical stability in demanding applications.

Typical applications include portable devices requiring multiple signal lines within limited space, digital cameras, LCD displays, digital video recorders, car navigation systems, access control units, and measurement devices.

Manufactured in Malaysia, the DF11 PCB socket series does not have specific industry approvals but is a recognized standard connector type known for its reliable performance. Compact double row design minimizes PCB footprint.

Wide operating temperature range from -30°C to 85°C. High reliability brass tin-plated contacts. Through hole solder termination for secure PCB mounting. Guide ribs prevent incorrect connector insertion. Metal fittings improve retention on SMT versions.

Suitable for board-to-board connector assemblies. 24-contact, 2-row configuration for high signal density. 250 V voltage and 2 A current ratings. Polyamide housing for robust mechanical strength. Explore a broad range of Hirose connectors and electronic components available on EnvMart for various electrical and industrial applications.
