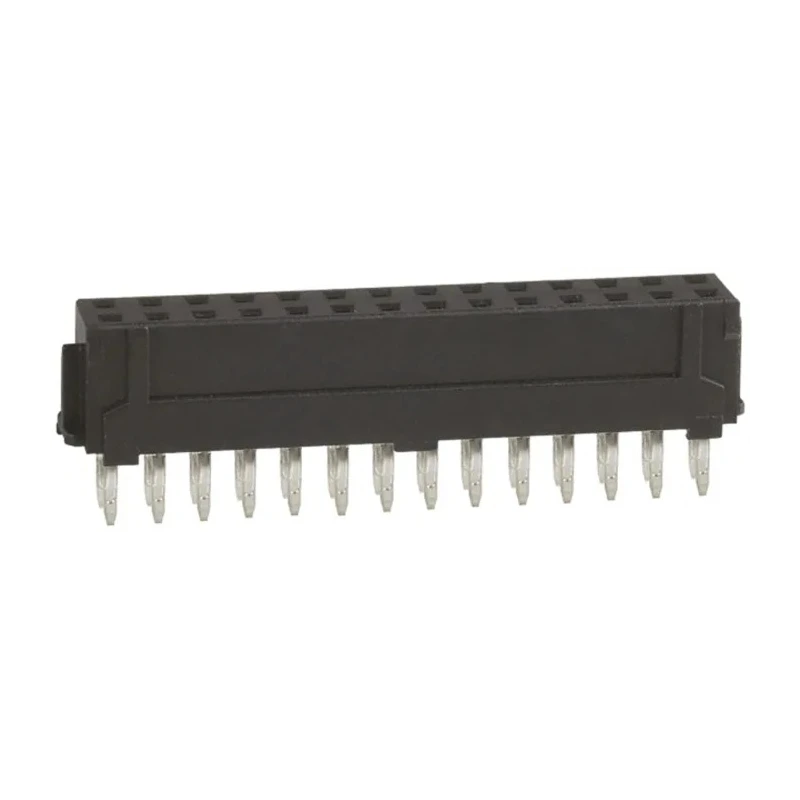

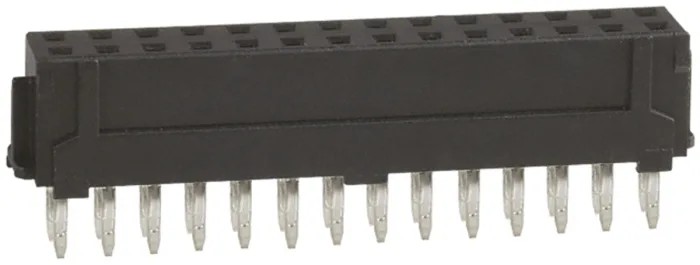

Hirose DF11 Series Straight Through Hole PCB Socket 28-Contact 2 Row 2mm Pitch Solder DF11
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 250V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 2A |
| Model | DF11 |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | DF11 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -30°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Tin |
| Number of Contacts | 28 |
| Contact Gender | Male |
| Connector System | Board-to-Board |
Key Features
- Compact double row design allows high contact density in minimal space.
- Through hole mounting ensures secure PCB attachment and reliable mechanical strength.
- Contact material brass with tin plating offers good conductivity and corrosion resistance.
- Rated for 2A current and 250V voltage for moderate power applications.
- Housing constructed from durable polyamide for insulation and mechanical durability.
- Operating temperature range from -30°C to 85°C suitable for diverse industrial environments.
- Features guide ribs to prevent incorrect insertion and twisting when mating connectors.
- Metal fittings improve retention on PCBs and prevent solder peeling in SMT variants.
Product Description
Hirose DF11 Series Straight Through Hole PCB Socket DF11 model is a 28-contact, 2-row connector designed for board-to-board applications with a 2.00 mm pitch. Its compact double row layout fits into spaces normally occupied by single-row connectors with less than 5 mm depth, saving PCB area significantly.
The housing is made from polyamide material providing excellent insulation. The contacts are crafted from brass with tin plating that ensures reliable electrical connections and corrosion resistance. The socket supports a current rating of 2A and voltage rating of 250V, apt for a variety of electronic circuits.
It features through hole mounting for sturdy PCB fixing, suited to industrial manufacturing processes. The connector is engineered with guide ribs to avoid mismating and twisting issues during assembly, ensuring correct and stable mating with its corresponding DF11 series header. Metal fittings on the SMT variants enhance retention on the PCB and help prevent solder peeling during thermal cycling.
Operating temperature range from -30°C to 85°C allows use in demanding environments such as automotive electronic assemblies, portable devices, and measurement equipment. This connector series is widely applied in digital cameras, LCD display modules, digital video recorders, car navigation systems, access control units, and test equipment.
The product is manufactured in Malaysia and supplied new. It does not bear additional industry certifications or approved standards. Compact double row design fits two rows in space of one. Through hole PCB mount offers strong mechanical support.
Brass contacts with tin plating deliver reliable conductivity. Supports 2A current and 250V voltage ratings. Polyamide housing for insulation and durability. Operating temperature range -30°C to 85°C. Guide ribs prevent incorrect insertion and twisting.
Metal fittings enhance SMT retention and solder joint reliability. Ideal for portable electronics and board-to-board connections. Manufactured in Malaysia, new condition. Explore more high-quality PCB Sockets and connectors in the Electronics Components category at EnvMart for your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB socket supports a current rating of 2A and a voltage rating of 250V, making it suitable for moderate power applications.
The DF11 model features a 2mm pitch and has 28 contacts arranged in a 2-row configuration.
The housing of this connector is constructed from polyamide, providing insulation and mechanical durability.
It features guide ribs that help prevent incorrect insertion and twisting when mating with corresponding connectors.
The operating temperature range for this model is from -30°C to 85°C, allowing for use in various industrial environments.
This socket uses a solder termination type, suitable for secure PCB attachment.
The orientation of this PCB socket is straight, designed for board-to-board applications.
The contacts are made of brass with tin plating, which ensures reliable electrical connections and corrosion resistance.
This connector is widely applied in digital cameras, LCD display modules, digital video recorders, car navigation systems, and test equipment.
This connector utilizes a through hole mounting type, providing strong mechanical support on PCBs.
This product is manufactured in Malaysia and supplied in new condition.
Metal fittings improve retention on PCBs and help prevent solder peeling in surface mount technology (SMT) variants.
