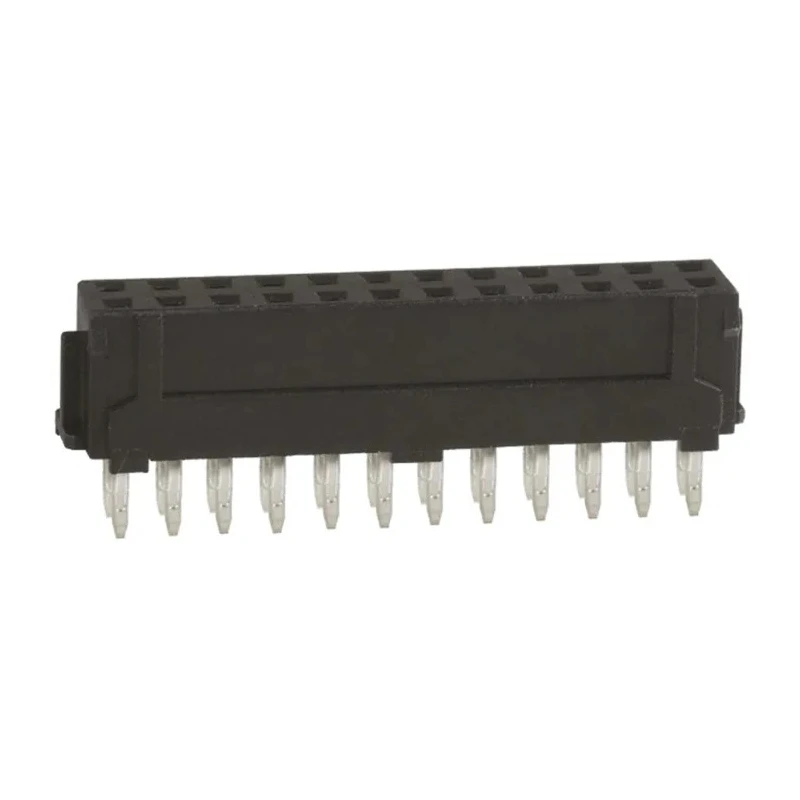

Hirose DF11 Series 2.00 mm Pitch Straight Through Hole 24-Contact 2-Row PCB Socket Connector DF11
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 250V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 2A |
| Model | DF11 |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | DF11 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -30°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Tin |
| Number of Contacts | 24 |
| Contact Gender | Male |
| Connector System | Board-to-Board |
Key Features
- Compact double row design with a depth under 5 mm for space saving on PCBs.
- Constructed from polyamide housing with brass contacts plated with tin for reliable conductivity.
- Rated for 250V voltage and 2A current capacity suitable for board-to-board connection.
- Features guide ribs to prevent incorrect insertion and twisting during mating.
- Suitable for a wide temperature range from -30°C to 85°C.
- Male contact gender with straight orientation for secure connection integrity.
- Ideal for portable devices, digital cameras, LCD displays, car navigation, and measurement applications.
Product Description
Hirose DF11 Series PCB Socket Connector DF11 is a 2.00 mm pitch, 24-contact, 2-row connector designed for straight through-hole PCB mounting applications. It features a compact double-row design with a housing depth of less than 5 mm, allowing efficient use of PCB space by providing double-row contact density in an otherwise single-row footprint.
The connector housing is made from durable polyamide, while the contacts are brass plated with tin to ensure robust electrical connection and corrosion resistance. It supports a voltage of 250V and a current rating of 2A, making it suitable for various board-to-board electronic applications.
Guided ribs on the housing help prevent incorrect mating and twisting, improving assembly reliability. The connector offers a broad temperature operating range from -30°C to 85°C, ensuring stable performance in diverse environments.
These PCB sockets are widely used in portable electronic devices, digital imaging equipment, car navigation systems, access control units, and measurement devices where compact, reliable board interconnect solutions are critical.
Available in through-hole mounting style with male contact gender and a straight orientation to accommodate precise PCB layouts and manufacturing processes. Manufactured in Malaysia, the DF11 Series offers dependable performance for industrial, electronics manufacturing, and other technical sectors.
Compact double row space-saving design with less than 5 mm depth. Polyamide housing with brass tin-plated contacts for durability. Rated for 250V and 2A suitable for board-to-board connections. Guide ribs prevent incorrect insertion and twisting on mating.
Wide operating temperature range from -30°C to 85°C. Straight orientation and male contacts ensure secure fit. Applications include portable devices, cameras, and automotive electronics. Explore more connectors and PCB Socket solutions in the Electronics Components category at EnvMart for your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of the Hirose DF11 Series PCB socket connector is 2.00 mm.
It is rated for a voltage of 250V and a current capacity of 2A, making it suitable for board-to-board connections.
The housing is made from polyamide, and the contacts are brass plated with tin for reliable conductivity.
This model operates within a temperature range of -30°C to 85°C.
The Hirose DF11 Series connector features 24 contacts arranged in a 2-row configuration.
It uses a through-hole mounting style, suitable for PCB applications.
The connector has a straight orientation with male contacts for secure connection integrity.
This model is ideal for portable devices, digital cameras, LCD displays, car navigation systems, and measurement applications.
Yes, it includes guide ribs to prevent incorrect insertion and twisting during mating, improving assembly reliability.
It is manufactured in Malaysia.
The Hirose DF11 Series connector supports solder termination type.
The housing depth is less than 5 mm, allowing for space-saving on PCBs.
