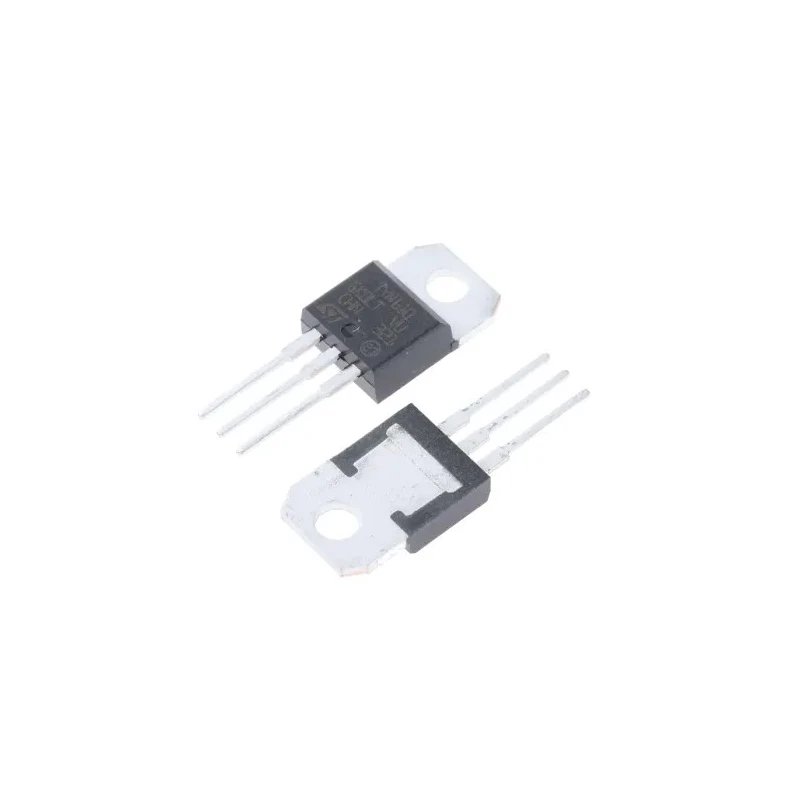

STMicroelectronics Thyristor SCR 600 V 6.4 A Surge Current 105 A TO-220 Package TYN610RG

STMicroelectronics TYN610RG is a silicon controlled rectifier (SCR) thyristor designed for power switching applications requiring medium voltage and current ratings. It features a repetitive peak reverse voltage of 600 V and a rated average on-state current of 6.4 A, making it suitable for industrial, automotive, and consumer electronics applications where reliable power control and switching are critical.

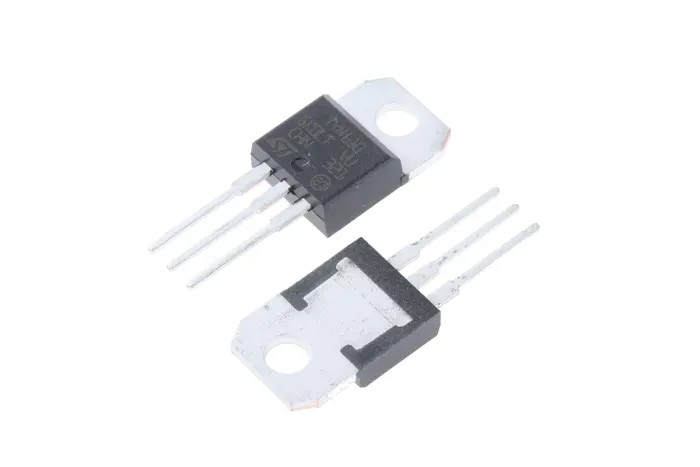

The device is housed in a TO-220 package enabling easy through-hole mounting and good thermal dissipation. The thyristor offers a surge current rating of 105 A, allowing it to handle temporary overload conditions without damage. Furthermore, it has a maximum gate trigger current of 15 mA enabling sensitive trigger operation with low gate currents.

The operating temperature range from -40°C to 125°C supports deployment in harsh industrial environments, including HVAC systems, motor controls, and power supplies. The peak on-state voltage is low at 1.6 V which enhances switching efficiency and reduces power loss.

This 10 A SCR series thyristor has a maximum holding current of 30 mA ensuring stable operation once triggered. Its 3-pin configuration complies with standard thyristor connections used in discrete semiconductor circuits.

Rated average on-state current of 6.4 A for moderate power handling. Surge current rating of 105 A for transient overload protection. TO-220 package for reliable through-hole mounting and heat dissipation. Maximum gate trigger current 15 mA for sensitive gate triggering.

Wide operating temperature range of -40°C to 125°C for harsh environment use. Low peak on-state voltage of 1.6 V to minimize conduction losses. Maximum holding current of 30 mA to ensure solid latching. Standard 3-pin pin count for integration into thyristor circuits.

These characteristics make the TYN610RG an ideal choice for industrial power control, motor speed regulation, and switching applications in electrical systems. Its robust specifications ensure dependable operation in a wide array of applications including manufacturing equipment control, power supplies, and automation systems.
