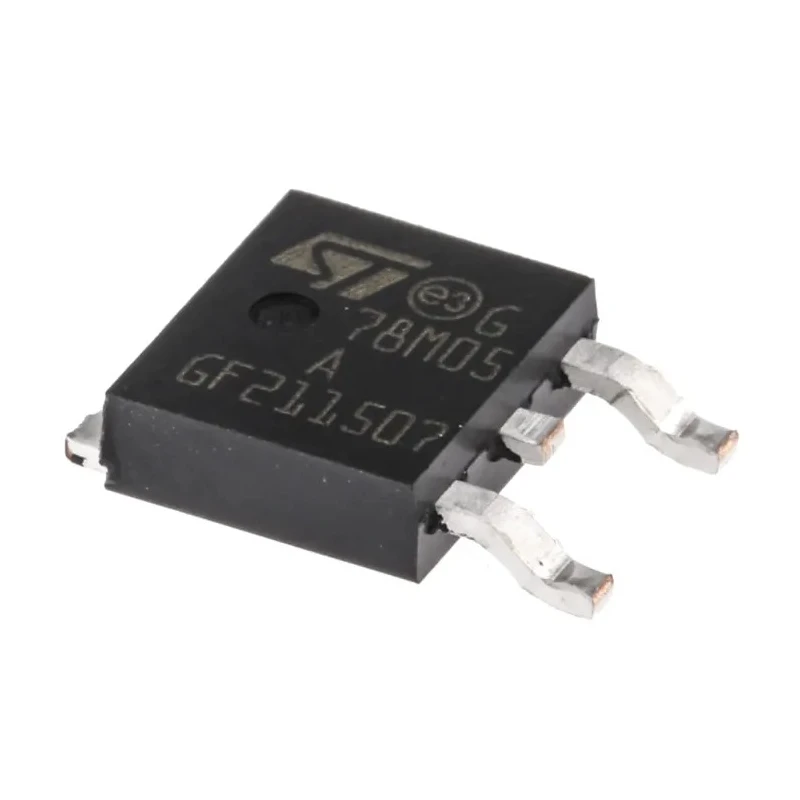

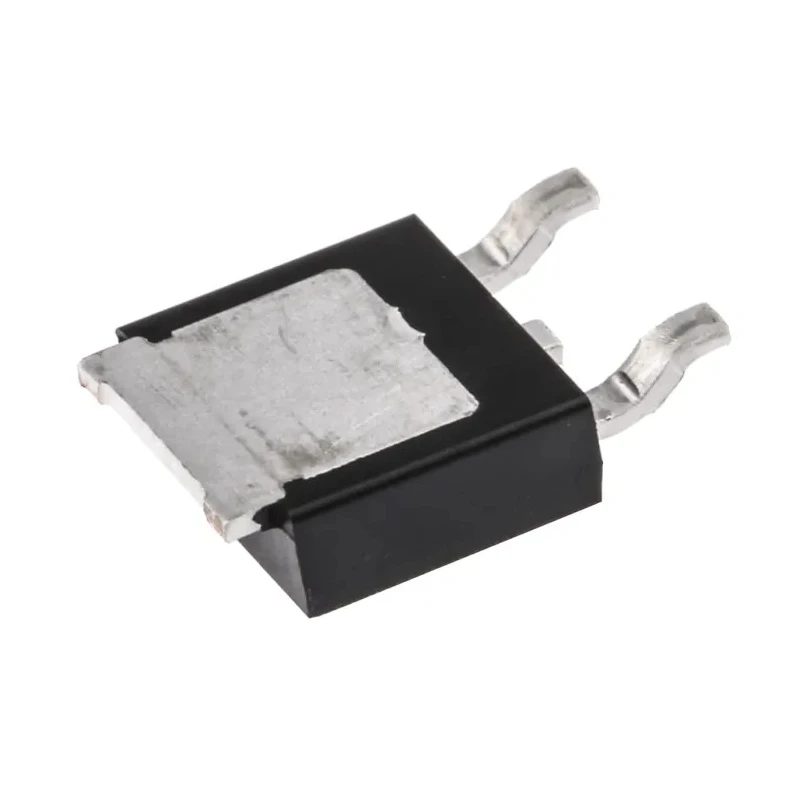

STMicroelectronics Linear Voltage Regulator 35V 3-Pin Surface Mount Positive Polarity L78M05ACDT-TR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators STMicroelectronics L78M05ACDT-TR, Voltage Regulator 35V 3-Pin RS Stoc |
| Brand | STMicroelectronics |
| Height | 2.4mm |
| Length | 6.6mm |
| Model | L78M05ACDT-TR |
| Width | 6.2mm |
| Mount Type | Surface |
| Series | L78Mxx |
| Maximum Operating Temperature | 125°C |
| Polarity | Positive |
| Maximum Input Voltage | 35V |
| Quiescent Current | 6mA |
| Pin Count | 3 |
Key Features
- Provides fixed positive polarity voltage output suitable for various electronic applications.
- Compact dimensions measuring 6.6mm length, 6.2mm width, and 2.4mm height allow efficient surface mounting.
- Quiescent current of 6mA ensures low power consumption during operation.
- Incorporates internal current limiting, thermal shutdown, and safe operating area protection for enhanced durability.
- Suitable for local on-card regulation and power distribution in electronic devices.
- Operates reliably up to a maximum temperature of 125°C ensuring robust performance.
- Standard 3-pin package supporting easy integration on printed circuit boards.
- No external components needed unless output voltage/current customization is required.
Product Description
STMicroelectronics L78M05ACDT-TR is a positive linear voltage regulator IC designed specifically for electronic components requiring regulated fixed voltage outputs. It operates with a maximum input voltage of 35 volts and is housed in a compact 3-pin surface mount package, measuring 6.6mm by 6.2mm by 2.4mm. This regulator features a quiescent current of 6mA, ensuring minimal energy consumption during operation.
The device belongs to the L78Mxx series known for reliable and efficient voltage regulation. It includes integral protections such as current limiting, thermal shutdown, and safe operating area protection to prevent damage during abnormal conditions. These protections enhance the durability and longevity of the voltage regulator when used in industrial, laboratory, and consumer electronics applications.
The L78M05ACDT-TR is ideal for local on-card regulation and power distribution tasks within electronic devices and systems. It requires no additional external components unless adjustments to the voltage or current output are necessary.
Its operation temperature tolerance up to 125 degrees Celsius ensures it performs effectively in demanding environments. The positive polarity and surface mount design facilitate straightforward integration into PCB layouts, making it suitable for modern electronic equipment manufacturing.
Fixed positive voltage output for stable power supply. Compact surface mount 3-pin package for space-efficient PCB design. Includes thermal and current protection mechanisms for safe operation. Low quiescent current reduces overall power usage.
Supports a maximum input voltage of 35 volts. Functionality stable up to 125°C operating temperatures. Widely applicable in industrial, electronic, and power management solutions. No need for external components unless output modification is desired.
This voltage regulator is part of STMicroelectronics' extensive product line, designed to help engineers and designers create efficient power management systems. Explore more from STMicroelectronics Voltage Regulator products at EnvMart to find solutions tailored to diverse voltage regulation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for this model is 35 volts.
It measures 6.6mm in length, 6.2mm in width, and 2.4mm in height.
The quiescent current is 6mA, ensuring low power consumption during operation.
It operates reliably up to a maximum temperature of 125°C.
No external components are needed unless output voltage or current customization is required.
It comes in a compact 3-pin surface mount package.
It includes internal current limiting, thermal shutdown, and safe operating area protection.
It is suitable for local on-card regulation and power distribution in electronic devices.
This model belongs to the L78Mxx series of voltage regulators.
This voltage regulator provides a fixed positive polarity voltage output.
The low quiescent current of 6mA reduces overall power usage during operation.
The country of origin for this model is India.
