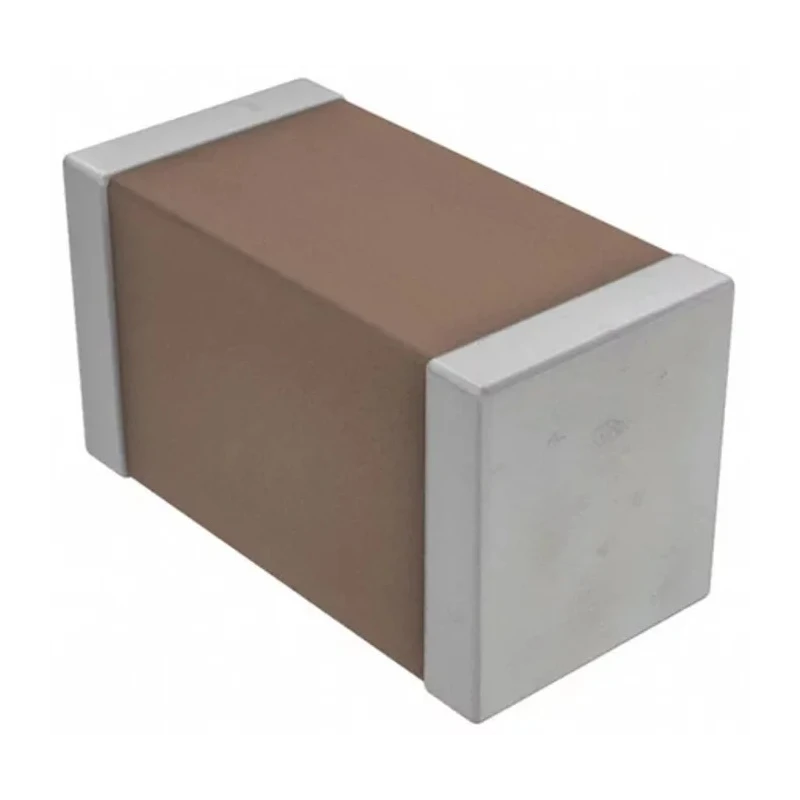

TDK Multilayer Ceramic Capacitor 470nF, 50V DC, ±10% Tolerance, Surface Mount, Model CGA3E3X5R1H474K080AB

Free Delivery in India | Lowest Global Shipping Charges

TDK Multilayer Ceramic Capacitor 470nF, 50V DC, ±10% Tolerance, Surface Mount, Model CGA3E3X5R1H474K080AB



Category Multilayer Ceramic Capacitor Brand TDK Condition New

Specifications

Country of Origin	Japan
Voltage	50V dc
Brand	TDK
Height	0.8mm
Length	1.6mm
Model	CGA3E3X5R1H474K080AB
Packaging	Tape & Reel
Width	0.8mm
Mount Type	Surface
Series	CGA
Termination Type	Solder
Maximum Operating Temperature	85°C
Tolerance	±10 %
Capacitance	470nF
Minimum Operating Temperature	-55°C
Package/Case	0603
Dielectric	X5R
Automotive Standard	AEC-Q200
Suppression Class	Class II
TDK 470nF MLCC, 50V dc V, ±10% , SMDBrand	TDK

Key Features

Capacitor utilizes X5R dielectric for stable performance across temperatures.
Component sized in 0603 package dimensions (1.6mm x 0.8mm x 0.8mm).
Features low equivalent series resistance (ESR) and low equivalent series inductance (ESL).
Qualified to automotive standard AEC-Q200 ensuring reliability in harsh environments.
Operating temperature range from -55°C to 85°C for versatile applications.
Compatible with automatic high accuracy mounting processes.
Suitable for automotive battery line smoothing and sensor modules.
Ideal for applications such as engine control units, anti-lock brake systems, and infotainment systems.

Product Description

TDK CGA3E3X5R1H474K080AB model is a Multilayer Ceramic Capacitor designed for surface mounting, providing 470nF capacitance with a rated voltage of 50V DC and ±10% tolerance. Manufactured in Japan, it belongs to the CGA series featuring an X5R dielectric that balances capacitance stability and temperature tolerance.

These capacitors feature advanced technology incorporating multiple thin ceramic dielectric layers that enable high capacitance in a small 0603 package measuring 1.6mm length, 0.8mm width, and 0.8mm height. The low equivalent series resistance (ESR) ensures minimal heat generation and supports high ripple current applications.

This component is AEC-Q200 qualified, making it suitable for demanding automotive environments such as battery line smoothing, sensor modules, engine control units, anti-lock brake systems, and infotainment units. It is also applicable for smart meters, solar inverters, smart grids, and AC-DC battery chargers.

Operating temperature ranges from -55°C minimum to a maximum of 85°C, permitting use in diverse industrial and automotive applications. The solder termination and tape & reel packaging facilitate streamlined automated assembly on printed circuit boards.

Compact 0603 surface mount package for high-density PCB integration. Reliable X5R dielectric suitable for automotive and industrial applications. Compatible with automated high-precision mounting for production efficiency.

AEC-Q200 qualification ensures strict automotive reliability standards. Low ESR and ESL enhance performance in high frequency and ripple current scenarios. Wide operating temperature range supports harsh environmental conditions.

Tape & Reel supply format aids in manufacturing ease and inventory management. Manufactured in Japan ensuring consistent quality and process maturity.

This TDK Multilayer Ceramic Capacitor is an ideal choice for engineers and manufacturers designing automotive, industrial, and consumer electronics requiring compact, reliable passive components. Explore EnvMart’s Electronics Components category for more capacitors and MLCCs for various performance needs.
