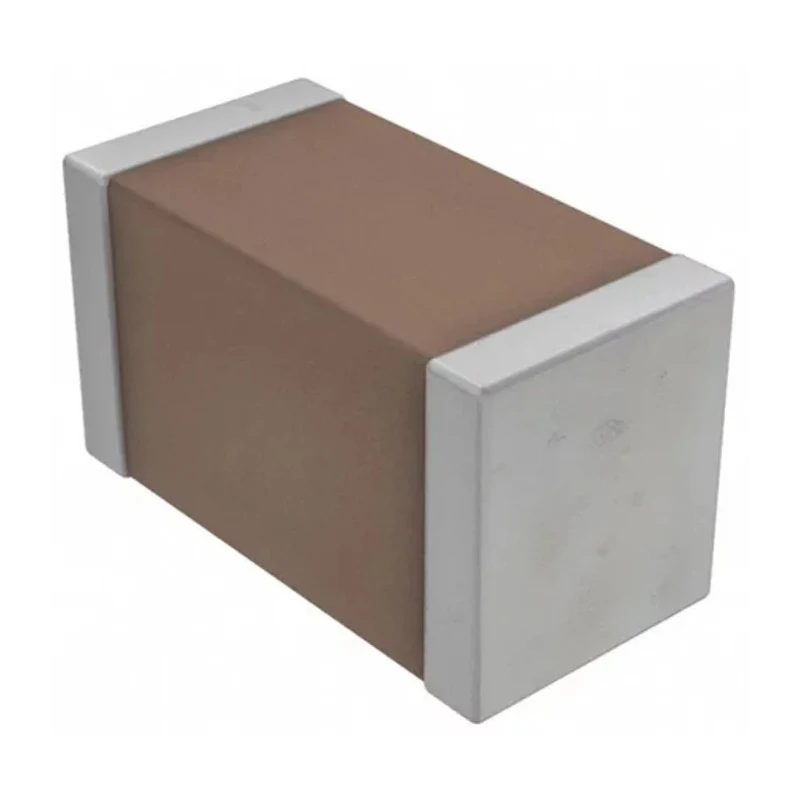

TDK 330 nF Multilayer Ceramic Capacitor, 50V DC, ±10 % Tolerance, Surface Mount, X5R Dielectric CGA3E3X5R1H334K080AB

Free Delivery in India | Lowest Global Shipping Charges

TDK 330 nF Multilayer Ceramic Capacitor, 50V DC, ±10 % Tolerance, Surface Mount, X5R Dielectric CGA3E3X5R1H334K080AB



Category Multilayer Ceramic Capacitor Brand TDK Condition New

Specifications

Country of Origin	Japan
Voltage	50V dc
Brand	TDK
Height	0.8mm
Length	1.6mm
Model	CGA3E3X5R1H334K080AB
Packaging	Tape & Reel
Width	0.8mm
Mount Type	Surface
Series	CGA
Termination Type	Solder
Maximum Operating Temperature	85°C
Tolerance	±10 %
Capacitance	330nF
Minimum Operating Temperature	-55°C
Package/Case	0603
Dielectric	X5R
Automotive Standard	AEC-Q200
Suppression Class	Class II

Key Features

Capacitance of 330 nF ensuring precise signal filtering and energy storage.
X5R dielectric material providing stable performance over temperature variations.
Compact 0603 package size with dimensions 1.6mm length, 0.8mm width and height.
Tape and reel packaging ideal for automatic PCB assembly processes.
AEC-Q200 qualified ensuring suitability for automotive applications.
Operating temperature range from -55°C to 85°C for reliability in harsh environments.
Low equivalent series inductance (ESL) and excellent frequency characteristics.
Solder termination type for secure electrical and mechanical connection.

Product Description

TDK CGA3E3X5R1H334K080AB is a high precision 330 nF multilayer ceramic capacitor designed for surface mounting in electronic circuits requiring stability and reliability. Operating at 50V DC with a tolerance of ±10 %, this MLCC is built with X5R dielectric, which offers excellent temperature characteristics and frequency response suitable for various industrial and automotive applications.

This capacitor is housed in a compact 0603 package measuring 1.6 mm in length, 0.8 mm in width, and 0.8 mm in height, making it ideal for space-constrained PCB designs. It conforms to automotive industry standard AEC-Q200, assuring its performance in critical automotive control and infotainment systems.

The capacitor features low equivalent series inductance and low ESR, minimizing self-heating and ripple to enhance circuit efficiency and longevity. Its tape and reel packaging supports high-volume automated assembly processes, ensuring consistency and ease of manufacture.

Typical applications include automotive battery line smoothing, sensor modules, engine control units, smart meters, solar inverters, AC-DC battery chargers, and other precision electronic devices used in industrial, automotive, and commercial environments.

Capacitance: 330 nF for effective signal filtering and storage. Voltage Rating: 50V DC for electronic circuit protection. Dielectric: X5R for stable performance over wide temperature ranges. Package: 0603 size, surface mount type for modern PCB designs.

Automotive grade AEC-Q200 qualification ensuring reliable operation. Operating Temperature Range: -55°C to 85°C suitable for harsh conditions. Tape & Reel packaging for automated assembly efficiency. Low ESR and ESL for superior frequency response and power handling.

Choose TDK CGA3E3X5R1H334K080AB for high-quality multilayer ceramic capacitor applications in electronics, automotive systems, manufacturing, and industrial equipment. Explore more Multilayer Ceramic Capacitors and related components in EnvMart's comprehensive electronics category.
