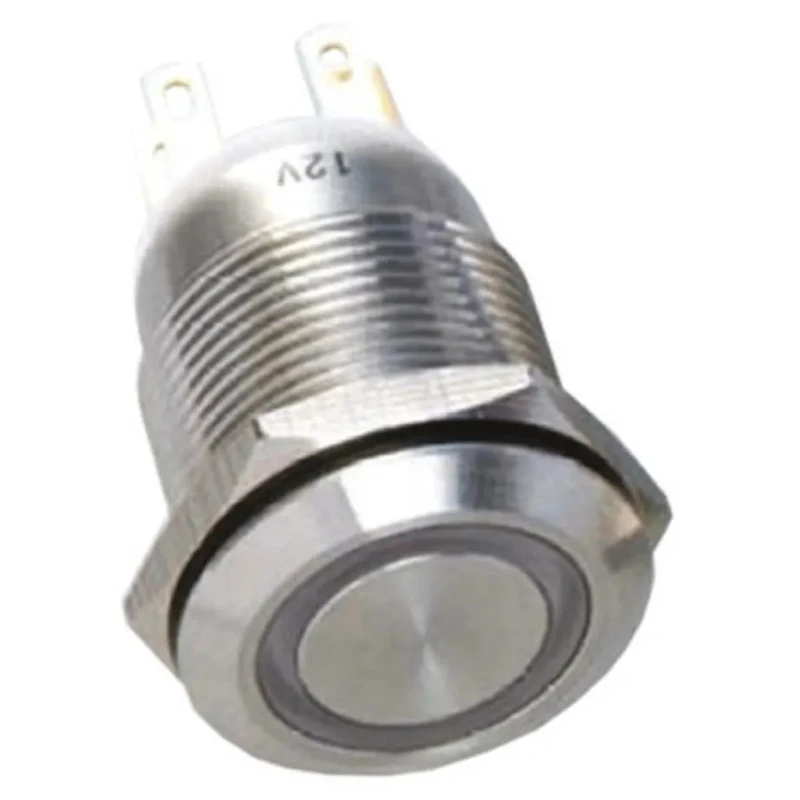

EOZ R Series Illuminated Push Button Switch Panel Mount 19.2 mm Cutout SPDT Blue LED IP65 250 V ac R19FFSSPAGRB6
Specifications
| Country of Origin | France |
|---|---|
| Brand | EOZ |
| Model | R19FFSSPAGRB6 |
| IP Rating | IP65 |
| Mount Type | Panel |
| Series | R |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPDT |
| Switch Configuration | 1 NO/1 NC |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 19.2 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| LED Colour | Blue |
| Switch Operation | Momentary |
| Actuator Colour | Silver |
| Actuator Style | Button |
| Switch Contact Current | 5A |
| Contact AC Voltage | 250V ac |
Key Features
- Vandal resistant with IK09 impact protection against 10 joules impact.
- Sealed to IP65 for dust-tight and low pressure water jets protection.
- Illuminated with blue LED for clear visual indication.
- Panel mount design with a 19.2 mm cutout dimension.
- Momentary switch operation with 1 NO/1 NC switch configuration.
- Solder type terminal connection for reliable wiring.
- Suitable for industrial, automation, and public access control applications.
- Operates reliably between -20°C to 55°C ambient temperature.
Product Description
EOZ R19FFSSPAGRB6 illuminated push button switch is a high-quality momentary switch designed for panel mounting with a 19.2 mm cutout. It features an SPDT contact configuration and a blue LED that illuminates to indicate activation. This switch is rated IP65, offering total protection against dust ingress and protection from low pressure water jets, making it highly suitable for rugged industrial and exposed public area environments.
Manufactured to withstand tough conditions, it has IK09 impact resistance equivalent to a 5 kg mass dropped from 200 mm, ensuring vandal resistance for applications such as access control systems, machinery, kiosks, ticket machines, and vending machines. The switch’s actuator color is silver, styled as a button, and the terminal type is solder, ensuring secure and stable electrical connections.
The switch operates reliably within a temperature range of -20°C to 55°C and supports a contact AC voltage of 250 V with a switch contact current rated at 5 A. Its momentary operation mode and 1 NO/1 NC switch configuration make it adaptable for various control and signaling duties in automation, electrical panels, and manufacturing control stations.
This product is RoHS compliant and made in France. The robust design ensures a long life of service in even aggressive industrial environments and public use cases. Vandal resistant push button with IK09 impact protection.
Illuminated blue LED indication for easy status visualization. IP65 rated sealing for protection against dust and water jets. Suitable for access control and machinery equipment. Panel mount installation for easy integration.
Momentary switch operation with reliable SPDT contact configuration. Wide operating temperature range from -20°C to 55°C. Solder terminal type for secure electrical connections. Rated for 250 V AC voltage and 5 A contact current.
Explore the full range of Push Button Switches and components in the Electronics & Electricals category at EnvMart for dependable industrial and automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch requires a panel cutout size of 19.2 mm for installation.
It features an SPDT (Single Pole Double Throw) contact configuration, allowing for versatile switching applications.
The maximum operating temperature for this model is 55°C.
This switch uses a solder type terminal connection, ensuring reliable wiring.
The switch is rated IP65, providing total protection against dust ingress and protection from low pressure water jets.
The switch has a contact current rating of 5 A.
The switch features a blue LED for clear visual indication of activation.
The minimum operating temperature for this switch is -20°C.
It operates as a momentary switch, which means it only stays activated while being pressed.
The actuator style is a button, and its color is silver.
Yes, this model is RoHS compliant, meeting environmental standards for hazardous substances.
It is suitable for industrial, automation, and public access control applications, such as kiosks and vending machines.
