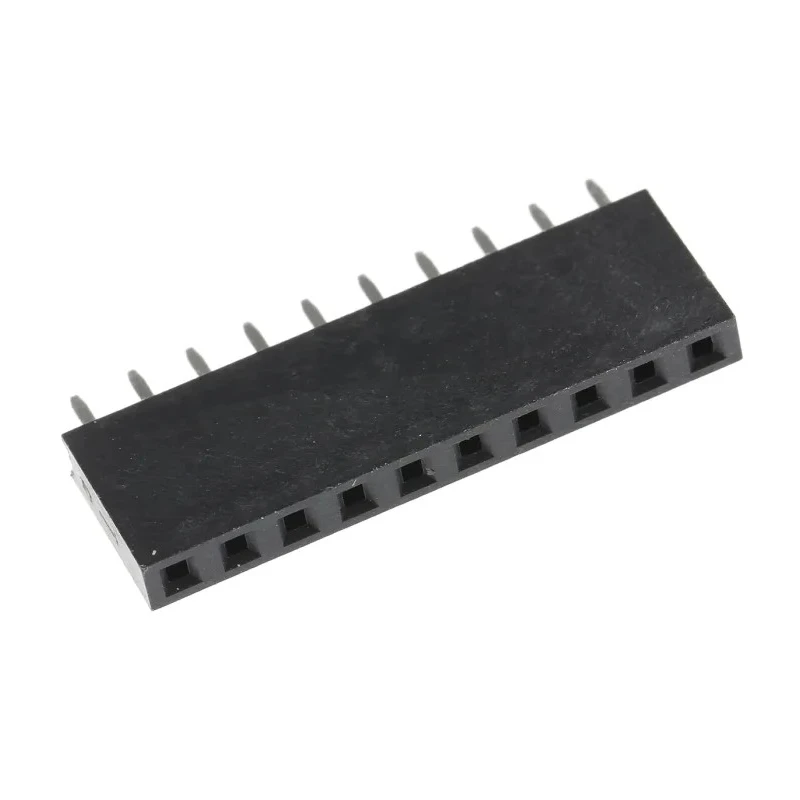

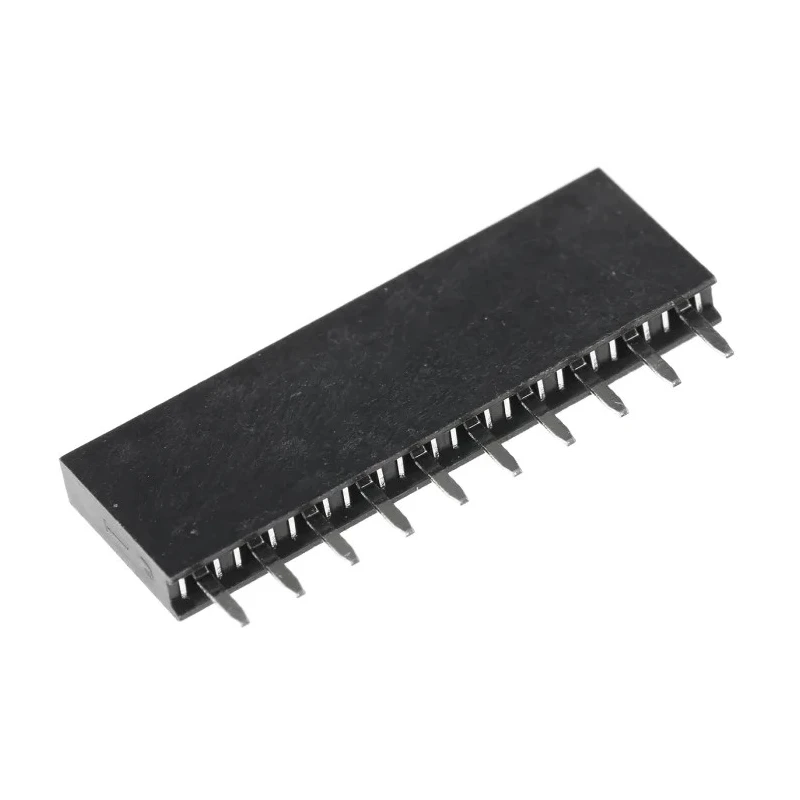

HARWIN M20 Series Straight Through Hole PCB Socket, 10-Contact, 1 Row, 2.54 mm Pitch Solder M20-7821046

HARWIN M20-7821046 is a high-quality Straight Through Hole PCB Socket featuring 10 contacts arranged in a single row with a 2.54 mm pitch designed specifically for solder termination on printed circuit boards. This socket belongs to the M20 series known for compact design and enhanced mechanical and electrical performance suitable for demanding industrial and commercial electronics applications.

The socket's housing is manufactured from UL94V-0 rated nylon, a high-temperature thermoplastic ensuring excellent resistance to heat encountered during soldering and operation. The bronze contacts with tin over nickel plating deliver low contact resistance and superior corrosion resistance, ensuring consistent electrical performance over extended service life.

Designed for through-hole mounting, this socket provides a robust mechanical connection to the PCB, ideal for board-to-board interconnectivity in motherboards, embedded computing devices, and industrial control systems. It supports a current rating of up to 12 amperes per contact and is capable of enduring up to 300 mating cycles, which enhances product durability and reliability in repetitive use scenarios.

The operating temperature range of -55°C to +105°C makes it suitable for harsh environmental conditions encountered in manufacturing, communications, and industrial monitoring equipment. Additionally, the socket complies with RoHS standards confirming the use of environmentally safe materials.

These M20 series PCB sockets are widely used across various sectors including consumer electronics, automation controls, communication devices, and industrial monitoring, providing dependable board interconnect solutions where size, performance, and reliability are critical.

Compact single row PCB socket with 10 contacts for efficient board-to-board connections. Through hole mounting ensures sturdy mechanical support and reliable solder connections. Constructed with high-temperature nylon housing rated UL94V-0 for thermal durability.

Contacts made of bronze with tin over nickel plating provide excellent electrical conductivity and corrosion resistance. Rated for up to 12A current and designed to withstand up to 300 mating operations for long-term reliability.

Operating temperature range from -55°C to 105°C suitable for various industrial environments. Compatible with embedded PCs, motherboards, and a wide range of industrial and consumer electronics applications. Meets RoHS compliance standards ensuring environmentally safe material use.
