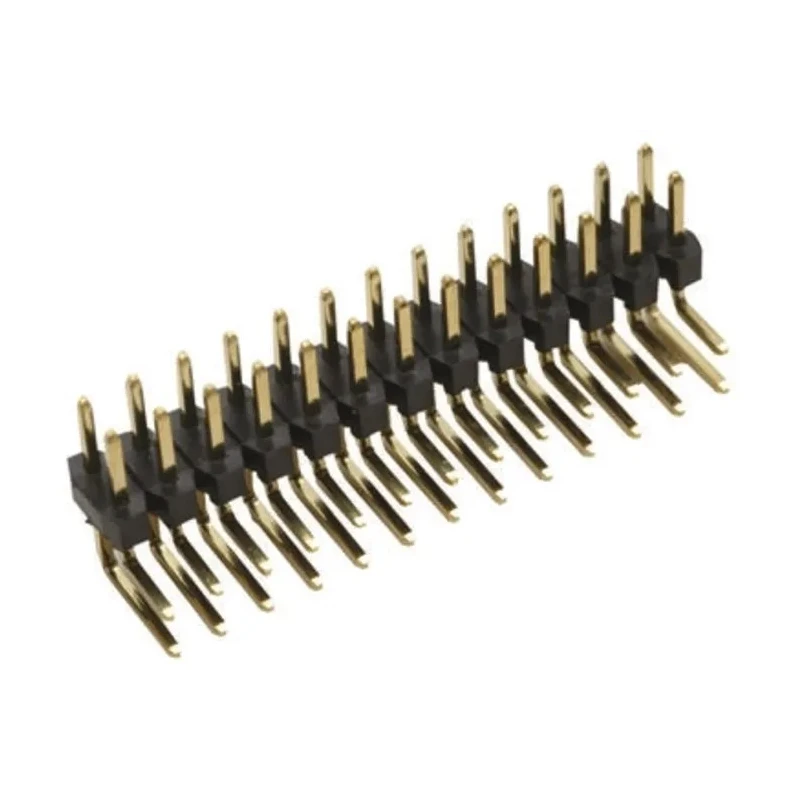

HARWIN M22 Series Right Angle Through Hole Pin Header 40 Contacts 2 mm Pitch 2 Row Unshrouded M22-2042005

HARWIN M22-2042005 is a 40 contact right angle through hole pin header featuring a 2 mm pitch and dual row configuration designed for board-to-board connector applications. The unshrouded pin header is built with phosphor bronze contacts plated in gold to ensure superior conductivity and corrosion resistance.

The connector housing is made from high temperature resistant nylon, which supports standard reflow soldering processes, making it ideal for modern PCB assembly techniques. The 3 mm tail pin length and 3.5 mm mating pin length ensure secure and reliable interconnections.

This M22 series header offers multiple configuration options, including vertical and right angle orientations, suitable for embedded systems, motherboards, and a broad range of electronics. It is commonly used in consumer electronics, communication devices, drives and control systems, industrial monitoring equipment, and personal computing hardware.

The right angle orientation facilitates compact board designs and flexible assembly layouts. The unshrouded design allows the header to be customized by cutting to size where necessary; careful handling is advised to avoid damage to pin tails during this process.

Designed for robust operation, the header performs reliably between -40°C and 105°C, suitable for demanding industrial and commercial environments. It mates seamlessly with compatible M22 series sockets, housings, and jumpers.

The pin header features a right angle orientation with through hole mount type for reliable board-to-board connections. Constructed with phosphor bronze contacts and gold plating ensuring stable electrical conductivity and corrosion resistance.

Housing is made from high temperature nylon capable of withstanding reflow soldering processes. Suitable for industrial, embedded PCs, motherboards, consumer electronics, communications, drives, and controls applications.

Operates reliably within temperature ranges from -40°C to 105°C for durable performance. Tail pin length is 3 mm with a mating pin length of 3.5 mm providing secure connector engagement. Unshrouded design allows for flexibility in custom configurations and easy cutting to size with care.

Explore more in the PCB Pin Header category for reliable connectors and components for your electronic systems at EnvMart.
