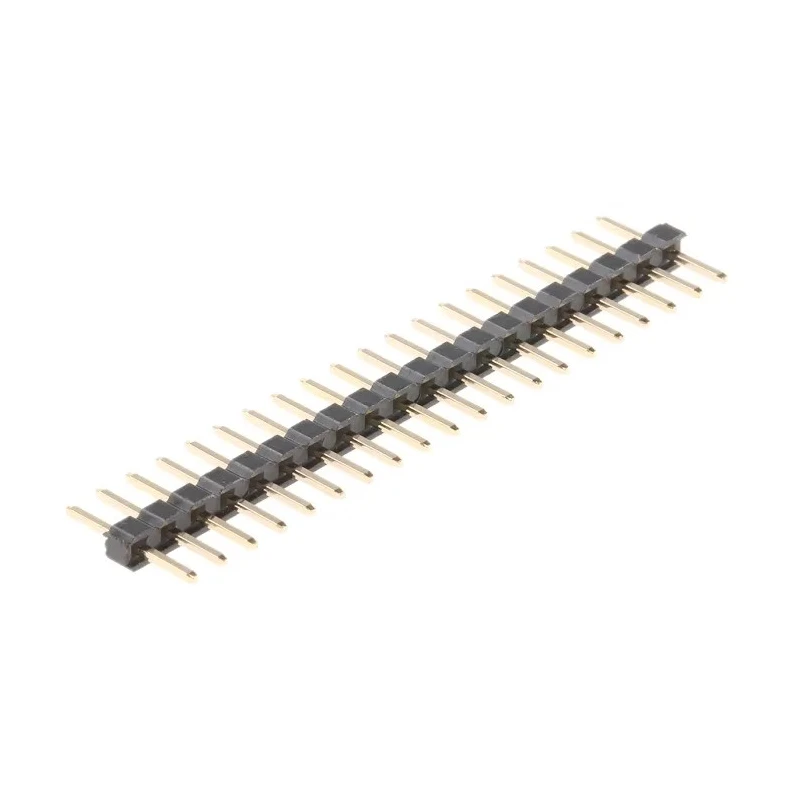

HARWIN M22 Series Straight Through Hole 20 Contact Pin Header, 2 mm Pitch, 1 Row, Unshrouded M22-2012005

HARWIN M22-2012005 is a high-quality PCB pin header connector designed for through-hole mounting applications. It features 20 male contacts arranged in a single row with a precise 2 mm pitch. The straight orientation and unshrouded design provide versatility for various board-to-board connections in electronics assemblies.

The housing is made of high-temperature nylon, capable of withstanding reflow soldering processes, ensuring durability and reliable mechanical stability. Contacts are crafted from phosphor bronze with gold plating to optimize electrical performance and corrosion resistance.

With a mating pin length of 3.5 mm and tail pin length of 3.4 mm, this header facilitates secure mating with complementary connectors. It supports a current rating of 1 ampere and performs reliably in a wide temperature range from -40°C to 105°C, suitable for demanding industrial and commercial environments.

The design incorporates castellations in the housing allowing the PCB header to be cut to smaller sizes with proper care to avoid tail damage, making it highly adaptable for custom configurations. It is a standard connector solution widely used in embedded PC systems, motherboards, consumer electronics, industrial monitoring equipment, communication devices, drives and controls, and personal computing products.

Constructed with high-temperature nylon housing to withstand reflow soldering. Gold-plated phosphor bronze contacts enhance conductivity and corrosion resistance. Mating pin length is 3.5 mm, with a tail pin length of 3.4 mm for secure connections.

Rated for 1A current and operates reliably between -40°C and 105°C. Straight orientation suitable for board-to-board applications. Unshrouded design allows flexibility for various connector configurations. Housing design with castellations enables custom cutting for size adjustments.

Ideal for embedded PCs, motherboards, consumer electronics, industrial monitoring, and communication devices. Manufactured in Taiwan, Province of China, ensuring quality standards. Compatible with the M22 series PCB sockets and jumper connectors.

This product is essential for industrial, commercial, communication, and computing electronic applications requiring reliable and customizable PCB connector solutions. Browse more PCB Pin Headers and connectors at EnvMart for diverse industrial needs.
