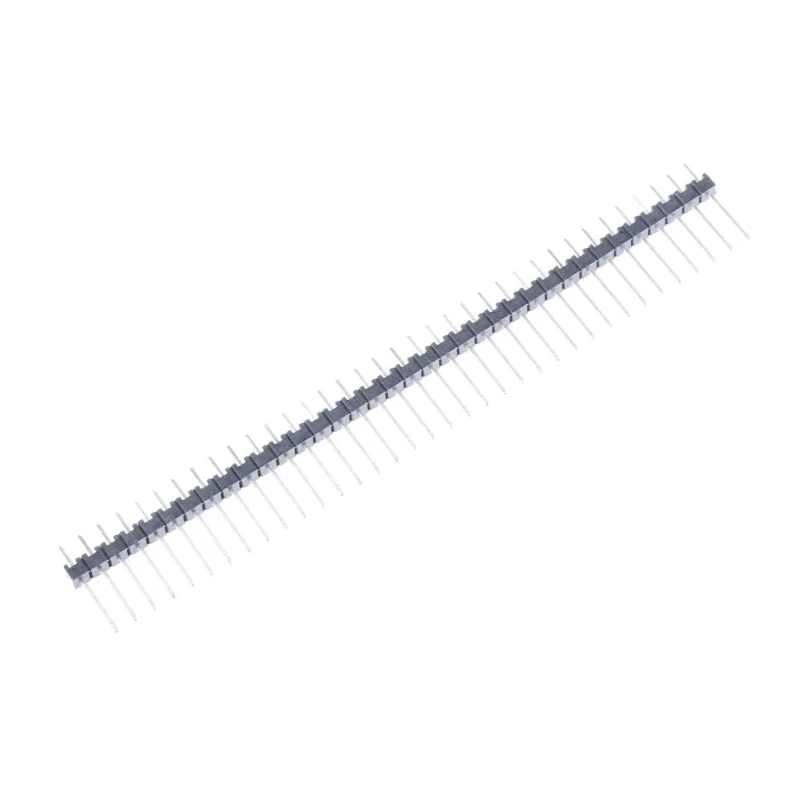

TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header, 36 Contacts, 2.54 mm Pitch, 1 Row 8-146274-6

TE Connectivity 8-146274-6 AMPMODU MOD II Series straight through hole pin header offers a robust and reliable connection solution for electronic assemblies requiring 36 contact points on a 2.54 mm pitch. This unshrouded single row pin header is made with liquid crystal polymer housing, enabling excellent durability and high-performance insulation.

Designed for through-hole mounting with solder termination, the straight orientation male pins are crafted from phosphor bronze material plated with tin to ensure conductivity and resistance to wear.

Rated for 3 amps current and operating voltage of 250 volts, it maintains reliable functionality within a temperature range from -65°C to 105°C. The breakaway design permits customization by breaking the header into smaller sizes as required, thereby enhancing assembly efficiency and reducing labor costs.

This pin header finds applications across diverse industrial fields including automotive controls, industrial and test equipment, computing, telecommunications, medical instruments, storage solutions, and appliances.

The AMPMODU Mod II interconnect system is recognized for its compact and versatile board-to-board and wire-to-board connector solutions, promoting modularity in automation and control systems.

Features a single row of 36 unshrouded male pins. Manufactured using durable liquid crystal polymer housing material. Supports a current rating of 3 amps and operates up to 250 volts. Designed for through-hole mounting with solder termination type.

Operates reliably between -65°C and 105°C temperature range. Phosphor bronze contacts plated with tin ensure dependable connectivity. Versatile use in automotive controls, industrial equipment, telecommunication, and medical instruments.

Enables quick installation with breakaway design saving labor time. Compatible with AMPMODU Mod II interconnect systems for flexible industrial applications. Explore more products from TE Connectivity and other top brands on EnvMart for your electronic component needs.
