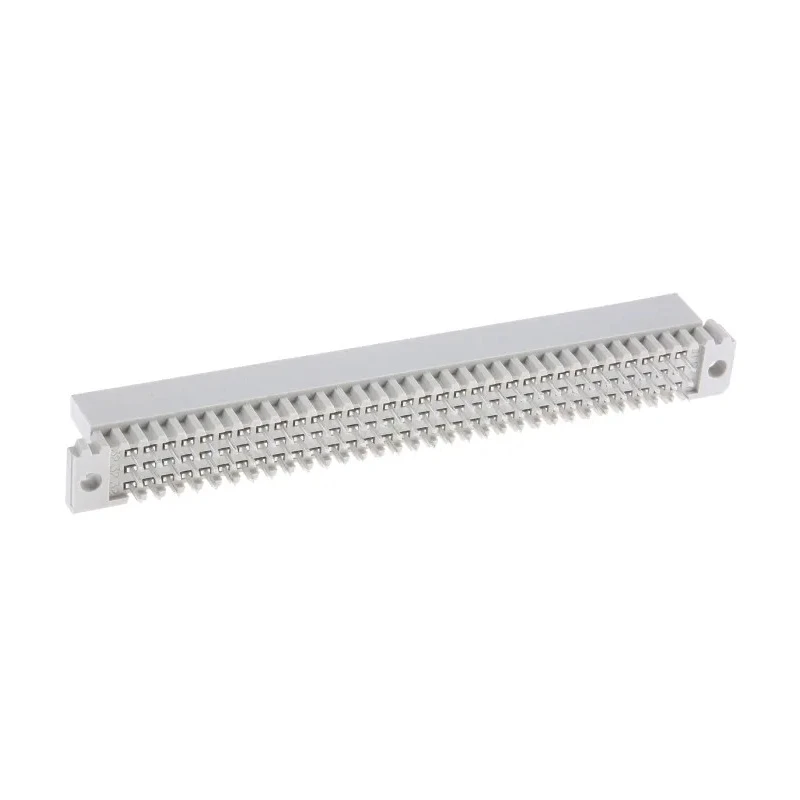

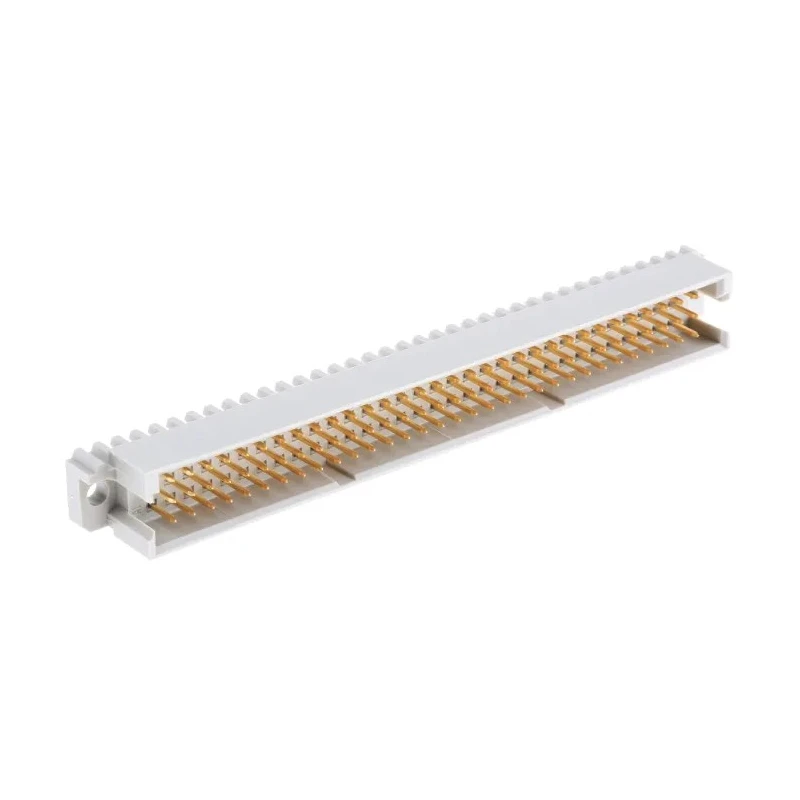

TE Connectivity Eurocard 96 Way 2.54 mm Pitch DIN 41612 Connector Through Hole Type C/2 Solder Class C2 3 Row Male 5650908-5
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1.5A |
| Mount Type | Through Hole |
| Housing Material | Polymer |
| Contact Material | Copper Alloy |
| Series | Eurocard |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | C/2 |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 3 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 96 |
| Contact Gender | Male |
| Connector Gender | Male |
| Row Loading | A/B/C |
Key Features
- Complies with DIN 41612 and IEC 60603-2 standards.
- Features a three-row, 96 contact layout with 2.54 mm pitch.
- Equipped with solder termination suitable for through hole mounting.
- Designed for operating voltage of 250 V and current rating of 1.5 A.
- Constructed using high quality copper alloy contacts plated with tin.
- Housed in flame retardant polymer material with polarization to prevent mis-mating.
- Wide operating temperature range from -55°C to 105°C.
- Compatible with various bus systems including STE Bus, CIMBUS, FUTUREBUS, and VME 64X.
Product Description
TE Connectivity 5650908-5 Eurocard DIN 41612 Connector features 96 contacts arranged in three rows with a 2.54 mm pitch, providing a reliable solution for high signal integrity applications. Designed with a male connector configuration, it utilizes solder termination through hole mounting suitable for demanding electronic component assemblies.
Constructed of high-quality copper alloy contacts plated with tin and enclosed within a flame retardant polymer housing, this connector meets DIN 41612 and IEC 60603-2 standards ensuring robust and safe operation. The polarized design prevents mis-mating, and optional boardlocks secure retention to printed circuit boards.
This Class C2 Eurocard connector operates reliably across a wide temperature range of -55°C to 105°C and supports a nominal voltage rating of 250 V and current rating of 1.5 A. It is suited for industrial control, telecommunications equipment, data centers, servers, switching systems, and modular rack applications including STE Bus, CIMBUS, FUTUREBUS, VMEBus, MULTIBUS II, NUBUS, VXi Bus, and VME 64X standards.
Complies with DIN 41612 and IEC 60603-2 standards. Features 96 contacts arranged in 3 rows with 2.54 mm pitch. Solder termination with through hole mount. Copper alloy contacts plated with tin. Flame retardant polymer housing with polarization to avoid mis-mating.
Rated for 250 V and 1.5 A current. Wide operating temperature range from -55°C to 105°C. Suitable for industrial, telecom, data center, and modular rack applications. Reliable connector with boardlock options for secure PCB retention.
This Eurocard connector by TE Connectivity is ideal for applications requiring durability, signal integrity, and robust mechanical and electrical performance in complex backplane systems and industrial control environments. Explore our wide selection of DIN 41612 Connectors to find compatible components for your designs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a three-row configuration with 96 contacts arranged in a 2.54 mm pitch layout.
It is rated for a maximum operating voltage of 250 V and a current rating of 1.5 A.
The contacts are made of copper alloy plated with tin, and the housing is constructed from flame retardant polymer material.
This connector operates reliably within a temperature range of -55°C to 105°C.
It uses solder termination suitable for through hole mounting.
Yes, it features a polarized design to prevent mis-mating during installation.
It complies with DIN 41612 and IEC 60603-2 standards.
It is compatible with various bus systems including STE Bus, CIMBUS, FUTUREBUS, and VME 64X.
The connector has a straight orientation.
It is designed for through hole mounting, making it suitable for demanding electronic assemblies.
This connector is a male type, designed for male connections.
Yes, optional boardlocks are available to secure retention to printed circuit boards.
