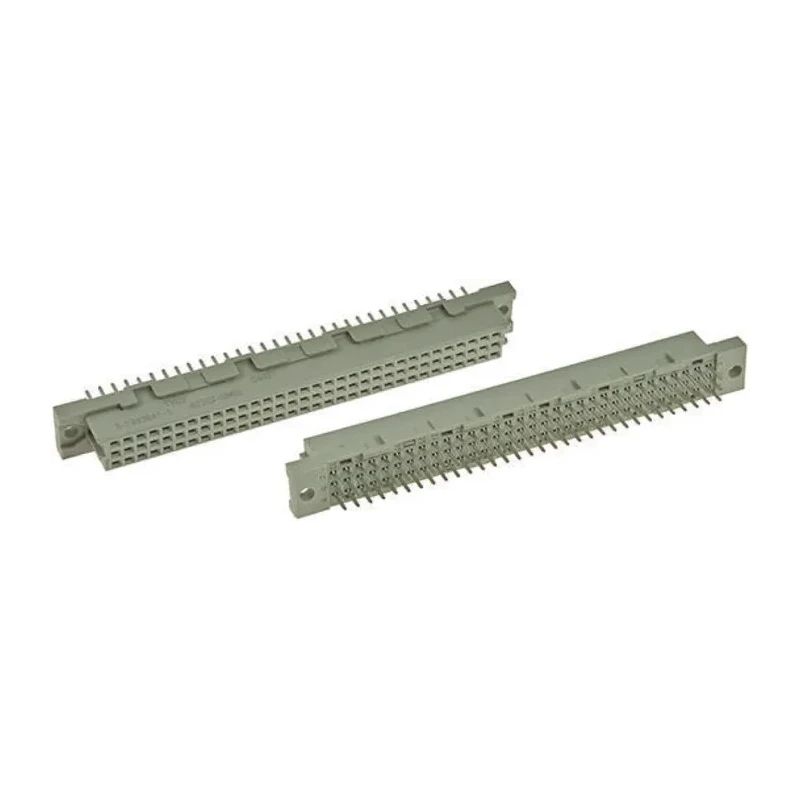

TE Connectivity Eurocard DIN 41612 Connector 48 Way 2.54 mm Pitch Through Hole 3 Row Female Type C/2 Solder Class 5650868-5
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V ac |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Mount Type | Through Hole |
| Housing Material | Polyethylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | Eurocard |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | C/2 |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 3 |
| Pitch | 2.54mm |
| Contact Plating | Gold or Palladium Nickel |
| Number of Contacts | 48 |
| Contact Gender | Female |
| Connector Gender | Female |
| Row Loading | A/B/C |
Key Features
- Compliant with DIN 41612 and IEC 60603-2 standards for high signal integrity.
- Features gold or palladium nickel contact plating for reliable conductivity.
- Suitable for high-speed industrial and telecommunications applications.
- Flame retardant polyethylene terephthalate housing with polarization to prevent mis-mating.
- Operates in temperature range from -55°C to 125°C.
- Connector orientation is right angle with C/2 sub-type and row loading A/B/C.
- Contact material made of copper alloy ensuring durability and performance.
- Designed for use in backplane, rack connectors, and modular systems.
Product Description
TE Connectivity 5650868-5 DIN 41612 Eurocard Connector is a 48 way, 2.54 mm pitch connector designed with 3 rows of female contacts and a through hole mounting system. It meets DIN 41612 and IEC 60603-2 standards, ensuring high signal integrity and reliable electrical performance suitable for demanding electronic and industrial applications.
The connector housing is made from flame retardant polyethylene terephthalate material that provides excellent durability and safety. Designed with polarization features, it prevents mis-mating during assembly. The contacts are plated with gold or palladium nickel to ensure consistent electrical conductivity and resistance to corrosion.
This Eurocard connector supports a maximum operating temperature of 125°C and a minimum of -55°C, making it suitable for harsh environmental conditions. The solder termination type is optimized for reliable soldering in through hole assembly. Its right angle orientation and C/2 sub-type layout accommodate complex board designs and high-density applications.
The copper alloy contact material enhances the durability and electrical performance of the connector. This product is ideal for use in systems including high-speed trains, industrial control DCS systems, data centres, storage servers, telecommunications equipment, backplane, motherboard assemblies, switching systems, and modular rack systems.
Meets DIN 41612 and IEC 60603-2 for quality and signal integrity. Flame retardant housing with polarization to prevent mis-mating. Gold or palladium nickel plated contacts for reliable conductivity. Through hole mount provides secure mechanical attachment.
Operates from -55°C to 125°C in harsh environments. Right angle orientation for compact PCB layouts. Supports industrial control, telecommunications, and data centre applications.
The TE Connectivity brand is synonymous with high-quality industrial connectors, providing versatile, reliable connection solutions across multiple sectors. This DIN 41612 Eurocard connector series allows for secure, high-performance interconnections in complex electronic assemblies. Browse EnvMart for more TE Connectivity products and DIN 41612 Connectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector is 2.54 mm.
It operates at a maximum temperature of 125°C.
This connector has 48 contacts.
It uses a through hole mounting type.
The housing is made from flame retardant polyethylene terephthalate, and the contacts are made of copper alloy with gold or palladium nickel plating.
The connector has a right angle orientation.
It complies with DIN 41612 and IEC 60603-2 standards for high signal integrity.
The minimum operating temperature is -55°C.
The termination type is solder.
It is suitable for high-speed industrial and telecommunications applications, including backplane and modular rack systems.
It features polarization to prevent mis-mating during assembly.
The contacts are plated with either gold or palladium nickel for reliable conductivity.
