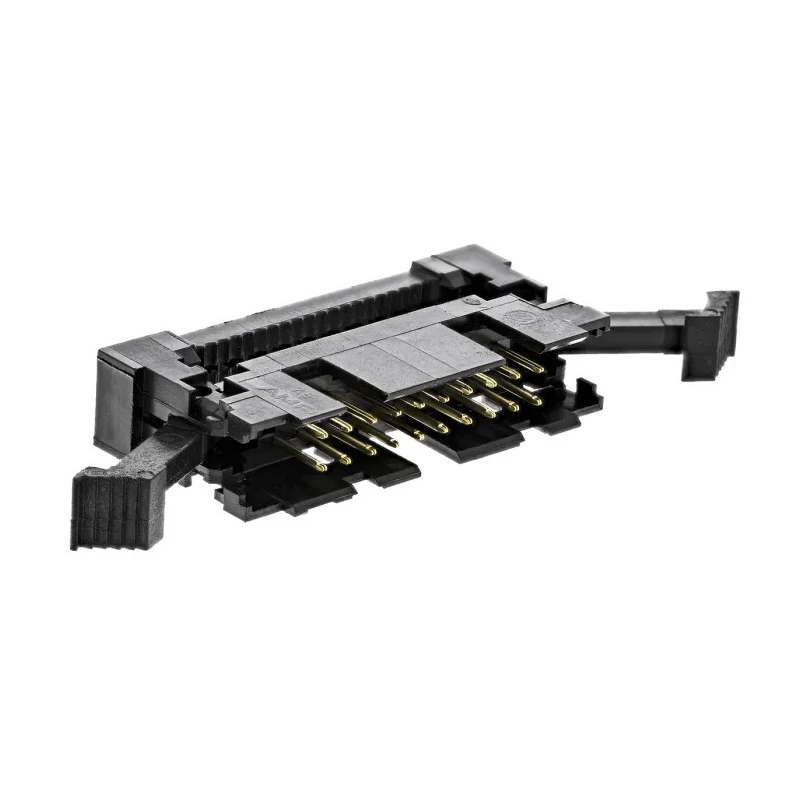

TE Connectivity 20-Way IDC Connector Male for Cable, 2 Row, 250V AC, 1A, AMP-LATCH Series 1-111504-7

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity 20-Way IDC Connector Male for Cable, 2 Row, 250V AC, 1A, AMP-LATCH Series 1-111504-7

Name: TE Connectivity 20-Way IDC Connector Male for Cable, 2 Row, 250V AC, 1A, AMP-LATCH Series 1-111504-7
Brand: TE Connectivity
SKU: 210431
Price: 22.81 USD
Availability: InStock



Category IDC Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	250V ac
Brand	TE Connectivity
Orientation	Straight
Current	1A
Mount Type	Cable
Housing Material	Thermoplastic
Contact Material	Phosphor Bronze
Series	AMP-LATCH
Termination Type	IDC
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-65°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold over Nickel
Number of Contacts	20
Contact Gender	Male
Connector Gender	Male
Shrouded/Unshrouded	Shrouded

Key Features

Features 20 contacts arranged in 2 rows for efficient wire management.
Operates at a voltage of 250V AC and current rating of 1A.
Gold over nickel contact plating ensures corrosion resistance and improved conductivity.
Constructed with phosphor bronze contacts and thermoplastic housing for durability.
Designed to operate in temperature ranges from -65°C to 105°C.
Includes AMP-LATCH series with IDC termination type for easy cable connection.
Male connector with straight orientation suitable for ribbon cable applications.
Connector is shrouded to provide protection and secure mounting on cables.

Product Description

TE Connectivity 1-111504-7 is a high-quality 20-Way IDC Connector Male for Cable, arranged in 2 rows and rated for 250V AC at 1 amp current, belonging to the AMP-LATCH series. It is designed specifically for IDC termination on ribbon cables, providing secure and reliable electrical connections in various industrial and electronic applications.

This connector features 20 gold-over-nickel plated phosphor bronze contacts housed within flame retardant UL 94V-0 rated black thermoplastic, offering excellent durability and resistance to harsh operating environments. Its shrouded design and straight orientation contribute to safe installation and protection during use.

It is engineered to operate efficiently across a wide temperature range from -65°C to 105°C, making it suitable for use in challenging conditions, including industrial electronics, manufacturing, automation, and communication equipment.

The AMP-LATCH series connectors include options for mounting ears and latches; this particular model (1-111504-7) includes long latches but without mounting ears, ensuring compatibility with various cable management systems.

The connector complies with industry standards, featuring no specific formal certifications or approvals but adheres to reliable construction specifications for industrial use. Features 20 contacts arranged in 2 rows for efficient wire management.

Operates at a voltage of 250V AC and current rating of 1A. Gold over nickel plating on contacts ensures reliable conductivity. Phosphor bronze contacts and thermoplastic housing provide durability. Temperature range suitability from -65°C to 105°C for varied environments.

AMP-LATCH series with IDC termination ensures easy cable connection. Male, shrouded, straight orientation design for ribbon cable compatibility.

This TE Connectivity IDC Connector is ideal for industrial, electronic component assembly, automation systems, and electronics manufacturing applications. EnvMart invites users to explore a wide range of compatible connectors and accessories for optimized wiring and electrical system solutions.
