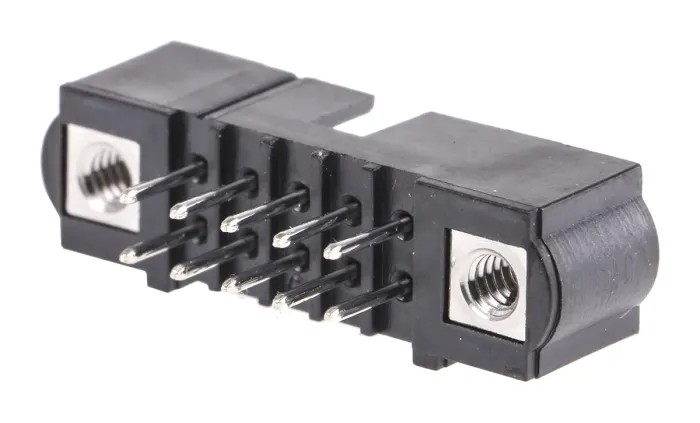

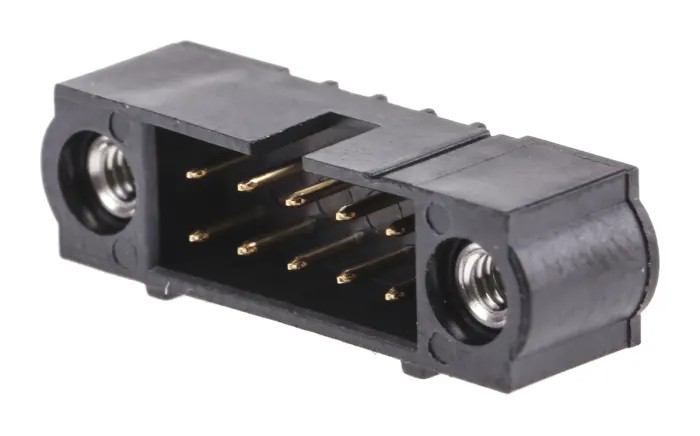

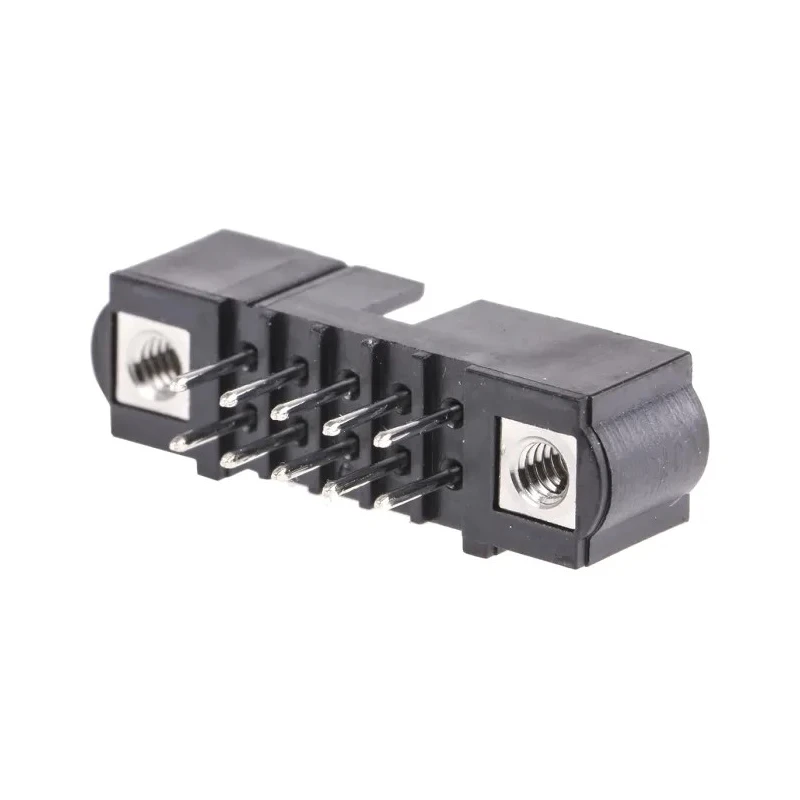

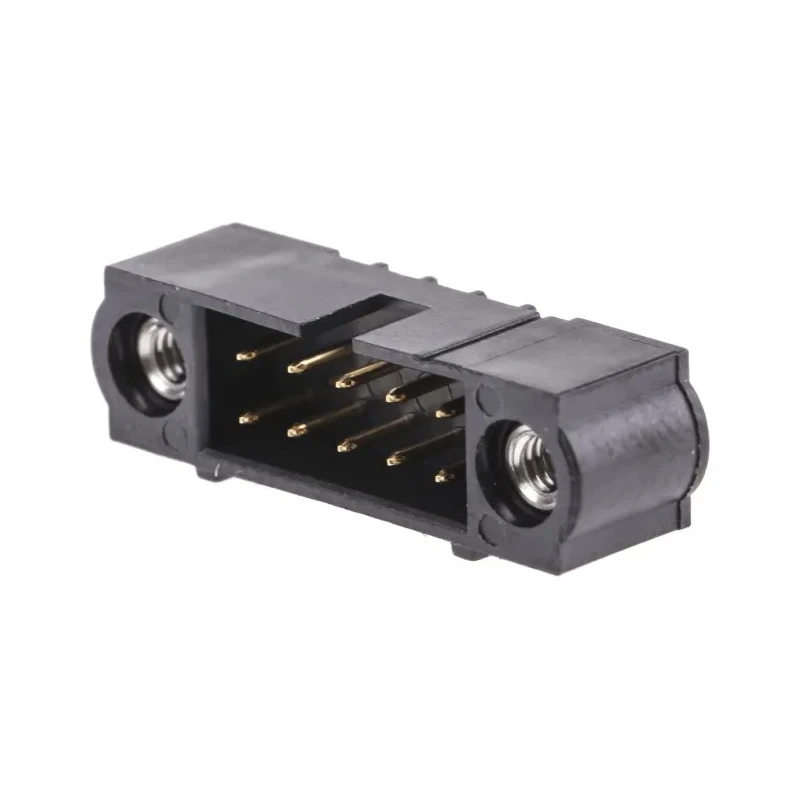

HARWIN Datamate J-Tek Series Straight Through Hole PCB Header, 10 Contacts, 2 mm Pitch, 2 Row, Shrouded M80-5001042

HARWIN M80-5001042 Datamate J-Tek Series Straight Through Hole PCB Header offers a high-quality board-to-board and wire-to-board connector solution featuring 10 gold-plated contacts arranged in 2 rows with a 2 mm pitch. The shrouded housing made from Polyphenylene Sulphide provides robust mechanical protection during mating cycles, making it ideal for industrial, electronic component assembly, aerospace, and harsh environment applications.

This PCB Header supports a maximum current of 3A and operating voltage of 120V, suitable for low power electronic circuits. The male contact with a 3 mm tail pin length is designed for through-hole solder mounting, ensuring a secure and reliable connection to printed circuit boards.

The rugged design allows operation in a wide temperature range from -55°C to 125°C, making it highly durable even in demanding conditions with vibrations and shocks. The high reliability four finger Beryllium Copper contacts ensure consistent connectivity over many mating cycles without performance degradation.

The product is compliant with recognized industry standards including BS9525-F0033, MIL C 55302, and CEC 75101-008, verifying its suitability for critical applications. Originating from the United Kingdom, this new condition component is an excellent choice for electronics manufacturing, industrial machinery, aerospace, and other sectors requiring dependable PCB connectors.

Shrouded, straight orientation housing with 2 rows and 10 male contacts. Gold-plated Phosphor Bronze contacts for corrosion resistance and conductivity. 3A current rating, 120V voltage rating for versatile use. Through-hole mount with 3 mm pin length for strong PCB attachment.

Wide operating temperature range from -55°C to 125°C for harsh environments. High-reliability four finger Beryllium Copper contacts resist vibration and shock. Complies with international standards ensuring quality and safety.

Manufactured in the United Kingdom with consistent new product quality. Explore HARWIN PCB connectors and headers at EnvMart for industrial, manufacturing, and electronic design applications.
