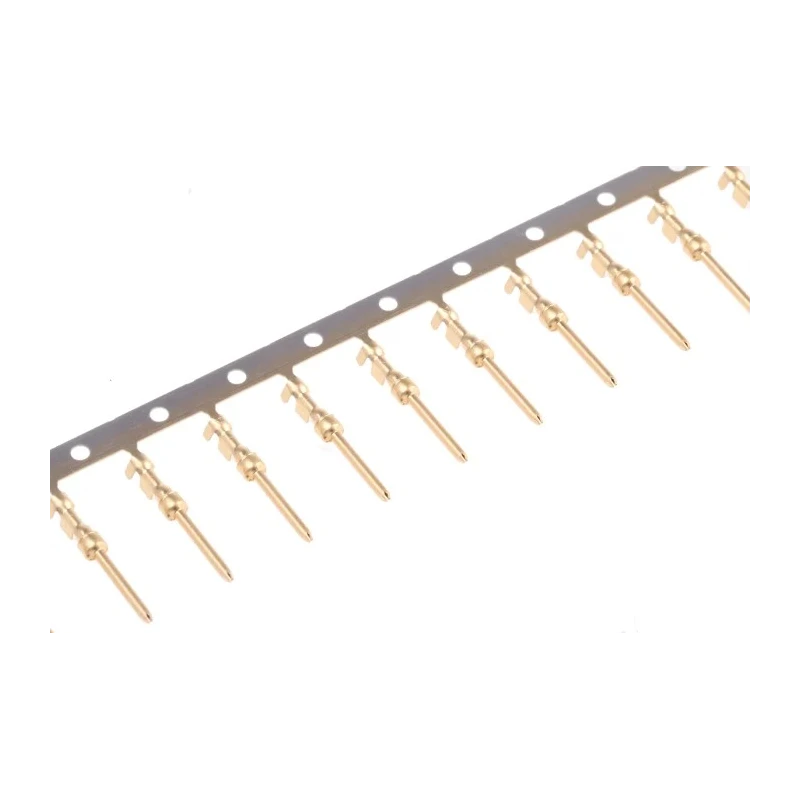

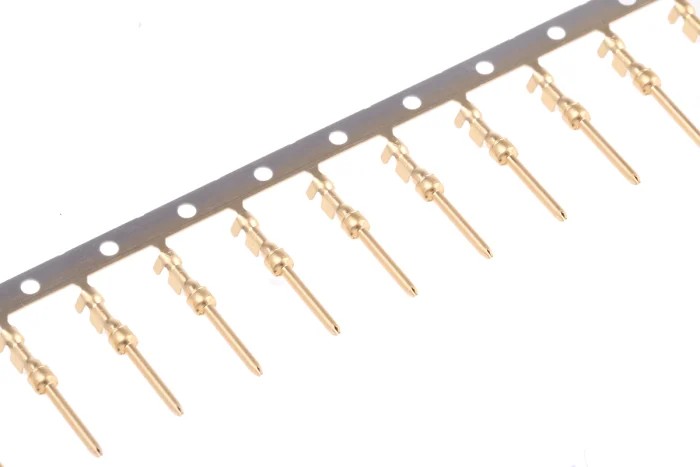

TE Connectivity AMPLIMITE HDP-20 Series Size 20 Male Crimp D-Sub Connector Contact Gold over Nickel Pin 24 AWG 66506-3

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity AMPLIMITE HDP-20 Series Size 20 Male Crimp D-Sub Connector Contact Gold over Nickel Pin 24 AWG 66506-3

Name: TE Connectivity AMPLIMITE HDP-20 Series Size 20 Male Crimp D-Sub Connector Contact Gold over Nickel Pin 24 AWG 66506-3
Brand: TE Connectivity
SKU: 210346
Price: 0.22 USD
Availability: InStock



Category Crimp Contacts Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Current	2A
Length	14.61mm
Model	66506-3
Gender	Male
Contact Material	Brass
Series	AMPLIMITE HDP-20
Termination Type	Crimp
Contact Type	Pin
Contact Plating	Gold over Nickel
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	0.6mm²
Maximum Wire Size AWG	24AWG
Contact Size	20
Maximum Contact Resistance	15mΩ
• Pin diameter	0.04 (1.02)

Key Features

Constructed with brass contact material for durability and conductivity.
Rated for a current of 2 amperes ensuring efficient signal transmission.
Gold over nickel plating provides excellent corrosion resistance and low contact resistance.
Minimum and maximum wire size supported from 0.2 mm² to 0.6 mm² (24 AWG).
Contact length of 14.61 mm suits compact D-Sub connector assemblies.
Designed for crimp termination making secure and easy installation possible.
Compatible with specialized crimp and insertion/extraction tools for optimal assembly.
Contact type is male pin, suitable for HDP-20 D-Sub connector series applications.

Product Description

TE Connectivity 66506-3 AMPLIMITE HDP-20 Series size 20 Male Crimp D-Sub Connector Contact is engineered to provide precise and reliable electrical connections within the AMPLIMITE D-Sub connector system.

The contact is crafted from high-quality brass with a gold over nickel plating finish to ensure excellent conductivity and robust corrosion resistance, critical for reliable signal integrity in industrial and electrical systems.

Rated to carry up to 2 amperes of current, the contact supports wire sizes from 0.2 mm² to 0.6 mm² (24 AWG), making it highly suitable for small to medium gauge wiring requirements in electronic assemblies.

Its 14.61 mm length and 20-size contact dimension align with the compact form factor typical of the HDP-20 D-Sub connectors, enabling efficient space utilization without sacrificing connection quality.

The crimp termination type allows for secure mechanical and electrical connection, reducing assembly time and improving production efficiency when installed with compatible crimp tools such as the TE Connectivity crimp tool model 446-816 and insertion/extraction tool 446-822.

This contact is ideal for industrial, manufacturing, telecommunications, and electronic equipment applications requiring durable, high-performance D-Sub connector interfaces. High conductivity brass contact body with gold over nickel plating.

Rated 2A current for reliable electrical performance. Supports wire sizes from 0.2 mm² to 0.6 mm² (24 AWG). Length: 14.61 mm ensuring compact connector assemblies. Male pin contact type for HDP-20 series connectors. Crimp termination for secure and efficient assembly.

Compatible with TE specialized crimp and insertion/extraction tools.

Equip your D-Sub connector assemblies with the TE Connectivity 66506-3 Crimp Contacts for enhanced durability and dependable signal transmission. Explore the full range of HDP-20 series components and related accessories at EnvMart.
