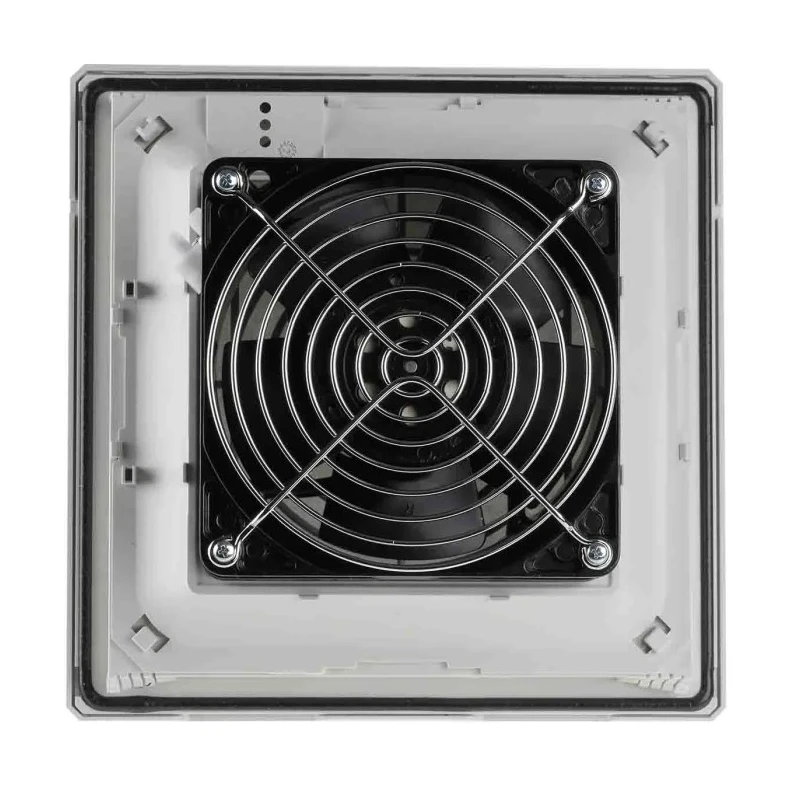

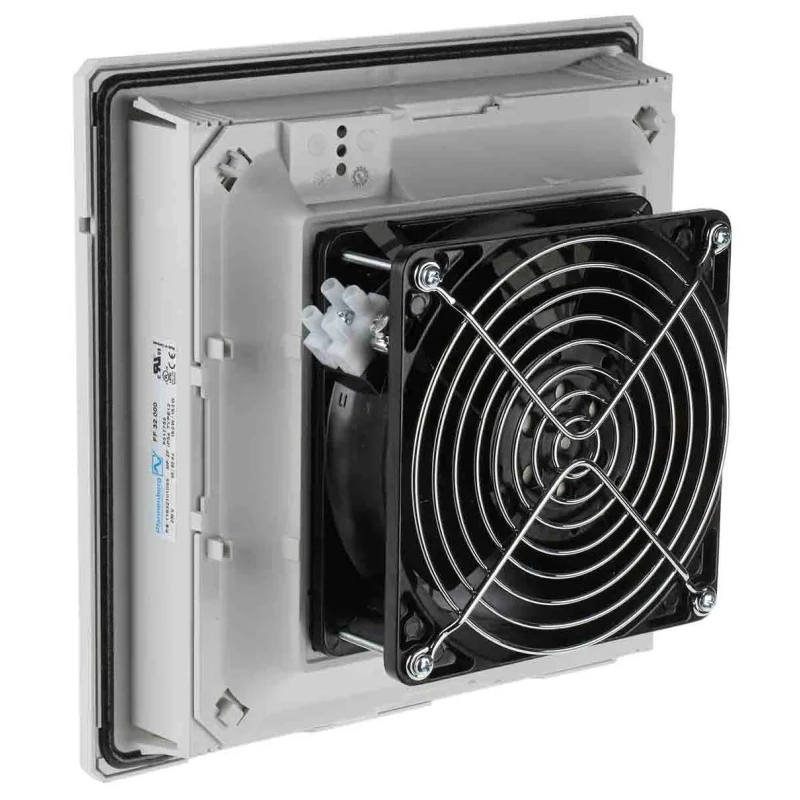

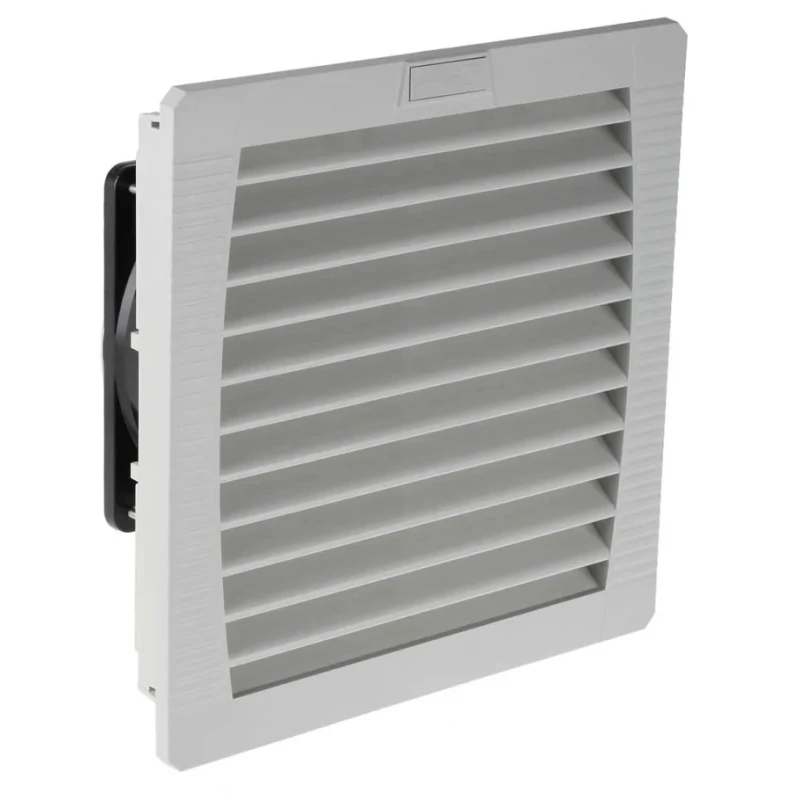

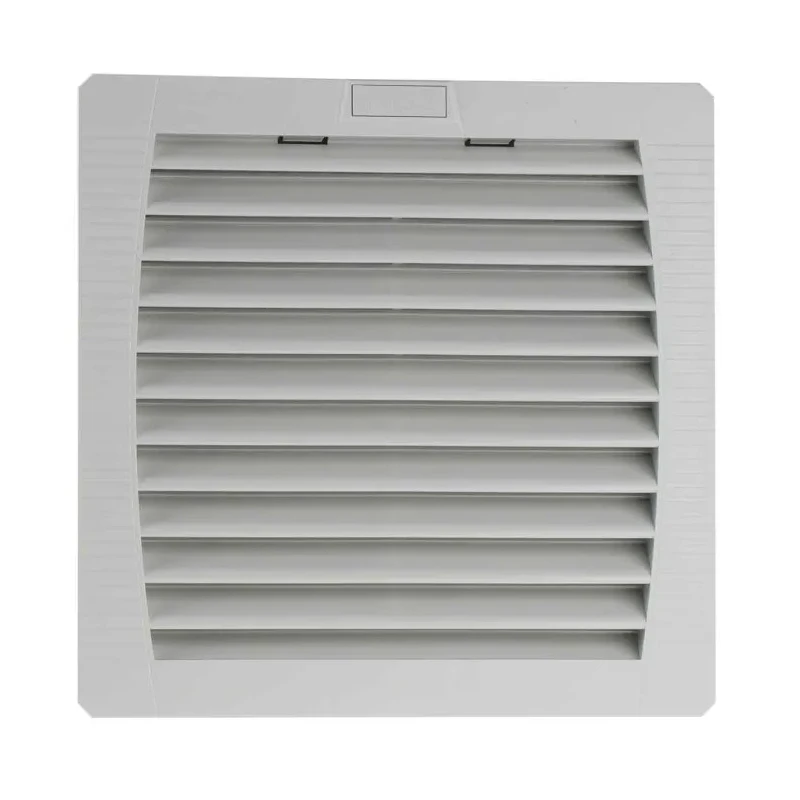

Pfannenberg PF 32.000 Series Filter Fan 230V AC 110 m³/h Filtered Airflow 178.5 m³/h Unimpeded Airflow IP54 202mm x 202mm

Free Delivery in India | Lowest Global Shipping Charges

Pfannenberg PF 32.000 Series Filter Fan 230V AC 110 m³/h Filtered Airflow 178.5 m³/h Unimpeded Airflow IP54 202mm x 202mm

Name: Pfannenberg PF 32.000 Series Filter Fan 230V AC 110 m³/h Filtered Airflow 178.5 m³/h Unimpeded Airflow IP54 202mm x 202mm
Brand: Pfannenberg
SKU: 205052
Price: 251.01 USD
Availability: InStock



Category Filter Fan Brand Pfannenberg Condition New

Specifications

Country of Origin	Germany
Brand	Pfannenberg
Colour	RAL 7035 (except Manu Part No suffix 50 : RAL 9011 / Black)
Model	IP54
IP Rating	IP54
Noise Level	40dB
Series	PF 32.000
Configuration	Flatpack
Installation Depth	87mm
Input current	180mA
Terminal type	Strip
Supply Voltage	230V ac
Bearing Type	Sleeve
Standards/Approvals	EN, cUL, RoHS, UL, ISO
AC or DC Operation	AC
Unimpeded Air Flow	178.5m³/h
Filtered Air Flow	110m³/h
Face Height	202mm
Face Width	202mm

Key Features

Provides 110 cubic meters per hour of filtered air flow at 230V AC power supply.
Unimpeded airflow rate reaches 178.5 cubic meters per hour, ensuring efficient ventilation.
Features a sleeve bearing type for reliable, durable operation.
Constructed with a flatpack configuration and strip terminal type for easy installation.
Includes patented water and dust pre-separation ensuring extended filter life and reduced maintenance.
Click and fit design enables tool-free hardware installation and filter mat changes.
Complies with EN, cUL, RoHS, UL, and ISO standards, certified for safety and quality.
Designed for reversible airflow direction to introduce or extract air as needed.

Product Description

Pfannenberg PF32000 11632101055 Filter Fan is a high-performance industrial cooling fan designed to deliver filtered air efficiently at 230V AC supply. It combines a high filtered airflow of 110 m³/h with an unimpeded airflow of 178.5 m³/h, making it suitable for ventilation and thermal management in electrical enclosures and industrial cabinets. This IP54 rated filter fan features a patented pleated fabric filter with water and dust pre-separation system, significantly extending filter life and minimizing maintenance effort.

The fan's innovative click and fit design enables hardware-free installation and easy filter mat replacement. It incorporates a sleeve bearing for prolonged reliability and uses a strip terminal for simplified wiring. The fan configuration is flatpack, with dimensions of 202mm height and width, and an installation depth of 87mm, allowing compatibility with previous generation models and competitors' apertures.

Certified with EN, cUL, RoHS, UL, and ISO standards, this filter fan ensures compliance with international quality benchmarks. The reversible airflow capability allows it to either introduce fresh air or extract warm air from enclosures, enhancing its versatility. The fan's protective coating is colored RAL 7035 (light grey), aligning with industrial aesthetic and durability requirements.

High airflow with patented water and dust pre-separation extends filter lifespan. Click and fit design for tool-free installation and filter changes. Reversible airflow function for flexible ventilation needs. Certified to multiple international safety and quality standards.

Durable sleeve bearing ensures long-term operation. Compact flatpack design fits standard apertures of previous generations. Strip terminal enables adaptable wiring with 90° position changes. Made in Germany to uphold stringent manufacturing quality.

This Pfannenberg filter fan is ideal for use in industrial, electrical, HVAC, and automation environments requiring efficient filtration and cooling of enclosure air. Its robust design and certifications make it a reliable solution for industrial air management. Explore similar Filter Fans or related industrial cooling solutions in the Industrial Supplies category at EnvMart.
