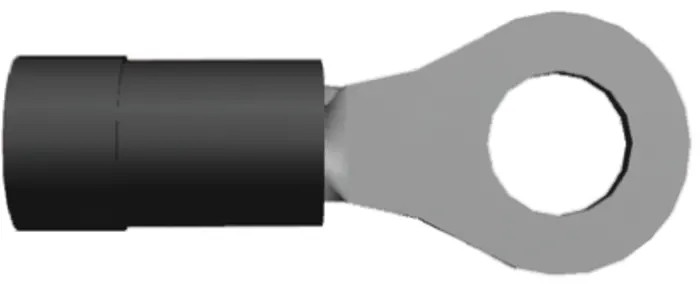

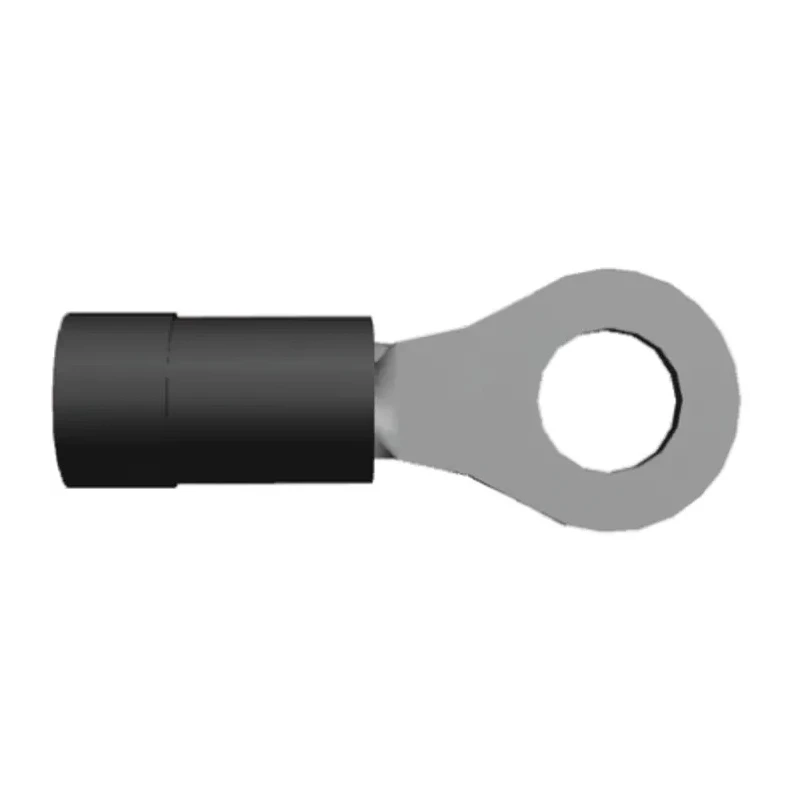

TE Connectivity PIDG Insulated Ring Terminal M6 Stud Size 16 AWG 14 AWG Wire Size Black 342063
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| THICKNESS | 0.79mm |
| Model | 342063 |
| Insulation | Insulated |
| Overall Length | 35mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1.3mm² |
| Maximum Wire Size mm² | 2mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Outer Ring Diameter | 13.5mm |
| Stud Size | M6 |
Key Features
- Constructed with high conductivity copper for optimal electrical performance.
- Features a nylon insulated colored sleeve for easy wire size identification and insulation protection.
- Designed with serrations inside the barrel to ensure maximum contact and tensile strength after crimping.
- Suitable for use in instruments, control panels, power supplies, transportation, aerospace, and other industrial applications.
- Outer ring diameter measures 13.5 mm, with overall terminal length of 35 mm for compact installation.
- Contact plating is tin to resist corrosion and maintain conductivity.
- Capable of operating at maximum temperatures up to 105°C for durability in harsh environments.
- The funnelled wire entry allows fast wire insertion and prevents wire strand fraying.
Product Description
TE Connectivity 342063 PIDG insulated ring terminal with M6 stud size and support for 16 AWG to 14 AWG wire sizes provides reliable electrical connections in demanding industrial environments. The terminal features a high conductivity copper body with a nylon insulated sleeve colored black to facilitate identification and provide electrical insulation.
The design incorporates serrations inside the wire barrel for maximum contact and tensile strength after crimping, ensuring durability and consistent performance. The copper sleeve enhances wire insulation support and prevents fraying, while the funnelled wire entry simplifies wire insertion, speeding up production processes.
With an outer ring diameter of 13.5 mm and overall length of 35 mm, this terminal offers compact form factor suitable for installations with limited space. The tin-plated copper contacts resist corrosion and maintain conductivity throughout operational life. The terminal is rated for maximum operating temperatures up to 105°C, making it suitable for applications exposed to heat.
Designed to meet RoHS environmental compliance requirements, this PIDG ring terminal is ideal for instruments, control systems, lighting, power supplies, panel boxes, transportation equipment, aerospace, motors, and household appliances. Its reliable and uniform crimping capability supports industrial, manufacturing, and commercial wiring tasks.
High conductivity copper construction for excellent electrical performance. Nylon insulated colored sleeve for wire protection and identification. Serrated barrel for strong crimping contact and tensile strength. Funnelled wire entry to prevent fraying and enable fast insertion.
Tin contact plating for corrosion resistance and conductivity. Compact size with 13.5 mm outer ring diameter and 35 mm length. Rated for maximum operating temperature of 105°C for reliability. Meets stringent RoHS environmental standards.
Compatible with wire sizes ranging from 1.3 mm² to 2 mm² cross section. Widely used in industrial, aerospace, transportation, and control applications. Explore more TE Connectivity Ring Terminals and electrical connectors for high-quality, reliable performance in diverse electronic and power connector applications on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal is compatible with wire sizes ranging from 16 AWG to 14 AWG, or 1.3 mm² to 2 mm² in cross section.
It is rated for a maximum operating temperature of 105°C, making it suitable for use in environments exposed to heat.
The terminal is constructed from high conductivity copper, ensuring optimal electrical performance.
It features a nylon insulated colored sleeve, which provides electrical insulation and facilitates easy wire size identification.
The outer ring diameter measures 13.5 mm, allowing for compact installation in limited spaces.
The overall length of this terminal is 35 mm, which contributes to its space-saving design.
The contact plating is made of tin, which helps resist corrosion and maintain conductivity.
The funnelled wire entry design helps prevent wire strand fraying and allows for fast wire insertion.
It is suitable for use in instruments, control panels, power supplies, transportation, aerospace, and other industrial applications.
The design includes serrations inside the barrel to ensure maximum contact and tensile strength after crimping.
This terminal meets RoHS environmental compliance requirements, ensuring it adheres to strict environmental standards.
The terminal is manufactured in India, which is its country of origin.
