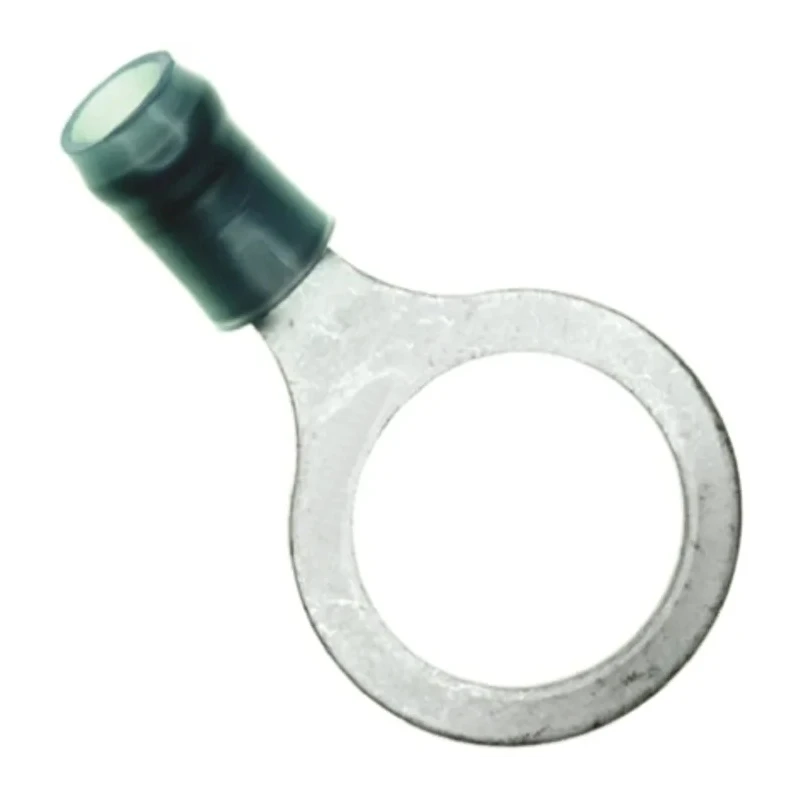

TE Connectivity PIDG Insulated Ring Terminal M12 Stud Size 16 AWG 14 AWG Wire Size Blue 328976
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Blue |
| THICKNESS | 0.84mm |
| Model | 328976 |
| Insulation | Insulated |
| Overall Length | 1.293in |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 2.6mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Outer Ring Diameter | 0.713in |
| Inner Ring Diameter | 0.515in |
| Stud Size | M12 |
Key Features
- High conductivity copper body ensures excellent electrical performance.
- Nylon insulation sleeve is color-coded blue for easy wire size identification.
- Serrated wire barrel provides maximum contact and tensile strength after crimping.
- Funnelled wire entry prevents turned back wire strands for fast wire insertion.
- Copper sleeve enhances wire insulation support and prevents fraying.
- Suitable for temperatures up to 105°C for reliable industrial use.
- Compatible with a wide variety of industrial applications including aerospace and motor control.
Product Description
TE Connectivity 328976 PIDG Insulated Ring Terminal features a blue nylon insulation sleeve and is designed for M12 stud size. This ring terminal efficiently accommodates wire sizes from 16 AWG to 14 AWG. It offers a reliable and uniform crimp for secure electrical connections in demanding environments.
The terminal body is made from high conductivity copper with a tin plating to ensure excellent electrical conductivity and corrosion resistance. The wire barrel has serrations that maximize contact and tensile strength, providing a secure and durable connection. An internal copper sleeve surrounds the wire barrel to support insulation and prevent fraying.
The blue nylon insulation sleeve aids quick wire size identification and protects the connection, while the funnelled wire entry design facilitates easy and efficient wire insertion during high-speed production.
Designed to withstand temperatures up to 105°C, this terminal is suitable for industrial and commercial applications including instrumentation, control panels, lighting systems, power supplies, transportation equipment, motors, aerospace, and appliance wiring.
These PIDG (Pre-Insulated Diamond Grip) ring terminals meet stringent requirements, delivering dependable performance across various sectors. High conductivity copper body ensures excellent electrical performance. Nylon insulation sleeve is color-coded blue for easy wire size identification.
Serrated wire barrel provides maximum contact and tensile strength after crimping. Funnelled wire entry prevents turned back wire strands for fast wire insertion. Copper sleeve enhances wire insulation support and prevents fraying.
Suitable for temperatures up to 105°C for reliable industrial use. Compatible with a wide variety of industrial applications including aerospace and motor control.
Explore a wide range of high-quality Ring Terminals and power connectors available in the TE Connectivity series at EnvMart to suit your professional industrial and electrical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This ring terminal is suitable for temperatures up to 105°C, making it reliable for industrial use.
It accommodates wire sizes from 16 AWG to 14 AWG, with a minimum wire size of 1 mm² and a maximum wire size of 2.6 mm².
The contact material is high conductivity copper, which is plated with tin for enhanced electrical conductivity and corrosion resistance.
The serrated wire barrel maximizes contact and tensile strength after crimping, ensuring a secure and durable connection.
The stud size for this terminal is M12, which is suitable for various applications.
The overall length of this ring terminal is 1.293 inches.
The insulation material is nylon, which offers protection and aids in quick wire size identification.
The funnelled wire entry design prevents turned back wire strands and facilitates fast wire insertion, enhancing efficiency during installation.
It is suitable for various industrial applications, including instrumentation, control panels, lighting systems, power supplies, and aerospace.
The outer ring diameter is 0.713 inches, and the inner ring diameter is 0.515 inches.
This ring terminal is manufactured in India.
This terminal is part of the PIDG (Pre-Insulated Diamond Grip) series, designed for reliable electrical connections.
