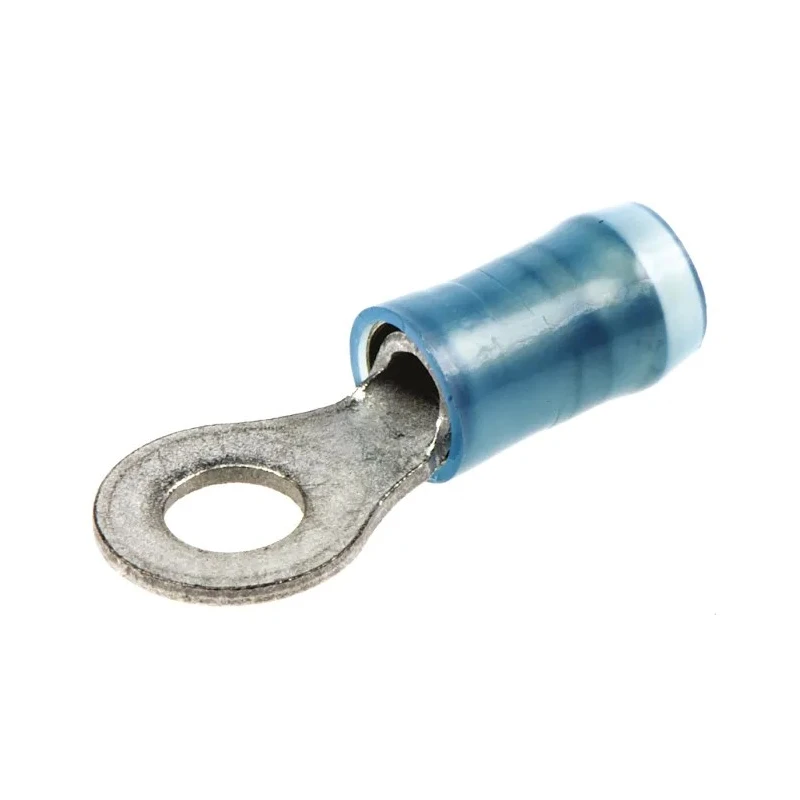

TE Connectivity PIDG Insulated Ring Terminal M4 Stud Size 16 AWG 14 AWG Wire Size Blue 320560

TE Connectivity 320560 PIDG Insulated Ring Terminal is a high-quality electrical connector designed with a precision-formed copper body and barrel, intended for applications requiring reliable and uniform wire connections. This insulated ring terminal supports wire sizes from 16 AWG to 14 AWG and fits an M4 stud size, featuring a blue nylon sleeve that provides insulation and easy wire size identification.

The design incorporates a copper sleeve within the barrel that supports and secures the wire insulation, preventing fraying and enhancing mechanical strength. The internal serrations ensure maximum electrical contact and tensile strength after crimping, guaranteeing optimal performance even in demanding circuit environments.

This ring terminal can withstand temperatures up to 105°C, making it suitable for industrial, automotive, aerospace, instrumentation, control panels, and other sectors requiring rugged and dependable wire termination solutions.

The funnelled wire entry improves ease of use for high-volume production environments, enabling faster wire insertion without risk of turning back strands. The TPIDG series is recognized for its reliability and conformity to MIL-T-7928 specifications for Class 1 and 2 components in diverse industrial applications.

Constructed with high conductivity copper body for superior electrical performance. Durable nylon insulation sleeve enhances wire protection and durability. Copper sleeve prevent wire fraying and strengthens crimp tensile strength.

Color-coded blue sleeve for easy wire size identification and tooling. Serrated barrel for maximum contact effectiveness after crimping. Funnelled wire entry for efficient and reliable wire insertion. Operates reliably up to 105°C maximum temperature.

Widely used in industrial, aerospace, instrumentation, and electrical panel applications. Set contains 1 Pc PIDG Insulated Ring Terminal in Blue color with M4 stud size supporting wire gauge 16 to 14 AWG. Explore more Ring Terminals and electrical connectors at EnvMart for quality industrial and commercial electronics components.
