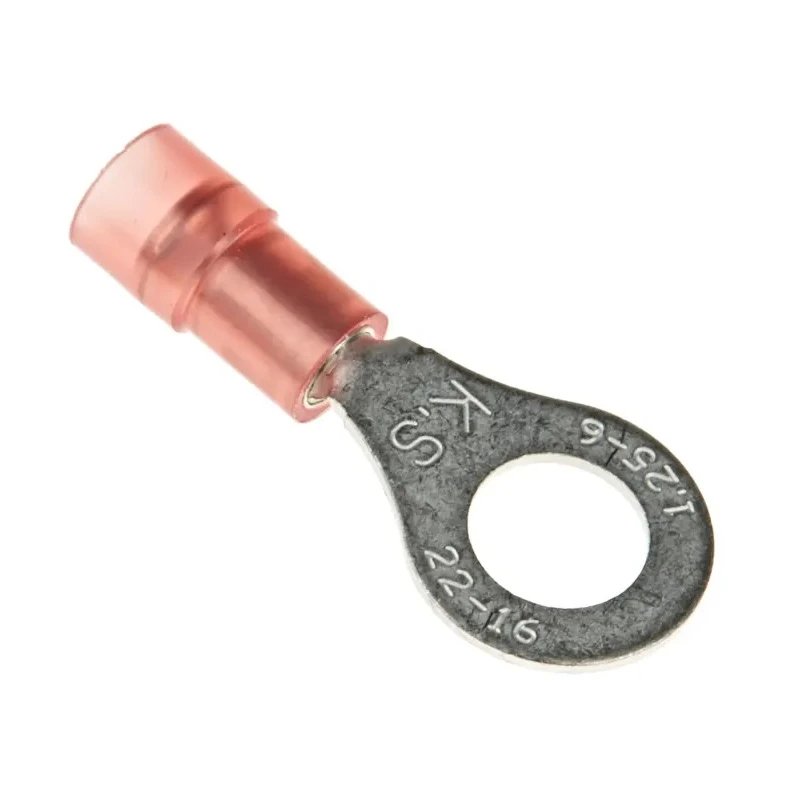

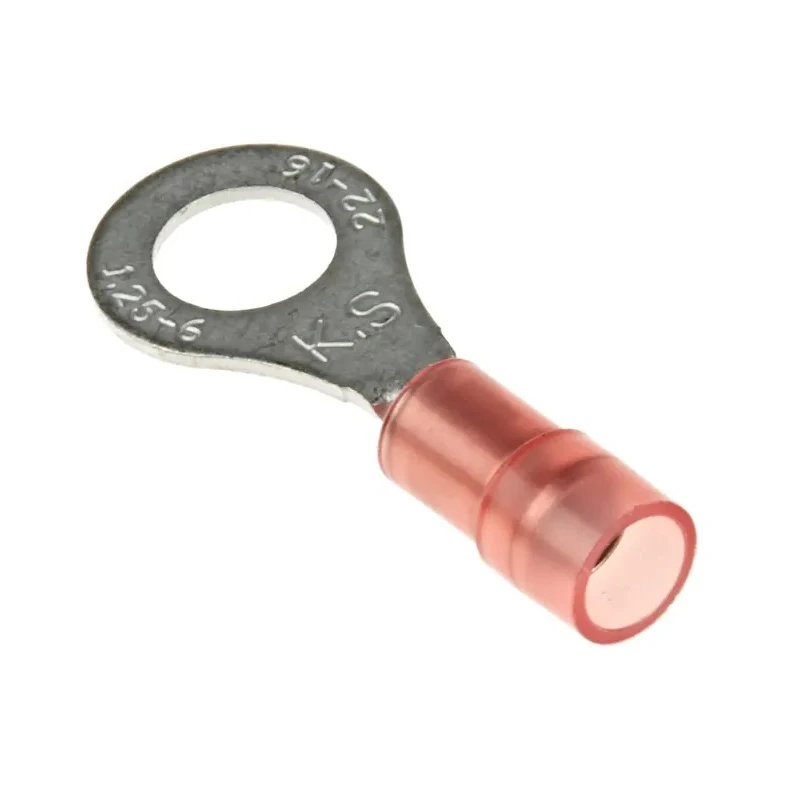

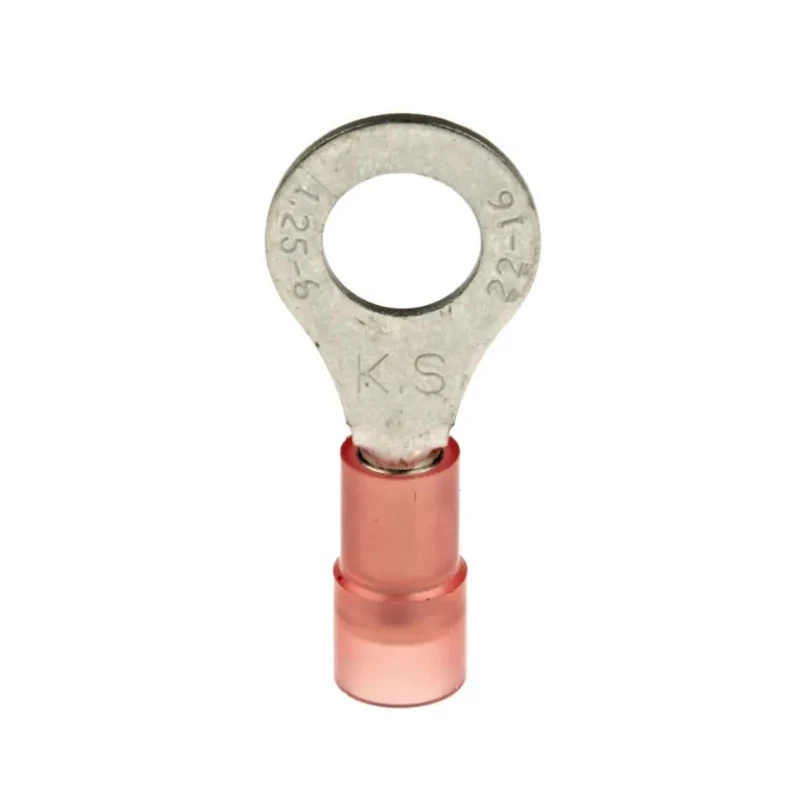

RS PRO Insulated Ring Terminal M6 Stud Size 22 AWG to 16 AWG Wire Size Nylon Insulation Red 267-3593
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Colour | Red |
| THICKNESS | 0.75mm |
| Model | 267-3593 |
| Insulation | Insulated |
| Overall Length | 27.8mm |
| Contact Material | Copper |
| Series | RS PRO |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Minimum Operating Temperature | -40°C |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Per Unit, RS stock no | 267-3593 |
| RS stock no | 270-7626 |
| Outer Ring Diameter | 11.6mm |
| Inner Ring Diameter | 6.4mm |
| Stud Size | M6 |
Key Features
- Constructed from high conductivity copper for efficient electrical performance.
- Equipped with tin plating for corrosion resistance and improved durability.
- Double crimp design includes an internal copper sleeve ensuring a robust crimp connection.
- Durable red nylon insulation provides excellent protection and abrasion resistance.
- Rated for operating temperatures from -40°C up to 105°C, suitable for industrial environments.
- Colour-coded insulation simplifies size identification during installation.
- Flared insulation design allows for easy wire insertion and secure connection.
- Ideal for applications in industrial control systems, automotive, communication equipment, and power supplies.
Product Description
It features a nylon insulation providing enhanced electrical insulation, mechanical protection, and resistance to abrasion and fatigue.
This ring terminal body is made of highly conductive copper with tin plating to optimize conductivity and corrosion resistance. The double crimp design with an internal copper sleeve reinforces the barrel, providing a strong and reliable crimp joint that withstands stress and high vibration conditions.
The red nylon insulation is colour coded for quick size identification and has a flared design facilitating easy wire insertion. It operates effectively within temperatures ranging from -40°C to 105°C, accommodating demanding industrial and automotive applications.
This connector is widely used in industrial control machinery, automotive wiring, communication devices, power supply units, and domestic appliance connections, ensuring stable and durable electrical connections.
Constructed from high conductivity copper for efficient electrical performance. Equipped with tin plating for corrosion resistance and improved durability. Double crimp design includes an internal copper sleeve ensuring a robust crimp connection.
Durable red nylon insulation provides excellent protection and abrasion resistance. Rated for operating temperatures from -40°C up to 105°C, suitable for industrial environments. Colour-coded insulation simplifies size identification during installation.
Flared insulation design allows for easy wire insertion and secure connection. Ideal for applications in industrial control systems, automotive, communication equipment, and power supplies.
This product is an essential component for various electrical and industrial applications requiring reliable wire terminations. Explore additional RS PRO connectors and accessories at EnvMart for comprehensive electrical solutions.
Explore more products in our Ring Terminals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 105°C.
It is compatible with wire sizes ranging from 22 AWG to 16 AWG, or 0.5 mm² to 1.5 mm².
The contact material of this terminal is copper, which is known for its high conductivity.
This unit features nylon insulation, providing enhanced electrical insulation and mechanical protection.
The stud size for this ring terminal is M6.
The overall length of this model is 27.8 mm.
The inner ring diameter is 6.4 mm, and the outer ring diameter is 11.6 mm.
The double crimp design, which includes an internal copper sleeve, ensures a robust crimp connection that withstands stress and high vibration conditions.
This terminal is ideal for applications in industrial control systems, automotive wiring, communication equipment, and power supplies.
Yes, the contact is tin plated, which provides corrosion resistance and improved durability.
The flared insulation design allows for easy wire insertion and secure connection.
This product is manufactured in India.
