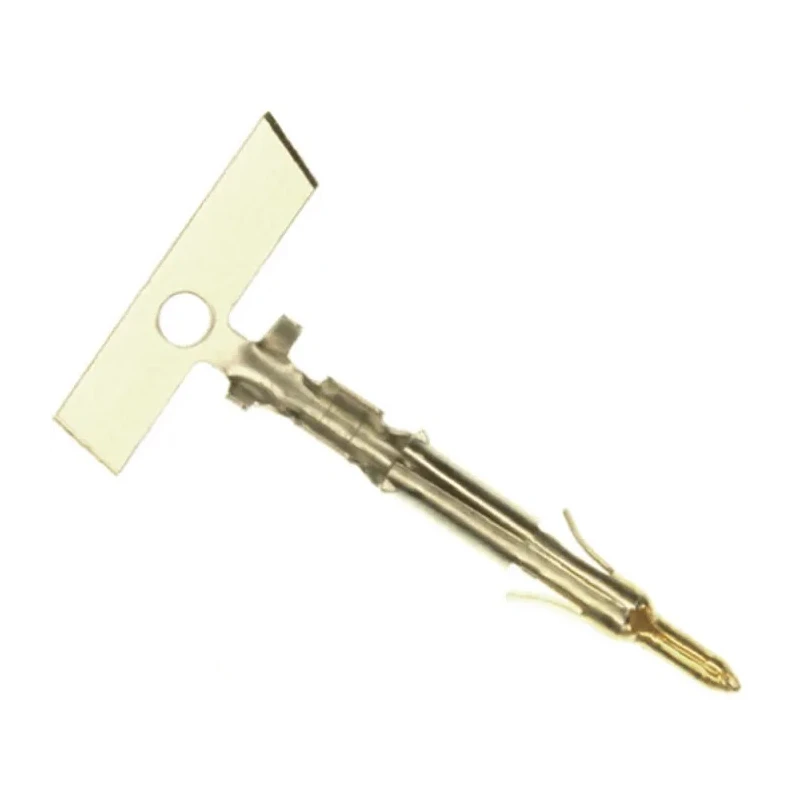

TE Connectivity Mini-Universal MATE-N-LOK Series Male Crimp Terminal 7A Current, 20-16 AWG Wire Size 171636-1

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Mini-Universal MATE-N-LOK Series Male Crimp Terminal 7A Current, 20-16 AWG Wire Size 171636-1

Name: TE Connectivity Mini-Universal MATE-N-LOK Series Male Crimp Terminal 7A Current, 20-16 AWG Wire Size 171636-1
Brand: TE Connectivity
SKU: 209922
Price: 0.18 USD
Availability: InStock



Category PCB Connectors & Wire Housings Brand TE Connectivity Condition New

Specifications

Country of Origin	Japan
Brand	TE Connectivity
Current	7A
Model	171636-1
Gender	Male
Contact Material	Brass
Series	Mini-Universal MATE-N-LOK
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-20°C
For Use With	Mini-Universal MATE-N-LOK Connector Housing
Contact Plating	Tin
Minimum Wire Size mm²	0.5mm²
Maximum Wire Size mm²	1.3mm²
Minimum Wire Size AWG	20AWG
Maximum Wire Size AWG	16AWG
Maximum Contact Resistance	10mΩ

Key Features

This male crimp terminal supports a minimum wire size of 20 AWG and maximum of 16 AWG.
Manufactured from brass material with a tin plated contact for reliable conductivity and corrosion resistance.
Features a maximum contact resistance of 10 milliohms ensuring efficient electrical connection.
Operating temperature range from -20°C to 105°C suitable for diverse industrial applications.
Designed for crimp termination compatible with Mini-Universal MATE-N-LOK connector housings.
Produced in Japan ensuring quality manufacturing standards.
Non-coated standard compliant contact without specific certifications.
Ideal for electronic components, power, and PCB connector applications needing precise male crimp terminals.

Product Description

TE Connectivity 171636-1 Mini-Universal MATE-N-LOK Series Male Crimp Terminal provides a reliable electrical connection solution designed specifically for Mini-Universal MATE-N-LOK connector housings. With a current rating of 7 amperes, it suits electronic, power, and PCB connector applications requiring precise and durable male contacts.

Constructed with brass contact material and a tin plating, it ensures excellent conductivity combined with corrosion resistance for long-lasting performance. The terminal supports wire sizes from 20 AWG (0.5 mm²) minimum to 16 AWG (1.3 mm²) maximum, allowing flexibility for various wiring applications.

This crimp terminal maintains a maximum contact resistance of 10 milliohms, ensuring minimal power loss and efficient signal transfer. Its operating temperature range from -20°C to 105°C makes it suitable for use in diverse industrial environments, including electronics manufacturing, automation, and electrical control systems.

The termination type is crimp, facilitating secure and fast assembly. Manufactured in Japan, it adheres to quality standards guaranteeing durability and consistent performance. This male crimp terminal supports a minimum wire size of 20 AWG and maximum of 16 AWG.

Manufactured from brass material with a tin plated contact for reliable conductivity and corrosion resistance. Features a maximum contact resistance of 10 milliohms ensuring efficient electrical connection. Operating temperature range from -20°C to 105°C suitable for diverse industrial applications.

Designed for crimp termination compatible with Mini-Universal MATE-N-LOK connector housings. Produced in Japan ensuring quality manufacturing standards. Non-coated standard compliant contact without specific certifications.

Ideal for electronic components, power, and PCB connector applications needing precise male crimp terminals.

This product is widely used in industrial, electronics, and electrical applications, providing efficient, robust, and reliable contact solutions. Explore the extensive range of TE Connectivity components on EnvMart for compatible connectors and tooling.
