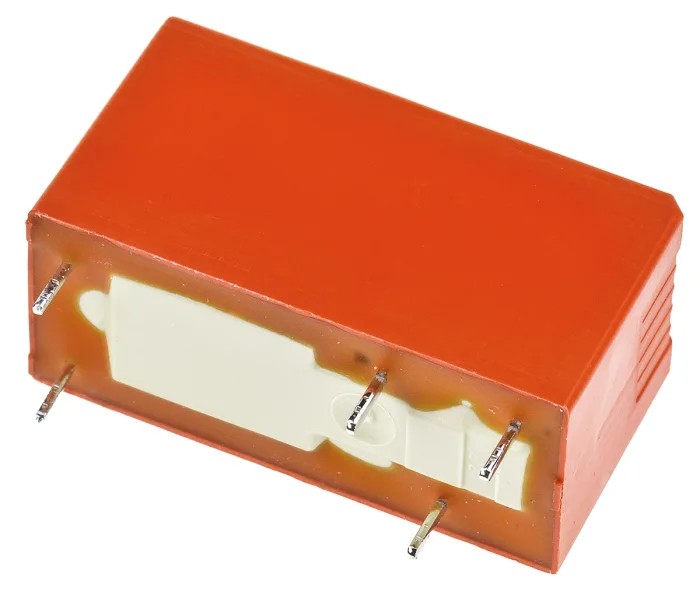

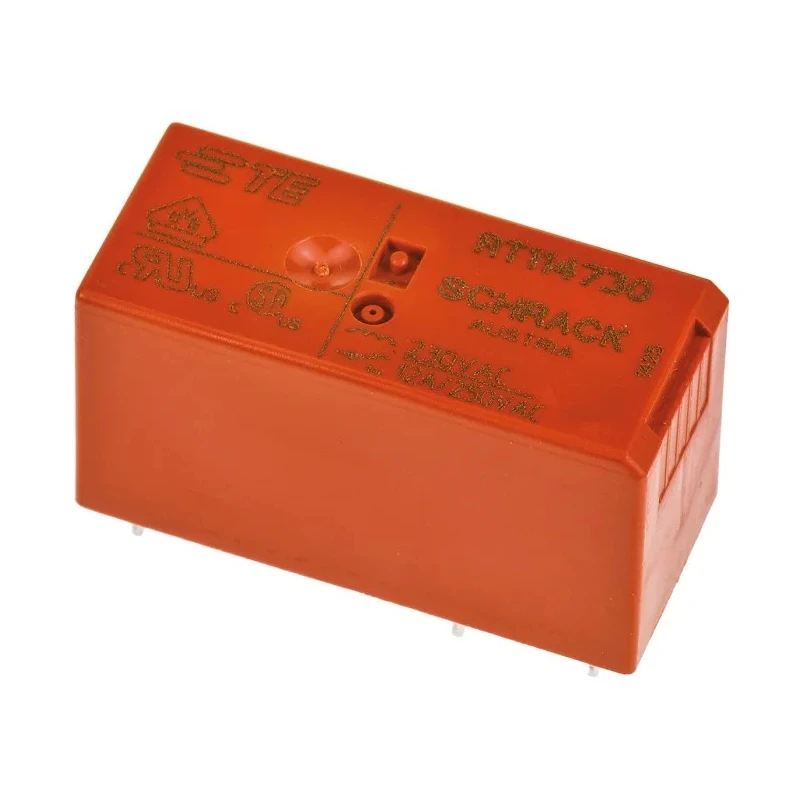

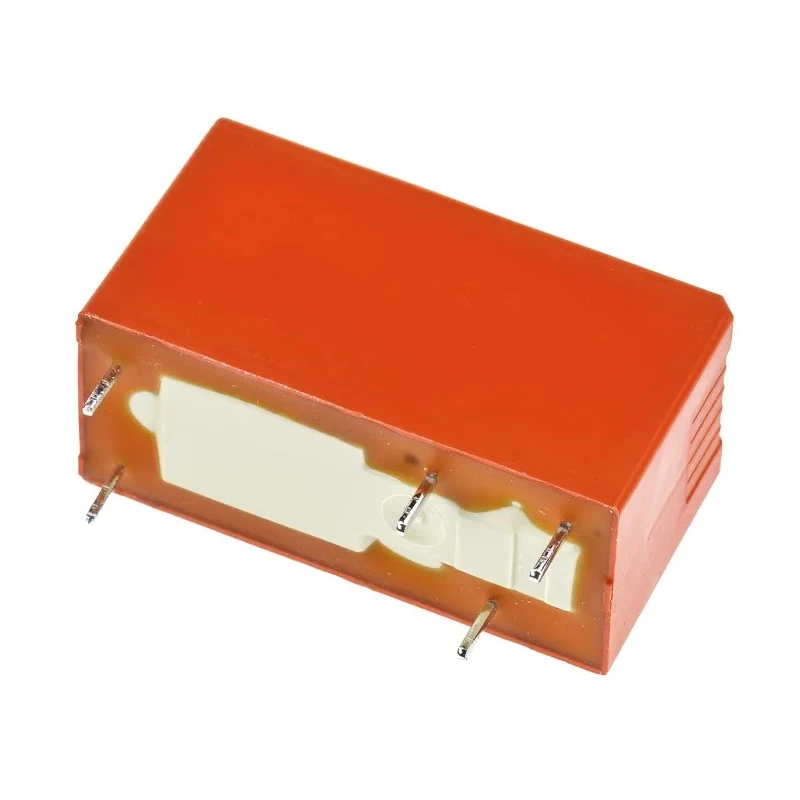

TE Connectivity PCB Power Relay 230V AC Coil 12A Switching Current SPDT RT114730
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT114730 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT1 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 12A |
| Terminal type | Solder |
| Standards/Approvals | IEC 60335-1, RoHS, VDE |
| Coil Resistance | 32.5kΩ |
| Coil Voltage | 230V ac |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
Key Features
- This relay features a 230V AC coil voltage suitable for PCB mounting.
- It supports a maximum switching current of 12 amperes.
- Contact configuration is Single Pole Double Throw (SPDT) for versatile switching.
- Designed for operation between -40°C to 70°C ensuring robust performance.
- The relay has a compact size with 29mm length, 12.7mm width, and 15.7mm height.
- Coil resistance is 32.5 kΩ with a coil power consumption of 250mW.
- Switching AC Voltage capability up to 400V AC.
- Constructed with silver nickel alloy contact material for durability and efficiency.
Product Description
TE Connectivity RT114730 PCB Power Relay features a 230V AC coil and a 12A switching current with SPDT contact configuration, designed for reliable PCB mounting applications. It operates efficiently within a temperature range of -40°C to 70°C, making it suitable for industrial and domestic automation, interface systems, security lighting, and heating applications.
This relay is part of the RT1 series known for 3.5mm pinning and flux-proof construction, ensuring durability and ease of assembly on printed circuit boards. With a compact footprint measuring 29mm in length, 12.7mm in width, and 15.7mm in height, it fits well in constrained spaces while maintaining excellent electrical performance.
The coil resistance of 32.5kΩ and coil power of 250mW provide low energy consumption during operation. The switching capacity is rated at 400V AC with a maximum current of 12A, supported by silver nickel alloy contacts for long service life and reliable contact performance. Additionally, this relay complies with IEC 60335-1, RoHS directives, and VDE approvals, ensuring safety and environmental standards compliance.
Applications of this PCB power relay include automation control systems, security lighting circuits, heating system controls, and general interface applications where reliable switching is critical. Designed and manufactured in Austria, it provides high quality and precision necessary for demanding industrial environments.
This relay features a 230V AC coil voltage suitable for PCB mounting. It supports a maximum switching current of 12 amperes. Contact configuration is Single Pole Double Throw (SPDT) for versatile switching. Designed for operation between -40°C to 70°C ensuring robust performance.
The relay has a compact size with 29mm length, 12.7mm width, and 15.7mm height. Coil resistance is 32.5 kΩ with a coil power consumption of 250mW. Switching AC Voltage capability up to 400V AC. Constructed with silver nickel alloy contact material for durability and efficiency.
Suitable for various applications including automation, interface, security lighting, and heating systems. Manufactured in Austria adhering to IEC 60335-1, RoHS, and VDE standards. Explore more TE Connectivity products and Power Relays in the Electronics & Electricals category at EnvMart to find components tailored to your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay features a coil voltage of 230V AC, making it suitable for various applications requiring this voltage level.
This model supports a maximum switching current of 12 amperes, allowing it to handle significant electrical loads.
The contact configuration is Single Pole Double Throw (SPDT), providing versatile switching capabilities for different applications.
The relay has a compact size with dimensions of 29mm in length, 12.7mm in width, and 15.7mm in height, suitable for PCB mounting.
It operates efficiently within a temperature range of -40°C to 70°C, making it suitable for various industrial and domestic environments.
The coil resistance is 32.5 kΩ, which contributes to its low energy consumption during operation.
The coil power consumption is 250mW, indicating efficient energy use during its operation.
This relay can switch AC voltages up to 400V AC, allowing it to be used in various high-voltage applications.
The contacts are constructed from silver nickel alloy, which enhances durability and efficiency in performance.
It complies with IEC 60335-1, RoHS directives, and VDE approvals, ensuring it meets safety and environmental standards.
This model is designed for PCB mounting, making it suitable for integration into printed circuit boards.
The relay is manufactured in Austria, ensuring adherence to high quality and precision standards.
