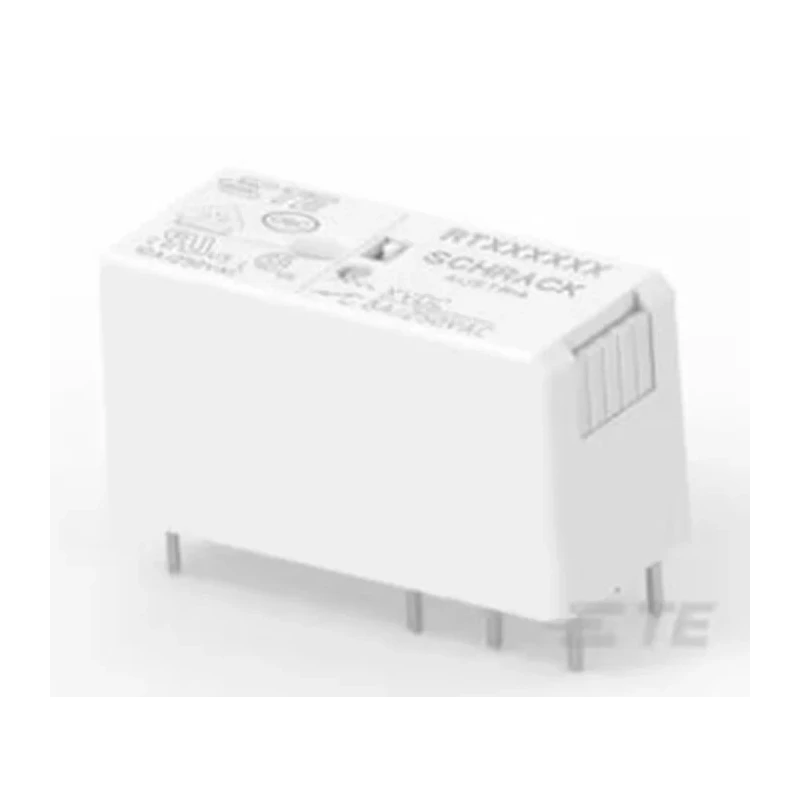

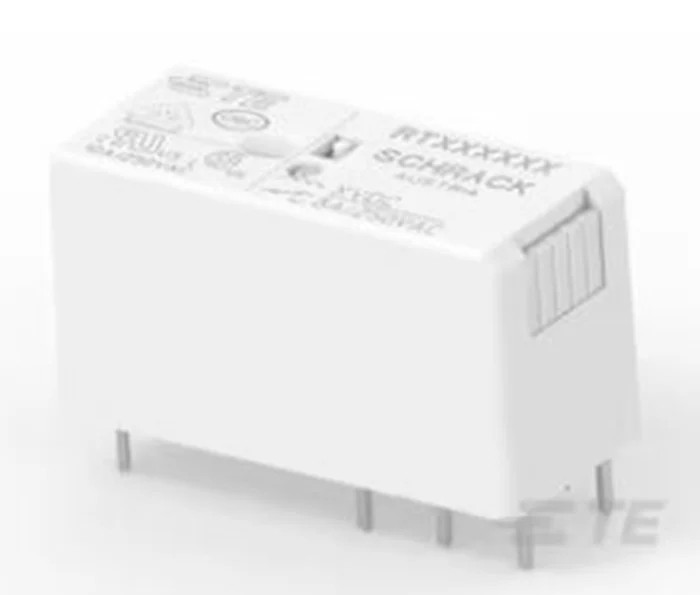

TE Connectivity PCB Power Relay 24V DC Coil 8A Switching Current DPDT RTE24024
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RTE24024 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT2 |
| Maximum Operating Temperature | 85°C |

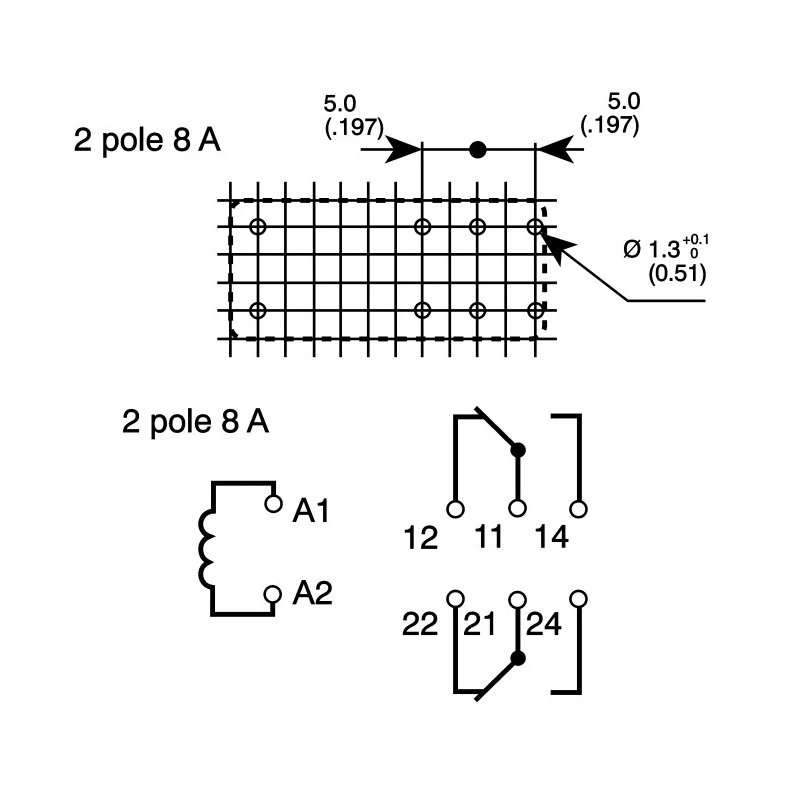

| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 1.4kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 400mW |
Key Features
- Equipped with a 24V DC coil for efficient actuation.
- Double Pole Double Throw (DPDT) contact configuration supports versatile switching.
- Switching current capacity of 8A suitable for moderate loads.
- Robust silver nickel alloy contact material ensures durability and conductivity.
- Rated for switching AC voltage up to 400V AC for versatile applications.
- Operating temperature range from -40°C to 85°C for diverse environmental conditions.
- Coil resistance approximately 1.4kΩ with low coil power consumption of 400mW.
- PCB mount with solder terminal type for easy assembly in circuits.
Product Description
TE Connectivity RTE24024 PCB Power Relay is a high-quality non-latching relay designed for PCB mounting applications, featuring a 24V DC coil and a robust switching current of 8A. Its Double Pole Double Throw (DPDT) contact configuration provides reliable switching solutions for electrical circuits in automation and control systems.
This relay incorporates silver nickel alloy contacts to ensure excellent conductivity and durability under various operating conditions. It supports switching AC voltages up to 400V AC and is ideal for use in heating systems, security lighting, and domestic automation applications.
The coil resistance of 1.4kΩ combined with a low coil power of 400mW ensures energy-efficient operation. The relay can withstand operating temperatures ranging from -40°C up to 85°C, making it suitable for harsh industrial environments.
Its compact dimensions (29mm length, 12.7mm width, 15.7mm height) and solder terminal type facilitate seamless PCB integration. The product complies with RoHS standards and is manufactured in Austria, assuring high quality and environmental compliance.
Equipped with a 24V DC coil for efficient actuation. Double Pole Double Throw (DPDT) contact configuration. Supports 8A switching current and 400V AC switching voltage. Durable silver nickel alloy contact material. Low coil power of 400mW and coil resistance of 1.4kΩ.
Compact size ideal for PCB mounting with solder terminals. Wide operating temperature range of -40°C to 85°C. RoHS compliant and manufactured in Austria.
This PCB power relay is widely used in industrial automation, heating control systems, interface circuits, and security lighting applications. Its reliable performance and compliance with international standards make it an excellent choice for manufacturing and commercial use.
Explore more Power Relays and electrical components in EnvMart’s extensive electronics and electricals catalog to support your project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 24V DC, which is designed for efficient actuation.
It supports a maximum switching current of 8A, making it suitable for moderate loads.
This relay features a Double Pole Double Throw (DPDT) contact configuration, allowing for versatile switching applications.
The relay is rated for switching AC voltages up to 400V AC, suitable for various applications.
The relay has compact dimensions of 29mm in length, 12.7mm in width, and 15.7mm in height, making it ideal for PCB mounting.
The coil resistance is approximately 1.4kΩ, contributing to its low power consumption.
The coil power consumption is 400mW, ensuring energy-efficient operation.
It operates within a temperature range of -40°C to 85°C, making it suitable for diverse environmental conditions.
The contacts are made of a silver nickel alloy, which ensures good conductivity and durability.
Yes, this relay complies with RoHS standards, indicating its environmental compliance.
It features solder terminals for easy assembly in PCB circuits.
This model is manufactured in Austria, ensuring high quality and compliance with international standards.
