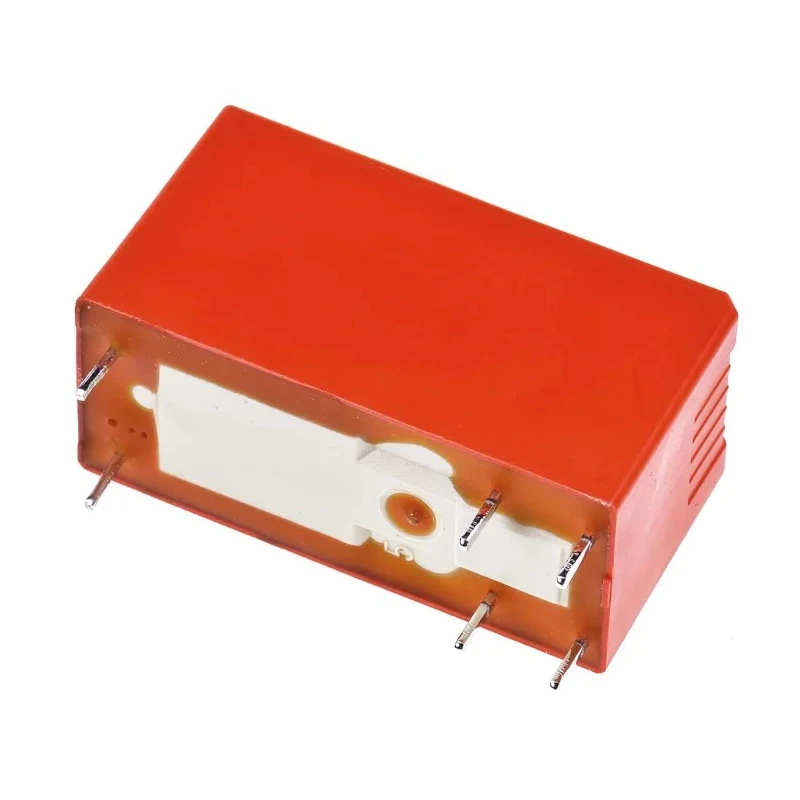

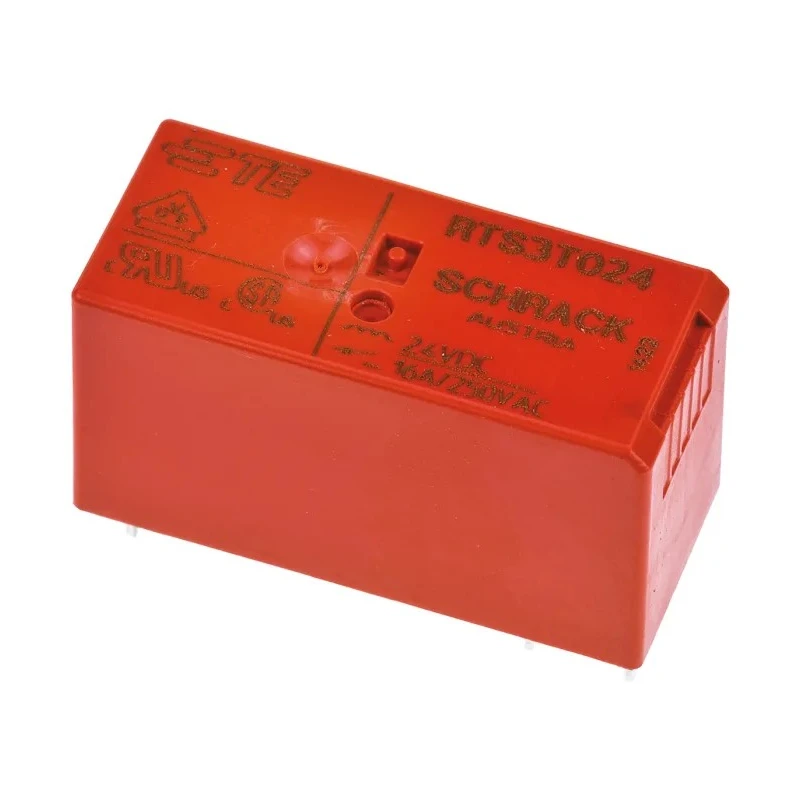

TE Connectivity PCB Power Relay SPST 24V dc Coil 16A Switching Current RTS3T024
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RTS3T024 |
| Width | 12.7mm |
| Mount Type | PCB |
| Series | RT-iPower |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Standards/Approvals | IEC 60335-1, VDE, RoHS |
| Coil Resistance | 1.4kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
Key Features
- The relay features a 24V dc coil voltage suitable for PCB mounting.
- Contact configuration is Single Pole Single Throw (SPST) for straightforward switching.
- Designed for switching currents up to 16 amperes with a switching AC voltage of 400V.
- Coil resistance is 1.4kΩ ensuring efficient coil power consumption at 250mW.
- Operating temperature range is wide, from -40°C to 85°C for versatile industrial use.

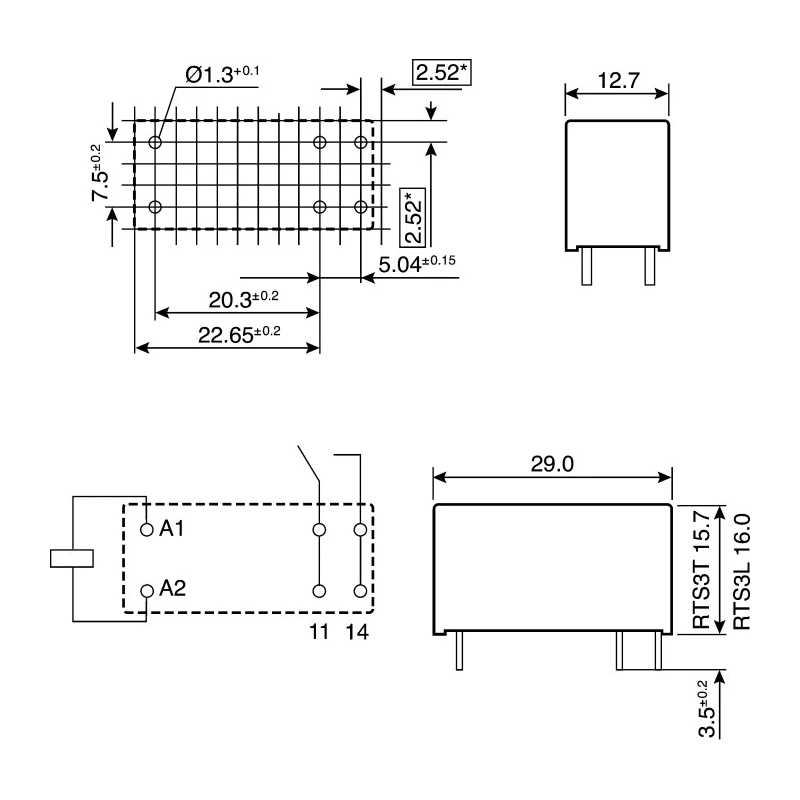

- Compact physical dimensions with length 29mm, width 12.7mm, and height 15.7mm.
- Mount type is PCB with solder terminal type for secure connections.
- Complies with IEC 60335-1, VDE standards and RoHS for safety and environmental compliance.
Product Description
TE Connectivity RTS3T024 PCB Power Relay is designed for industrial-grade power switching applications, featuring a 24V dc coil and a robust 16A switching current capacity with SPST contact configuration.
Its RT-iPower series build ensures high inrush current handling, reinforced insulation with 10mm creepage and clearance, and compliance with IEC and VDE standards. The relay is compact with 29mm length, 12.7mm width, and 15.7mm height, making it suitable for mounting on PCBs using solder terminals.
Operating reliably within a temperature range of -40°C to 85°C, this relay is suitable for lighting controls, movement sensors, filament lamp loads, and motor switching tasks in electrical automation and industrial control environments.
The coil resistance of 1.4kΩ and coil power rating of 250mW optimize energy usage while maintaining switching performance at 16A and 400V AC voltage capabilities. Contact material comprising tungsten silver tin oxide enhances contact longevity and conductivity.
The relay features a 24V dc coil voltage suitable for PCB mounting. Contact configuration is Single Pole Single Throw (SPST) for straightforward switching. Designed for switching currents up to 16 amperes with a switching AC voltage of 400V.
Coil resistance is 1.4kΩ ensuring efficient coil power consumption at 250mW. Operating temperature range is wide, from -40°C to 85°C for versatile industrial use. Compact physical dimensions with length 29mm, width 12.7mm, and height 15.7mm.
Constructed with tungsten silver tin oxide contact material for durability and reliability. Mount type is PCB with solder terminal type for secure connections. Complies with IEC 60335-1, VDE standards and RoHS for safety and environmental compliance.
Ideal for lighting systems, filament lamps, motors, and sensor switching operations.
Power Relays like the RTS3T024 are essential components in electrical circuits requiring controlled power switching and isolation, commonly employed in industrial automation, HVAC systems, manufacturing equipment, and commercial electrical applications.
Explore more TE Connectivity Power Relays and associated components at EnvMart for dependable and efficient circuit control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay features a coil voltage of 24V dc, making it suitable for PCB mounting applications.
It is designed to handle a maximum switching current of 16A.
This relay has a Single Pole Single Throw (SPST) contact configuration for straightforward switching operations.
This model can switch AC voltages up to 400V.
The relay has compact dimensions: 29mm in length, 12.7mm in width, and 15.7mm in height.
The coil resistance is 1.4kΩ, which helps optimize energy consumption at a coil power rating of 250mW.
It operates reliably within a temperature range of -40°C to 85°C, suitable for various industrial applications.
This relay is designed for PCB mounting with solder terminal type for secure connections.
It complies with IEC 60335-1, VDE standards, and RoHS for safety and environmental compliance.
The contact material comprises tungsten silver tin oxide, enhancing contact longevity and conductivity.
It is suitable for applications such as lighting controls, movement sensors, filament lamp loads, and motor switching tasks in electrical automation.
The coil power consumption is rated at 250mW, ensuring efficient operation.
