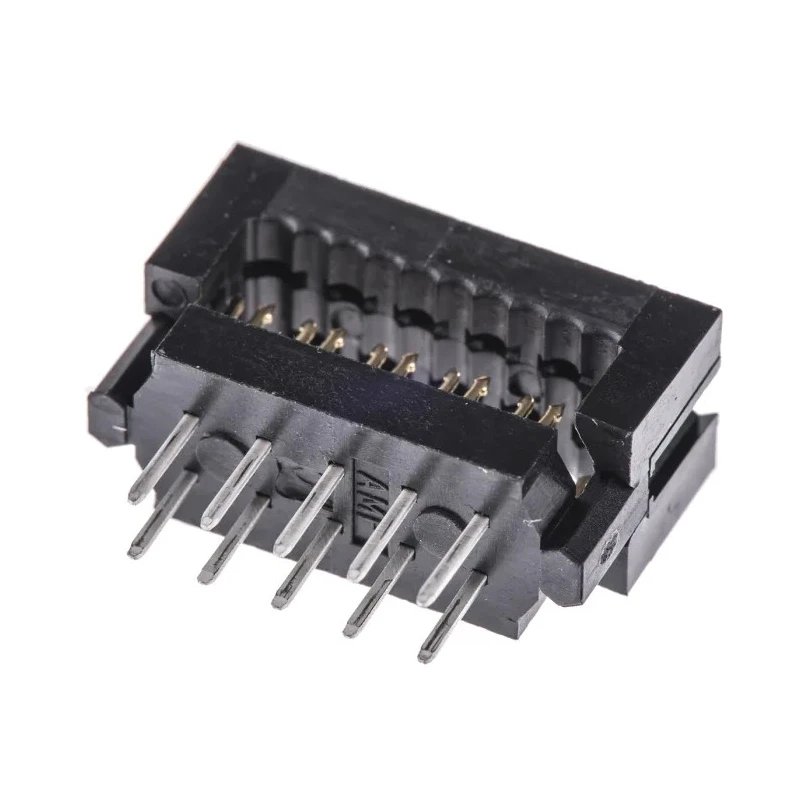

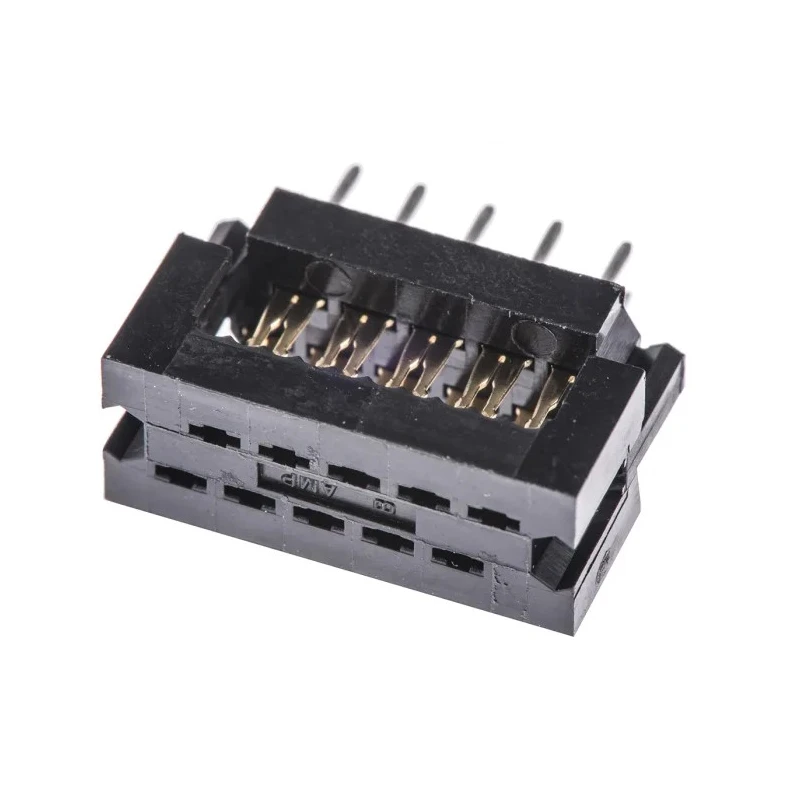

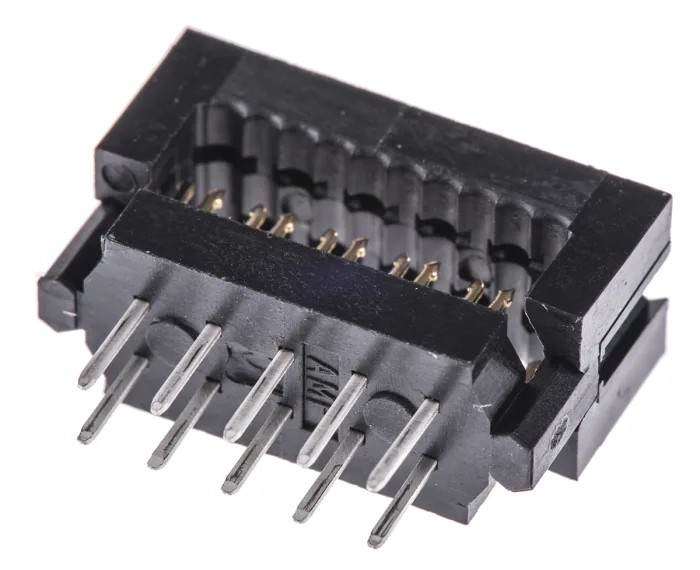

TE Connectivity 10-Way IDC Connector Male for Cable, 2 Row 2-746610-1

TE Connectivity 2-746610-1 IDC Connector is a male 10-way connector configured in 2 rows with a pitch of 2.54mm, designed specifically for cable mounting applications. It features AMP-LATCH technology with a right angle orientation, providing a secure and reliable connection solution. The connector is shrouded with a thermoplastic housing that protects internal contacts and ensures durability in various industrial and commercial environments.

The contacts are plated with gold over nickel, enhancing corrosion resistance and electrical performance. Phosphor bronze material is used for the contact parts, balancing good conductivity and mechanical strength. Rated for 250V AC and 1A current, this connector accommodates typical electronic equipment requirements while supporting operating temperatures ranging from -65°C to 105°C, suitable for a broad range of industrial and electronic applications.

Termination is via insulation displacement contact (IDC) type, enabling rapid, efficient mass termination of ribbon cables without the need for wire stripping, which accelerates manufacturing processes. The housing includes mating alignment and polarization features to prevent incorrect connections, enhancing system reliability.

This IDC Connector is well suited for use in computers, electronic devices, business and medical equipment, and other industrial systems where cable-to-board connectivity is required. Its design supports fast production and robust usage in demanding environments.

Gold over nickel plating ensures dependable conductivity and contact integrity. Thermoplastic housing provides mechanical protection and insulation. Supports 10 contacts arranged in 2 rows for organized connectivity. AMP-LATCH right angle design allows secure mating and easy installation.

Wide operating temperature range from -65°C to 105°C enables versatile application. Phosphor bronze contacts offer high performance and durability. Easily connects ribbon cable directly to PCB, reducing assembly time. Suitable for computing, industrial, medical, and business equipment applications.

Pre-assembled housing and cover facilitate quick assembly and reliable connections. Supplied in tube packaging for safe storage and transport. Explore more electronic connectors and components at EnvMart to meet your industrial and manufacturing needs efficiently.
