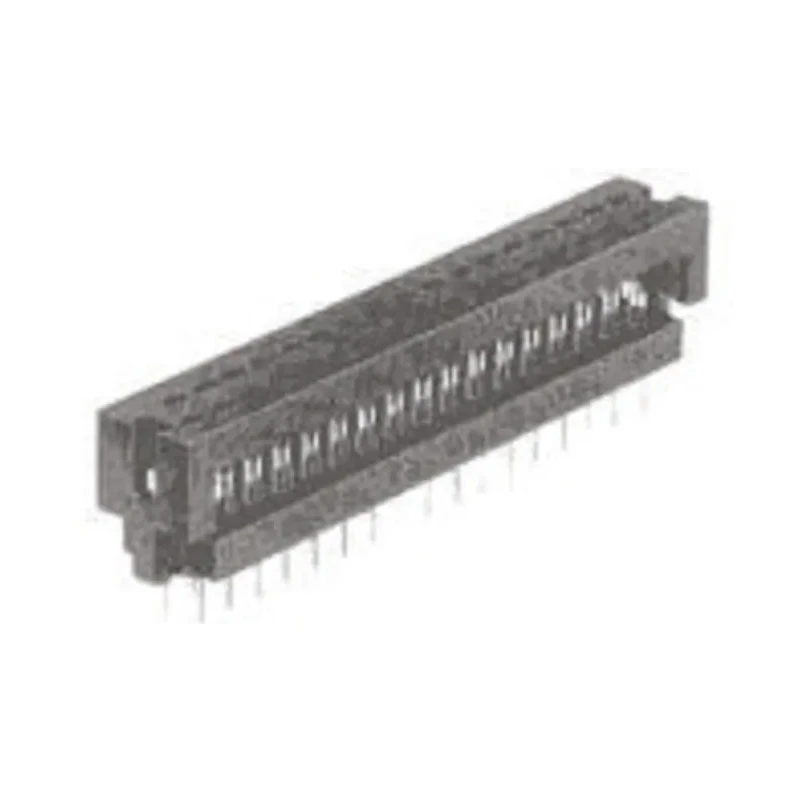

TE Connectivity 20-Way 2 Row Shrouded IDC Connector Male for Cable, 250V AC, 1A, AMP-LATCH Series 1-746610-5

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity 20-Way 2 Row Shrouded IDC Connector Male for Cable, 250V AC, 1A, AMP-LATCH Series 1-746610-5

Name: TE Connectivity 20-Way 2 Row Shrouded IDC Connector Male for Cable, 250V AC, 1A, AMP-LATCH Series 1-746610-5
Brand: TE Connectivity
SKU: 209697
Price: 4.87 USD
Availability: InStock



Category IDC Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	250V ac
Brand	TE Connectivity
Orientation	Right Angle
Current	1A
Mount Type	Cable
Housing Material	Thermoplastic
Contact Material	Phosphor Bronze
Series	AMP-LATCH
Termination Type	IDC
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-65°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold over Nickel
Number of Contacts	20
Contact Gender	Male
Connector Gender	Male
Shrouded/Unshrouded	Shrouded

Key Features

Features 20 contacts arranged in 2 rows for reliable wire-to-board interconnection.
Rated for 1 Amp current with a pitch of 2.54 mm between contacts.
Shrouded connector housing ensures secure connections and protection.
Gold over nickel contact plating enhances corrosion resistance and conductivity.
Constructed with thermoplastic housing and phosphor bronze contacts for durability.
Operating temperature range from -65°C to 105°C suitable for various environments.
Uses AMP-LATCH series with IDC termination for fast and economical mass cable connections.
Right angle orientation facilitates installation in constrained spaces.

Product Description

TE Connectivity 1-746610-5 is a high-quality 20-way IDC connector male designed for cable mounting in a 2-row configuration. This shrouded connector supports wire-to-board applications, operating at a voltage of 250V AC and a current rating of 1 Amp. The 2.54 mm pitch ensures standardized spacing for effective interconnection.

The connector features gold over nickel plating on phosphor bronze contacts, promoting excellent electrical conductivity and resistance against corrosion. The thermoplastic housing adds mechanical robustness and insulating properties while maintaining a lightweight form factor.

This AMP-LATCH series connector incorporates IDC termination, enabling fast and economical mass wire terminations without wire stripping. The right angle orientation provides installation flexibility, especially in equipment with spatial constraints.

Designed to operate reliably within temperatures ranging from -65°C to 105°C, this connector suits diverse industrial, computing, business, and medical equipment environments that require secure and consistent cable connections.

20 contacts in 2 rows for efficient connections. Rated at 1A current and 250V AC voltage for standard applications. Gold-nickel plated phosphor bronze contacts for longevity and performance. Thermoplastic housing for durability and insulation.

Right angle design for versatile mounting options. AMP-LATCH series with IDC termination for quick assembly. Operating temperature range from -65°C to 105°C. Suitable for industrial, electronics, business, and medical equipment.

This connector is part of the AMP-LATCH family, known for reliable, cost-effective, and easy-to-install cable-to-board interfaces. It comes supplied in a tube packaging for convenient handling during manufacturing processes.
