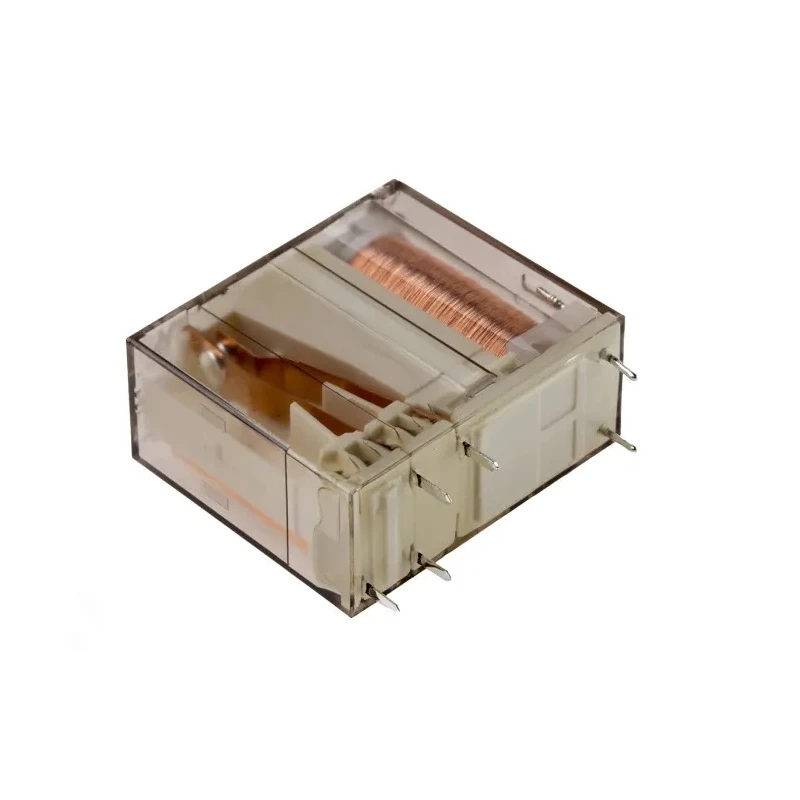

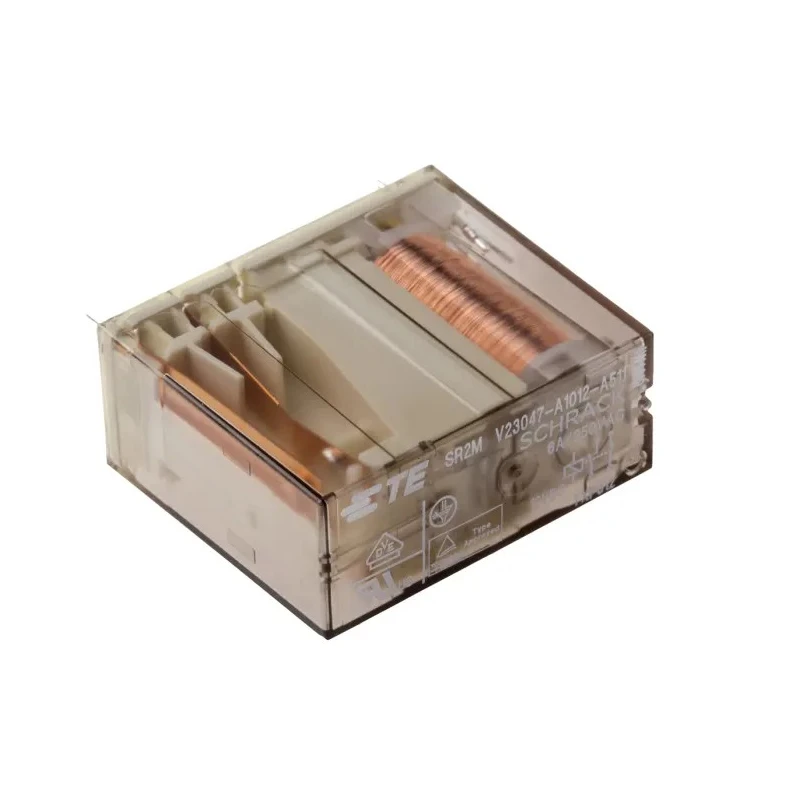

TE Connectivity PCB Force Guided Relay 12V DC Coil Voltage 2-Pole DPST V23047-A1012-A511

TE Connectivity V23047-A1012-A511 PCB Force Guided Relay is a high-quality safety relay designed for industrial and automation control systems. Operating at 12V DC coil voltage, it provides a 2-pole DPST contact configuration suitable for applications requiring forcibly guided contacts to meet safety standards and regulatory requirements.

This relay is intended for printed circuit board (PCB) mounting, featuring solder terminals that ensure stable electrical connections. The silver alloy contacts guarantee excellent electrical conductivity and long service life, while the coil resistance of 206Ω and coil power of 699mW enable efficient power consumption.

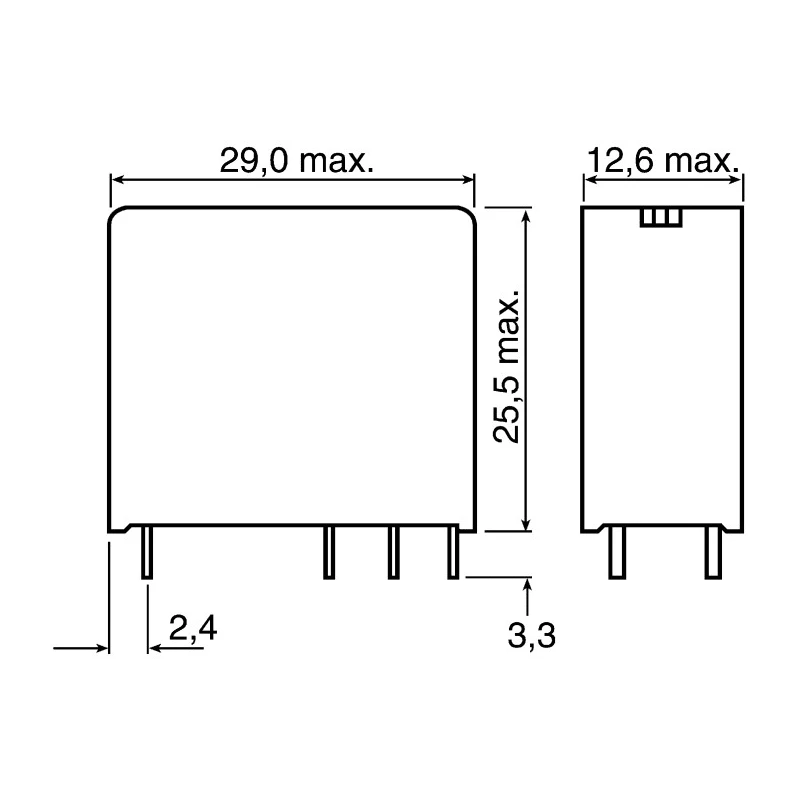

The relay operates reliably across a temperature range from -25°C to 70°C, making it suitable for diverse environments. The coil-to-contact isolation voltage of 4kVrms enhances operational safety by isolating control and power circuits. Its compact size with 29 mm length, 25.5 mm height, and 12.6 mm depth allows integration into various control panels and machinery.

The sealed housing design protects internal components against dust and environmental contaminants, ensuring durability and long-term reliability in demanding industrial settings. This model belongs to the SR2M series of professional safety relays by TE Connectivity, which are recognized for their robust safety features. The product holds VDE approval with additional certifications such as TÜV, CSA, and UL currently in process.

Common use cases include industrial automation systems, safety interlocking circuits, manufacturing equipment controls, and HVAC system protections. This PCB Force Guided Relay supports compliance with safety regulations in electrical and electronic control applications.

Equipped with forcibly guided contacts for enhanced safety compliance. Designed for PCB mounting with secure solder terminal connections. Features silver alloy contact material to ensure high conductivity and durability.

Coil resistance is 206Ω with power consumption of 699mW for energy-efficient operation. Operating temperature range from -25°C to 70°C suits varied environmental conditions. Isolation between coil and contacts rated at 4kVrms for electrical safety.

Compact dimensions: Length 29 mm, Height 25.5 mm, Depth 12.6 mm for easy integration. Sealed housing protects internal components from dust and contaminants. Part of the professional SR2M series safety relays with VDE approval and certifications in progress.

Manufactured in the Czech Republic ensuring quality and reliability. Explore more industrial relays and contactors in the Electronics & Electricals category at EnvMart, trusted for professional and industrial-grade components.
