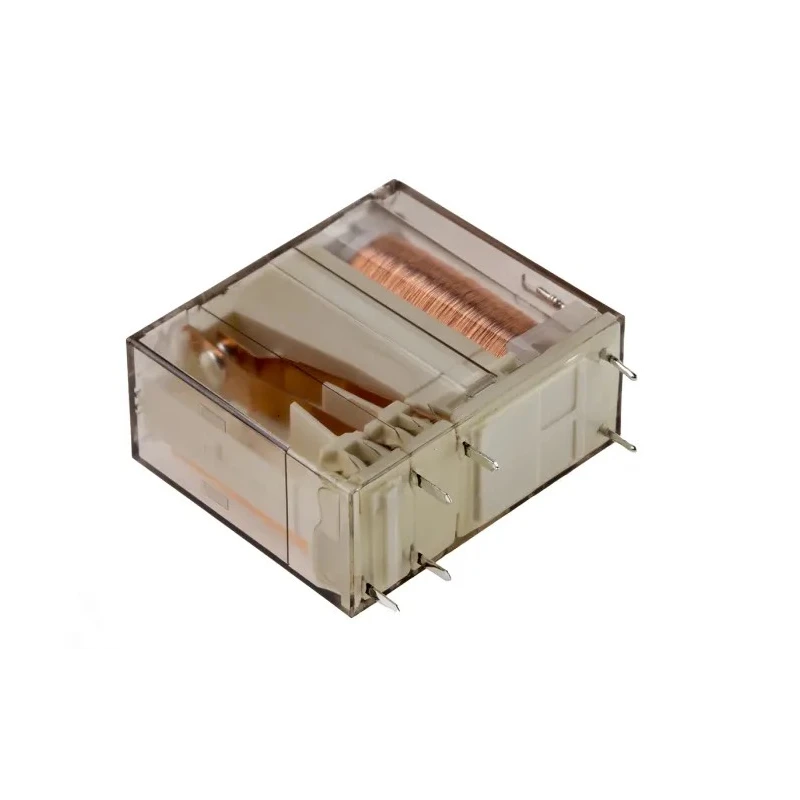

TE Connectivity PCB Force Guided Relay 12V DC Coil Voltage 2-Pole DPST V23047-A1012-A511

TE Connectivity V23047-A1012-A511 PCB Force Guided Relay is a high-quality safety relay designed for industrial, automation, and control applications requiring reliable circuit separation and high-performance switching. With a coil voltage of 12V DC and a 2-Pole DPST contact configuration, this relay is optimized for demanding environments where safety and durability are critical.

It features large insulating gaps and forcibly guided contacts, which ensure fail-safe operation by mechanically linking contacts to prevent dangerous states. The silver alloy contact material offers excellent conductivity and wear resistance, supporting long service life and stable electrical performance.

Designed for easy mounting on printed circuit boards (PCB), it has solder terminal types and a sealed housing that protects internal components against dust and moisture, improving reliability. The relay operates reliably across a wide temperature range from -25°C to 70°C, making it suitable for diverse industrial conditions.

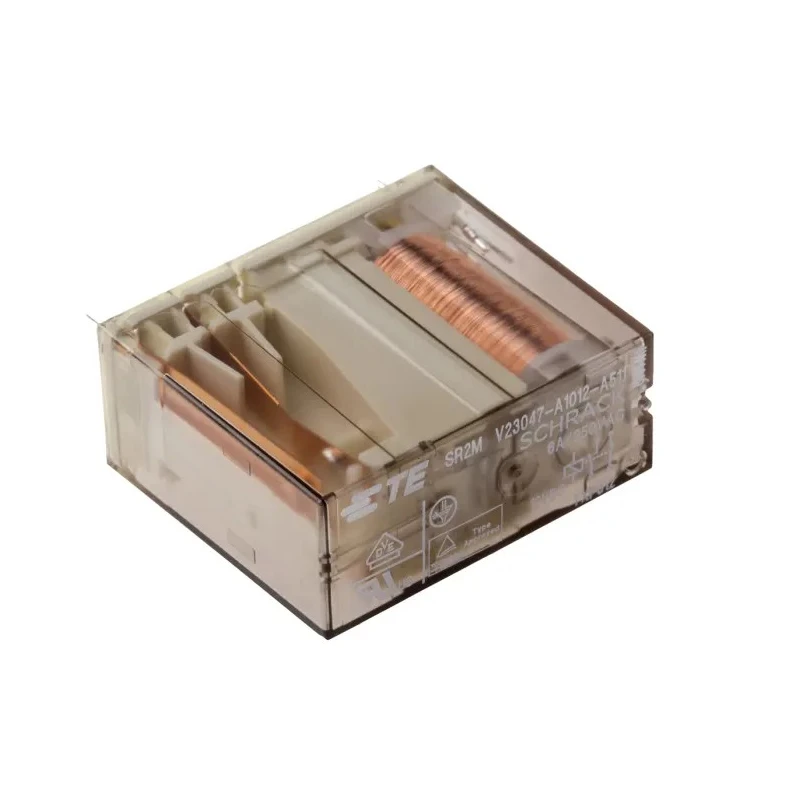

This relay is part of the SR2M series, known for professional-grade safety relays approved by international bodies with VDE certification and pending CSA and UL approvals. The coil resistance is 206 Ohms with power consumption rated at 699 mW. It offers a high isolation voltage of 4 kVrms between coil and contacts, ensuring electrical safety.

Features large insulating gaps for reliable circuit separation. Forcibly guided contacts enhance safety and fail-safe operations. Solder terminals allow secure PCB mounting. Sealed housing protects internal components from contaminants.

Silver alloy contacts provide durability and conductivity. Coil resistance of 206 Ohms and 699 mW power rating. Operating temperature range from -25°C to 70°C. Isolation voltage rating of 4 kVrms between coil and contacts.

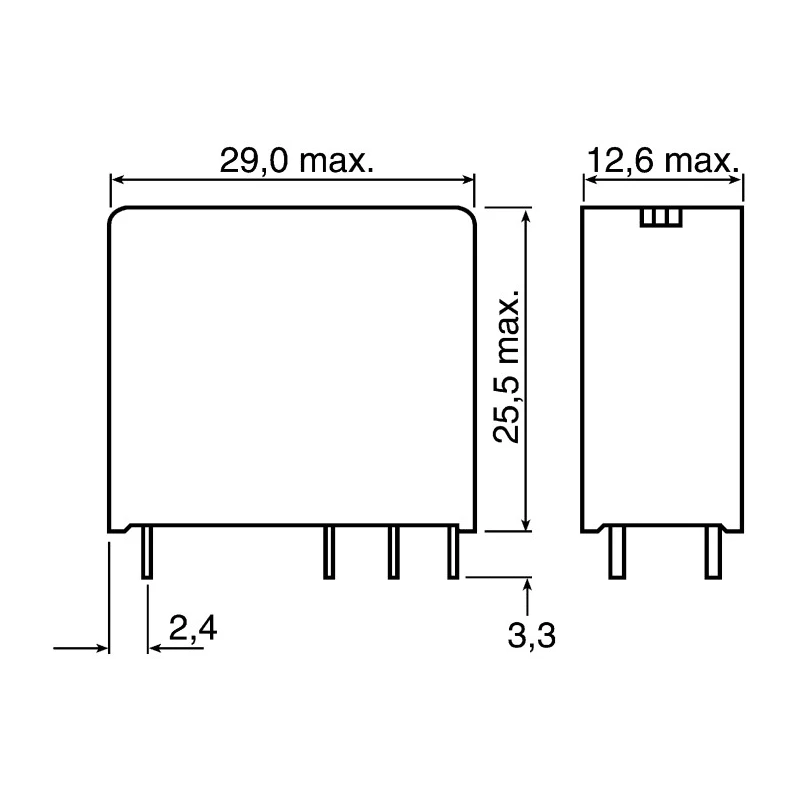

Compact size: 29 mm length, 25.5 mm height, and 12.6 mm depth. Manufactured in Czech Republic ensuring quality standards.

This product is ideal for use in industrial control systems, safety automation, and manufacturing process applications where reliable and safe relay switching is mandatory. It can be employed in electrical panels, industrial machinery, and automation devices.
