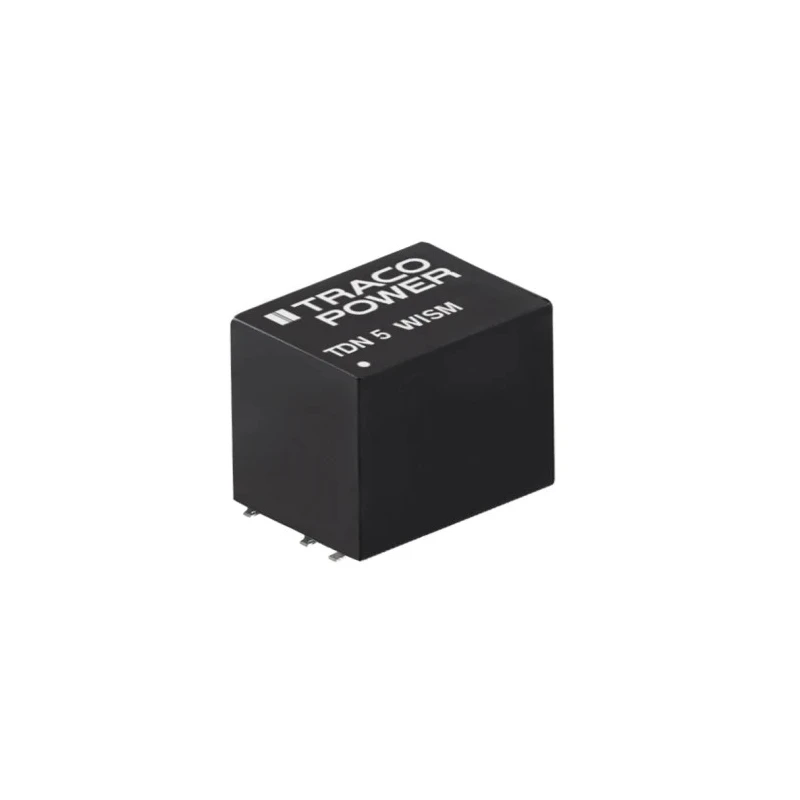

TRACOPOWER TDN 5WISM DC/DC Converter 15V 168mA 36V Input 9V Input 5W Surface Mount TDN 5-2423WISM

TRACOPOWER TDN 5-2423WISM DC/DC Converter is a precision-regulated power supply module designed to provide a constant 15V output voltage at a current of 168mA with a maximum output power of 5W. It accepts a wide input voltage range from 9V to 36V, suitable for use in multiple power environments.

This device is housed in an ultra-compact surface mount package with dimensions of 13.2mm length, 9.1mm width, and 9.9mm depth, enabling efficient board space utilization. It features two fully regulated outputs, ensuring stable power delivery for sensitive electronics.

The converter provides high input/output isolation voltage rated at 1.6kV, safeguarding circuits from voltage spikes and interference. With an efficiency of approximately 84%, it operates reliably up to 75°C ambient temperature and as low as -40°C, making it ideal for rugged industrial and electronic applications including instrumentation, control systems, and communication equipment.

Additional features include short circuit protection, remote On/Off control, high mean time between failures (MTBF) of 2,960,000 hours, and no minimum load requirement on the input voltage. The wide 4:1 input voltage ratio further ensures compatibility with various power sources.

This DC/DC converter is suited for applications requiring compact, reliable, and efficient voltage conversion on printed circuit boards. It supports diverse industrial, laboratory, and embedded electronic system uses. The package facilitates easy integration without compromising performance.

The converter supports a wide input voltage range from 9V to 36V for versatile compatibility. It features two outputs with full regulation and high isolation voltage of 1500 VDC. Compact surface mount package measuring 13.2 x 9.1 x 9.9 mm ensures easy PCB integration.

Efficient operation with 84% efficiency and high MTBF of 2,960,000 hours guarantees reliability. Designed for operation in harsh environments with temperature range from -40°C to 75°C. Includes built-in short circuit protection and remote On/Off control.

Ultra-compact SMD form factor with fully regulated outputs suited for Industrial and Electronic applications. Backward compatible with a 4:1 input voltage ratio and no minimum load required.

This TRACOPOWER DC/DC converter series offers reliable voltage conversion solutions suitable for industries including electronics manufacturing, instrumentation, communication infrastructure, and embedded control systems. Browse EnvMart's extensive range of DC/DC converters for compatible power solutions tailored to your technical needs.
