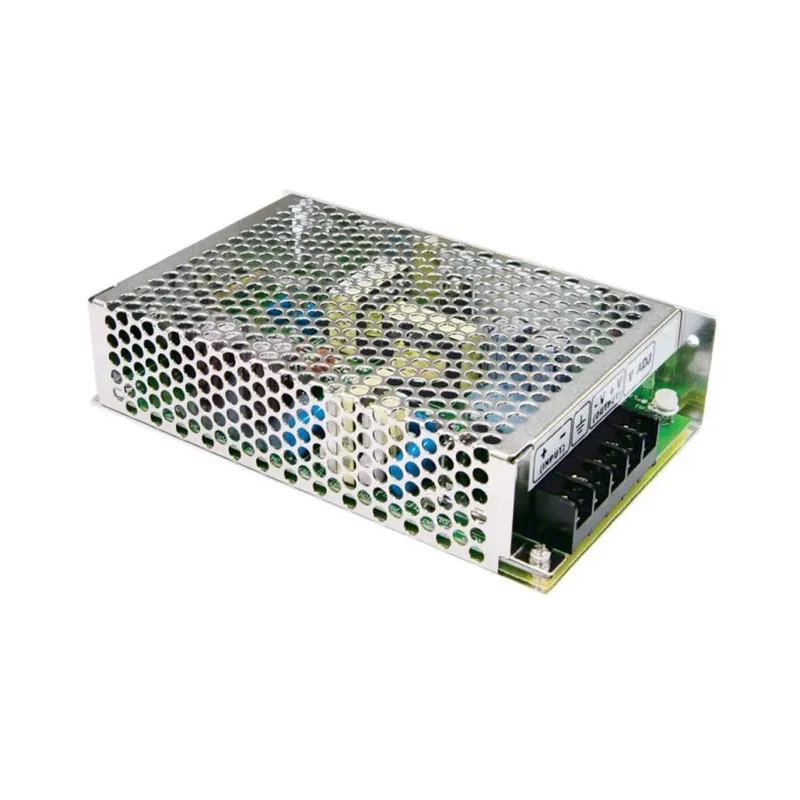

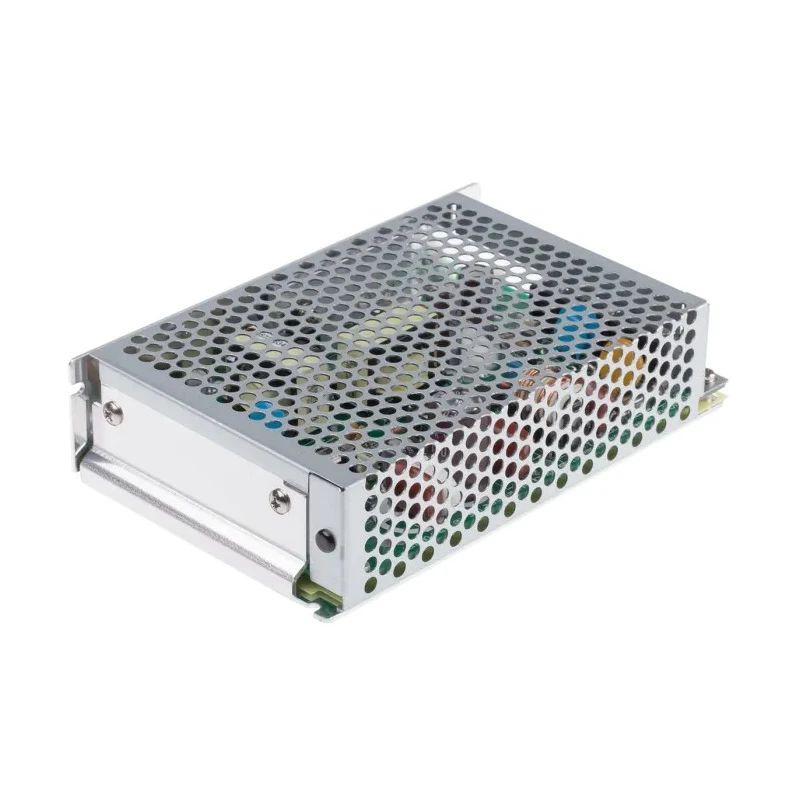

MEAN WELL 24V DC/DC Converter, 24V DC Input 2.1A, 19V Minimum Input, Chassis Mount, 50.4W Power, 60°C Max Temp SD-50B-24

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL 24V DC/DC Converter, 24V DC Input 2.1A, 19V Minimum Input, Chassis Mount, 50.4W Power, 60°C Max Temp SD-50B-24

Name: MEAN WELL 24V DC/DC Converter, 24V DC Input 2.1A, 19V Minimum Input, Chassis Mount, 50.4W Power, 60°C Max Temp SD-50B-24
Brand: MEAN WELL
SKU: 208701
Price: 63.46 USD
Availability: InStock



Category DC/DC Converter Brand MEAN WELL Condition New

Specifications

Country of Origin	India
Voltage	Converters / DC-DC Converters MEAN WELL SD-50 DC/DC Converter, 24V dc/, 24V dc I
Brand	MEAN WELL
Efficiency	80%
Length	159mm
Model	SD-50B-24
Depth	38mm
Gross Weight	430g
Width	97mm
Mount Type	Chassis
Series	SD-50
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-10°C
MTBF	3293100h
Number of outputs	1
Ripple and Noise	150mV Pk-Pk
Maximum Output Power	50.4W
Maximum Input Voltage	24V dc
Standards/Approvals	EN 61000-4-2, EN 55022Class B, ENV 50204
Minimum Input Voltage	19V
Output Voltage 1	24V dc
Output Current 1	2.1A
Output Voltage Adjustment Range	30 V
Isolation Voltage	1.5kV ac
Input Ratio	2:1
Input Ratio2	1
Wide 2	1 input voltage range

Key Features

Provides regulated single output of 24V DC at 2.1A current suitable for various electronic applications.
Features a wide input voltage range from 19V to 24V DC ensuring flexible operation.
Chassis mount type enables easy and secure installation in systems requiring robust mounting.
Compact with dimensions 159mm length, 97mm width, and 38mm depth for versatile fitting.
High efficiency of 80% minimizes energy losses during operation.
Designed to operate in temperatures from -10°C up to 60°C for stable performance.
Includes protection features such as short circuit, overload, and overvoltage safeguards.
Isolation voltage rating of 1.5kV AC ensures safe separation between input and output circuits.

Product Description

MEAN WELL SD-50B-24 is a high-reliability 24V DC/DC converter engineered for industrial and electronic applications requiring regulated isolated power. It accepts a DC input voltage range from 19V to 24V and provides a stable 24V DC output at 2.1A current, delivering a maximum output power of 50.4W.

This compact unit features a chassis mount type design measuring 159mm in length, 97mm in width, and 38mm in depth, ideal for integration into control panels or embedded systems. The device assures efficiency of up to 80%, optimizing power consumption while generating minimal heat.

The converter operates reliably within a temperature range of -10°C to 60°C, suitable for diverse environments. It includes protections against short circuit, overload, and overvoltage conditions, enhancing system safety. The 1.5kV AC input to output isolation maintains electrical separation for noise reduction and personnel protection.

Low output ripple and noise of 150mV peak-to-peak ensure clean power delivery to sensitive electronic loads. With an MTBF of over 3 million hours, the SD-50B-24 guarantees long service life and dependable operation in industrial, electronic, and automation systems.

Provides stable and isolated 24V DC output at 2.1A current. Wide 19V to 24V DC input voltage range for flexible system integration. Chassis mount design facilitates secure installation. Compact dimensions suitable for confined spaces.

High energy efficiency reduces operational costs. Operates efficiently across -10°C to 60°C ambient temperatures. Protection circuitry ensures safety and reliability. 1.5kV AC isolation enhances safety and noise immunity.

Low ripple and noise output compatible with sensitive electronics. Extensive MTBF confirms robust long-term performance.

This MEAN WELL DC/DC Converter is ideal for use in industrial automation equipment, electronic devices, instrumentation, telecommunications, and manufacturing systems requiring dependable isolated power conversion. EnvMart offers a full range of power supply and voltage converter solutions for diverse industrial and electronic applications.
