ASSMANN WSW 40-Way IDC Connector Male for Cable, 2 Row, 250V AC, 3A Current AWLP 40/3,2-T

Free Delivery in India | Lowest Global Shipping Charges

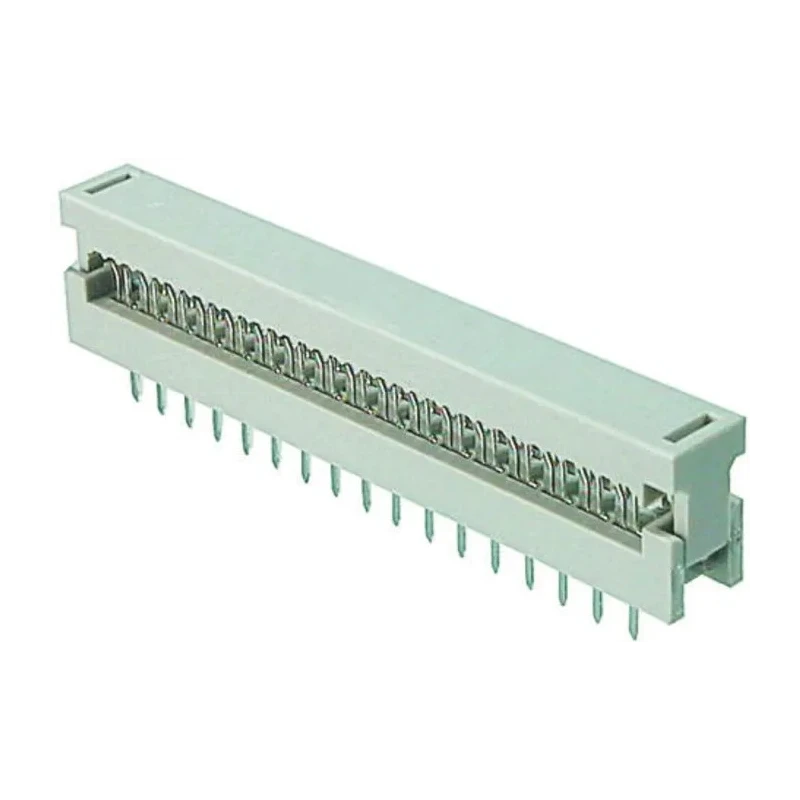

ASSMANN WSW 40-Way IDC Connector Male for Cable, 2 Row, 250V AC, 3A Current AWLP 40/3,2-T

Name: ASSMANN WSW 40-Way IDC Connector Male for Cable, 2 Row, 250V AC, 3A Current AWLP 40/3,2-T
Brand: ASSMANN WSW
SKU: 208330
Price: 1.05 USD
Availability: InStock



Category IDC Connector Brand ASSMANN WSW Condition New

Specifications

Country of Origin	China
Voltage	250V ac
Brand	ASSMANN WSW
Orientation	Straight
Current	3A
Model	AWLP 40/3,2-T
Mount Type	Cable
Housing Material	Polybutylene Terephthalate
Contact Material	Brass
Series	AWLP
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Tin, Nickel
Number of Contacts	40
Contact Gender	Female
Connector Gender	Male
Shrouded/Unshrouded	Unshrouded

Key Features

Features 40 contacts arranged in 2 rows for secure connections.
Designed for cable mounting with a straight orientation.
Contact material is brass with tin and nickel plating for corrosion resistance.
Operating temperature ranges from -40°C to 105°C, ensuring reliable performance.
Housing is made of durable polybutylene terephthalate for electrical insulation.
Termination is by solder type, suitable for PCB connections.
Connector is unshrouded with male gender for cable interfacing.
Complies with AWLP series standards for industrial applications.

Product Description

ASSMANN WSW AWLP 40/3,2-T is a 40-way IDC Connector featuring a male interface designed for cable applications, arranged in 2 rows. It supports an operating voltage of 250V AC and a current rating of 3A, making it suitable for a variety of electronic and industrial control connections.

The connector has a 2.54mm pitch which ensures compatibility with standard IDC interfaces and is intended for cable mounting. Its straight orientation and unshrouded design facilitate easy insertion and effective mating in complex cable assemblies.

The contacts are manufactured from brass and plated with tin and nickel to provide good electrical conductivity and corrosion resistance. The housing is constructed from polybutylene terephthalate, which offers excellent electrical insulation, durability, and high-temperature resistance from -40°C to 105°C.

Termination is by soldering allowing secure attachment to printed circuit boards or wires. The male connector gender complements female IDC contacts to form reliable electrical connections in industrial, electronic component manufacturing, and power distribution systems.

Features 40 contacts arranged in 2 rows for secure connections. Designed for cable mounting with a straight orientation. Contact material is brass with tin and nickel plating for corrosion resistance. Operating temperature ranges from -40°C to 105°C, ensuring reliable performance.

Housing is made of durable polybutylene terephthalate for electrical insulation. Termination is by solder type, suitable for PCB connections. Connector is unshrouded with male gender for cable interfacing. Complies with AWLP series standards for industrial applications.

This product is ideal for use in electronic industry applications including control cabinets, power equipment, and manufacturing automation systems requiring reliable IDC cable connections. Its robust design supports industrial and laboratory environments.
