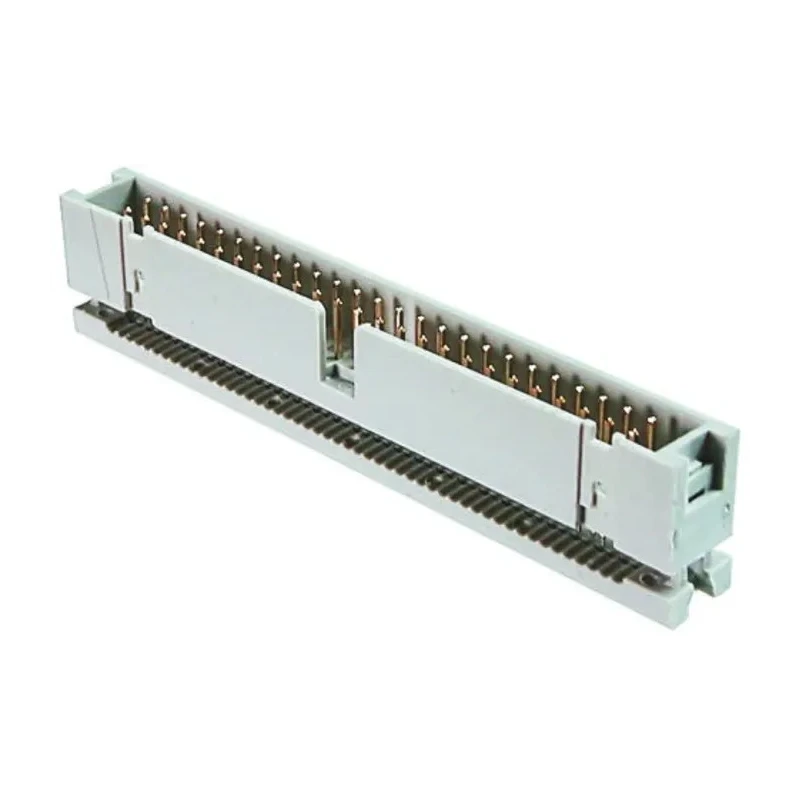

ASSMANN WSW 40-Way IDC Connector Male for Cable, 2 Row, 250V AC, 1A Current, Tin Nickel Gold Plating AWHC 40-0111-T

ASSMANN WSW AWHC 40-0111-T is a 40-way IDC connector male designed for cable mounting with two rows of contacts. It supports operating voltages up to 250V AC and a current rating of 1A, making it suitable for various industrial, electronics, and power connector applications. The connector is a shrouded IDC box header style with male contact gender and right-angle orientation, ideal for tight circuit board placements and reliable wire-to-board connections.

The contacts are made from brass and plated with tin, nickel, and gold, which ensures excellent conductivity and resistance to corrosion over prolonged use. The housing utilizes polybutylene terephthalate, a robust engineering plastic, ensuring durability and stability under mechanical and thermal stress.

Designed to operate within a temperature range of -40°C to 105°C, this connector is suited for demanding environmental conditions often found in manufacturing, automation, and electronic assembly lines. The 2.54mm pitch between contacts follows the industry standard for IDC connectors, providing compatibility with a wide range of PCB layouts and cable types.

This ASSMANN WSW IDC connector series AWHC facilitates efficient, error-reducing cable harness assembly and maintenance due to its shrouded design and clear contact layout. It is commonly used in electronic components, power connectors, and wire housing assemblies within industrial, automotive, and HVAC systems.

The connector features 40 contacts arranged in 2 rows for compact and reliable wiring. It is a shrouded IDC type with male gender contacts, suitable for cable mounting. The pitch between contacts is standard 2.54mm for PCB compatibility.

The contact plating combines tin, nickel, and gold to ensure long-term corrosion resistance and conductivity. Constructed with brass contacts and polybutylene terephthalate housing for durability. Operates reliably in temperatures ranging from -40°C to 105°C.

The connector orientation is right angle, facilitating easy insertion in tight spaces. Suitable for electronics, power, and connector applications in industrial and manufacturing contexts. Manufactured in China under the ASSMANN WSW series AWHC, suitable for various electrical and electronic wire harness setups.
