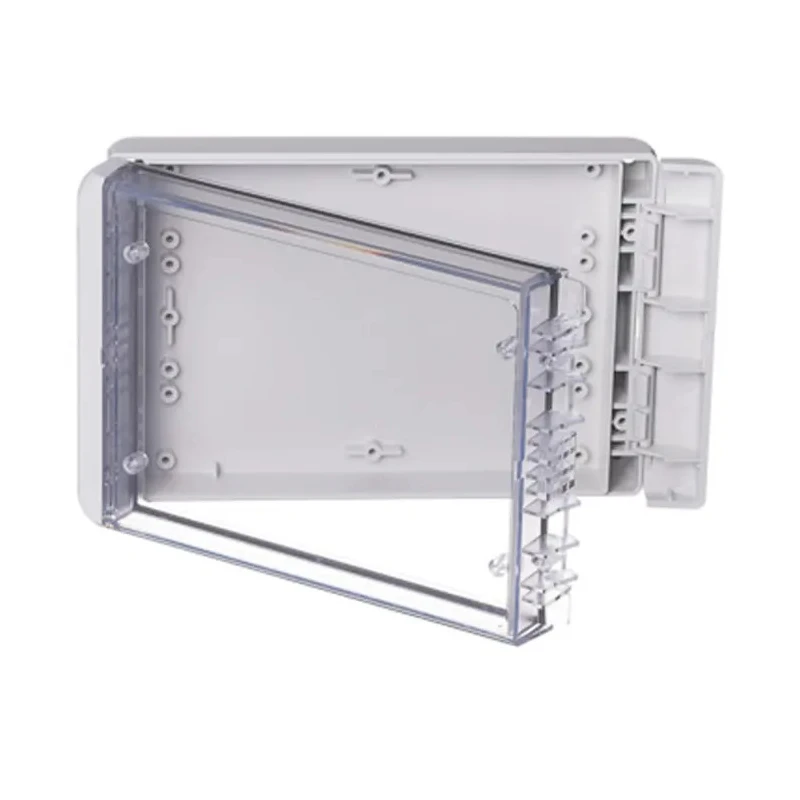

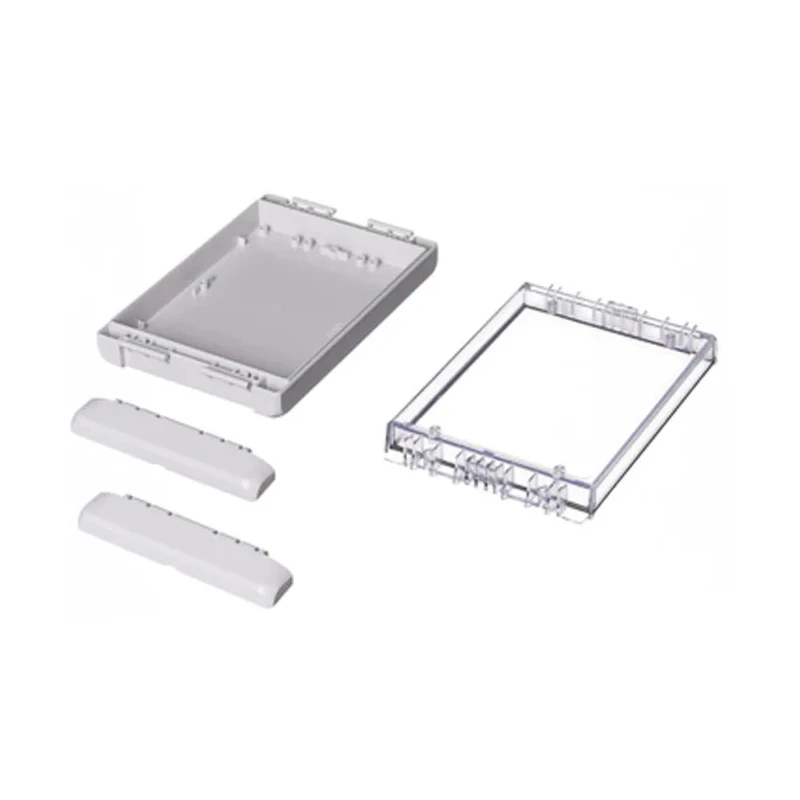

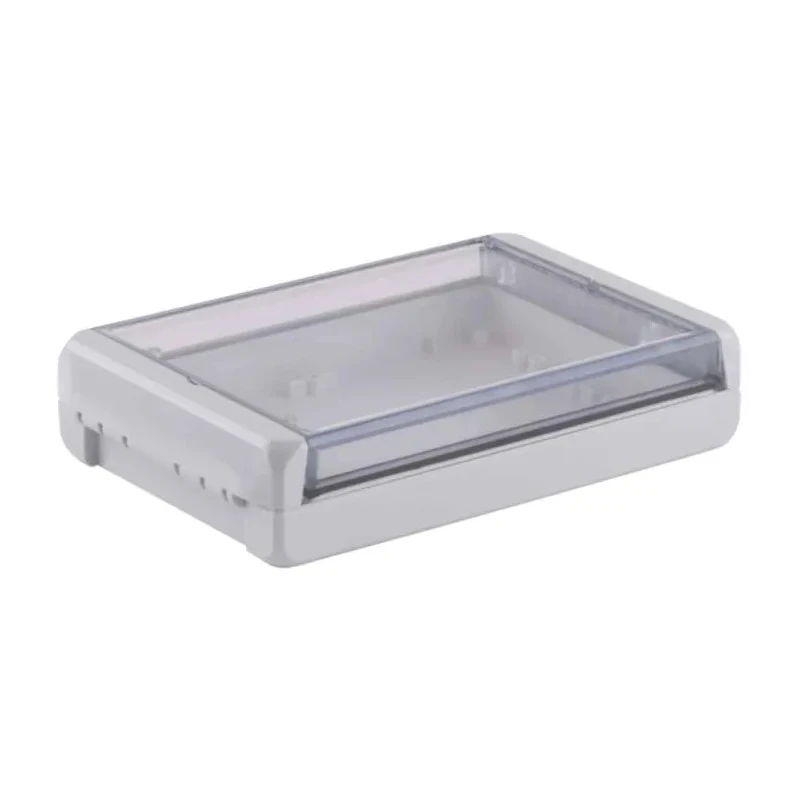

Bopla Bocube Series Light Grey Transparent Lid Polycarbonate Enclosure, IP68 IP66 IK07 40mm x 96024245 B 181304 PC-V0-G-7035

Bopla 96024245 B 181304 PC-V0-G-7035 Bocube Series polycarbonate enclosure offers a dedicated solution for housing electronics and switchgear in severe environmental conditions. Constructed from flame-retardant UL 94 V0 polycarbonate material with a foamed polyurethane gasket, it meets industry standards including IP68, IP66 for dust and water ingress protection and IK07 for impact resistance.

With external dimensions of 40 mm height, 125 mm width, and 191 mm length, this enclosure is suited for compact assembly needs in both industrial and office settings. Its light grey (RAL7035) body is complemented by a transparent hinged lid, enabling easy monitoring of internal components without opening. The enclosure’s patented quick-release hinge allows fast tool-free access while also supporting secure closure with screws if needed.

Designed for adaptability, the enclosure provides a recessed membrane keypad area integrated into the lid and base for mounting PCBs and front panels. This large mounting area accommodates connectors, cable glands, and operating elements effectively. Although the product has no knockouts, it is compatible with optional Bopla wall brackets and an 11 mm pressure compensation element to facilitate ventilation and installation.

This enclosure is fully recyclable and compliant with RoHS environmental standards. The protection ratings (IP66/IP68) mean it can be submerged up to 1.2 m for 2 hours, making it reliable for cable management, IT/server equipment housings, solar power battery enclosures, telecommunications, oil and gas environments, and food and beverage industries.

The sturdy construction with foam sealed lid offers protection against unauthorized entry with an optional lead seal. The product weight is approximately 220 grams, emphasizing its lightweight yet robust build.

The enclosure is made of UL 94 V0 flame resistant polycarbonate with a foamed polyurethane seal. It features an IP68 and IP66 ingress protection rating with IK07 impact resistance. Dimensions are 40 mm height, 125 mm width, and 191 mm length, suitable for compact electronic assemblies.

Equipped with hinged quick-release latches allowing tool-free lid opening and closing. Includes a recessed membrane keypad area for mounting front panels or PCBs in lid and base. Light grey body conforms to RAL7035 color standard with a transparent lid for easy visibility.

Designed to be recyclable and RoHS compliant for environmental safety. Zero knockouts for cable entry, compatible with optional wall brackets and pressure compensation elements. Ideal for cable/wire management, IT/server enclosures, telecommunications, solar battery applications, and industrial use.
