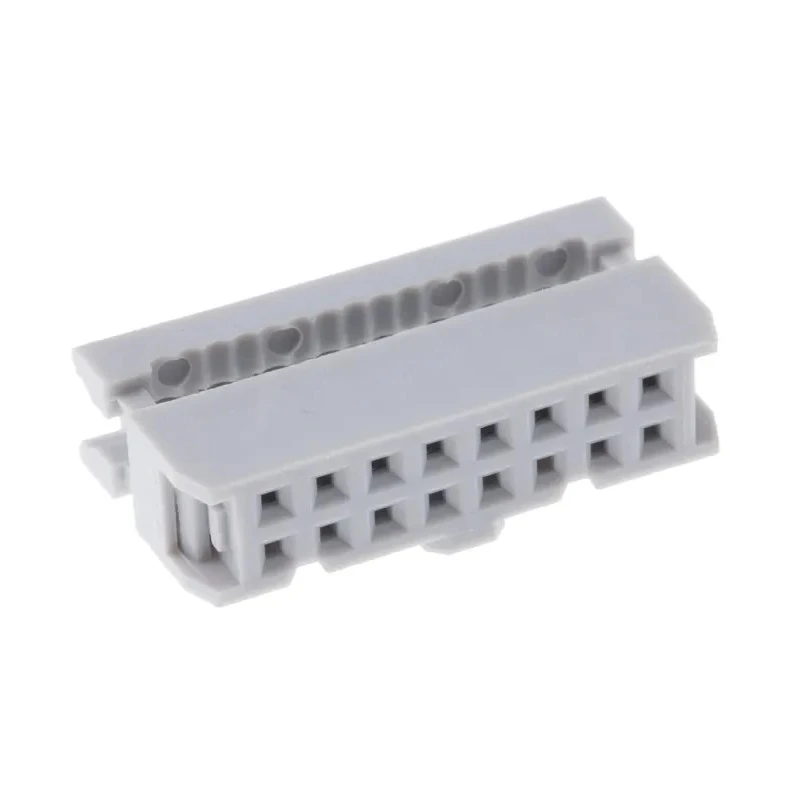

ASSMANN WSW 16-Way IDC Connector Female for Cable, 2 Row, 250V AC, 3A Current, Gold Nickel Plating AWP 16-7240-T

ASSMANN WSW AWP 16-7240-T is a 16-way female IDC connector specifically designed for cable mounting in industrial and electronic applications. Featuring a double-row configuration with a 2.54mm pitch and a right-angle orientation, this connector enables efficient and secure connections with IDC ribbon cables in devices requiring reliable interconnections.

The housing is made of Polybutylene Terephthalate (PBT), a durable plastic with UL94V-0 flame retardant rating, providing safety and stability during operation. The brass contacts are plated with gold and nickel, which enhances electrical conductivity and prevents corrosion, ensuring long-term performance. This connector supports a maximum current of 3A at 250V AC, making it suitable for various low power electronic assemblies and industrial machinery wiring.

Its operating temperature range from -40°C to 105°C allows deployment in harsh environments with significant thermal variations. The right-angle mount type facilitates compact PCB designs where space optimization is critical. Additionally, the IDC termination type ensures rapid and reliable cable assembly without soldering, reducing production time.

This IDC Connector is widely used in automated manufacturing equipment, electronic control systems, and instrumentation panels. It offers precise alignment with central polarization, preventing incorrect insertion and ensuring consistent mating. Produced in China, it meets industry standards although no specific approval certifications are listed.

Features 16 female contacts in a double-row layout for effective cable interfacing. Gold and nickel plating on contacts ensure durability and excellent electrical conduction. PBT housing material with flame retardant properties enhances safety and reliability.

Supports current up to 3 Amperes at a voltage of 250V AC. Suitable for industrial, laboratory, automation, and electronic equipment applications. Right angle orientation and cable mount type for flexible installation options.

Operates in extreme temperatures from minus 40 to 105 degrees Celsius. IDC termination type simplifies cable connection with ribbon cables. Explore the extensive range of connectors and electronic components on EnvMart to find compatible and complementary products for your projects.
