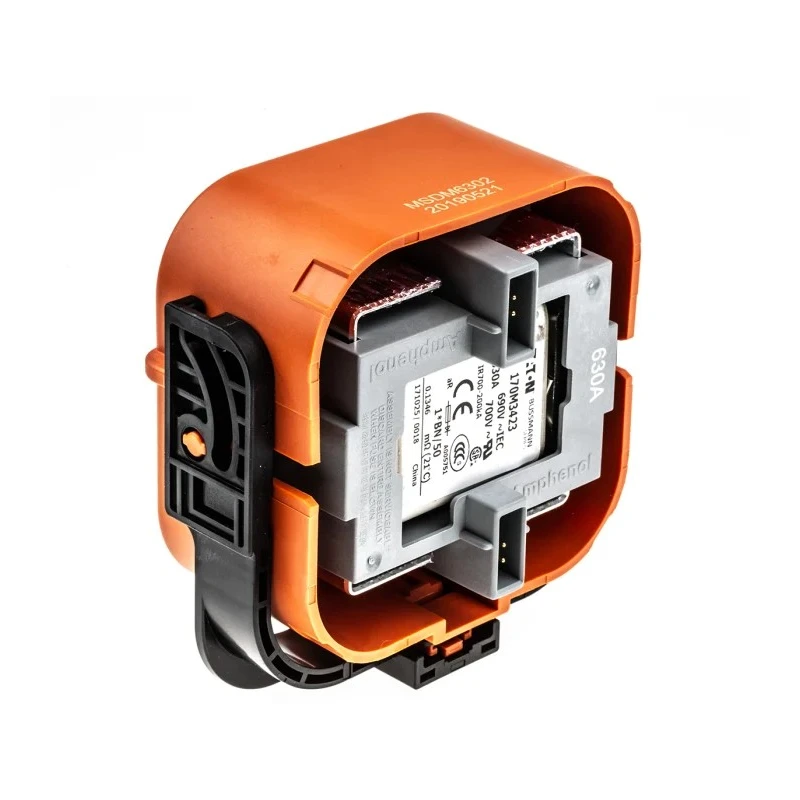

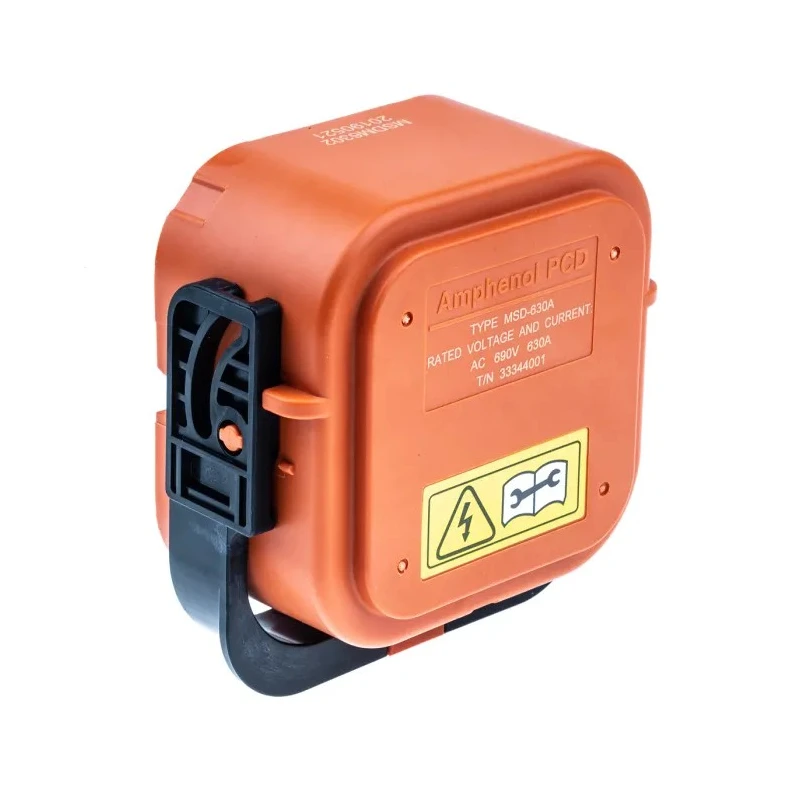

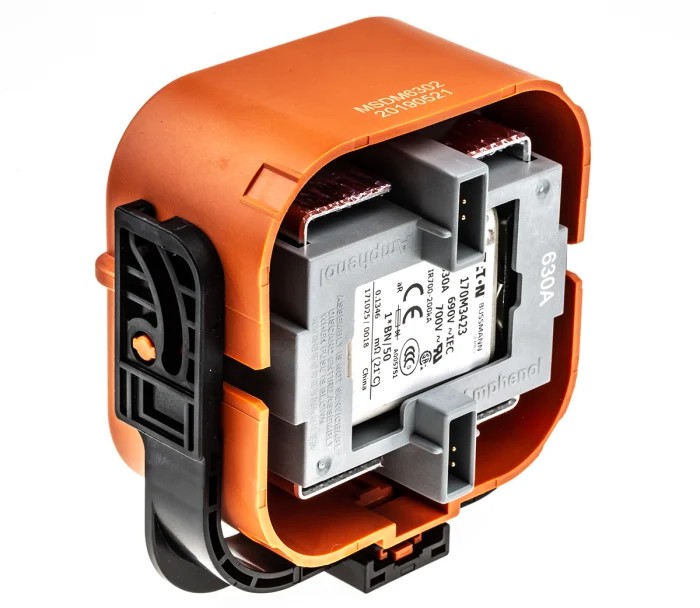

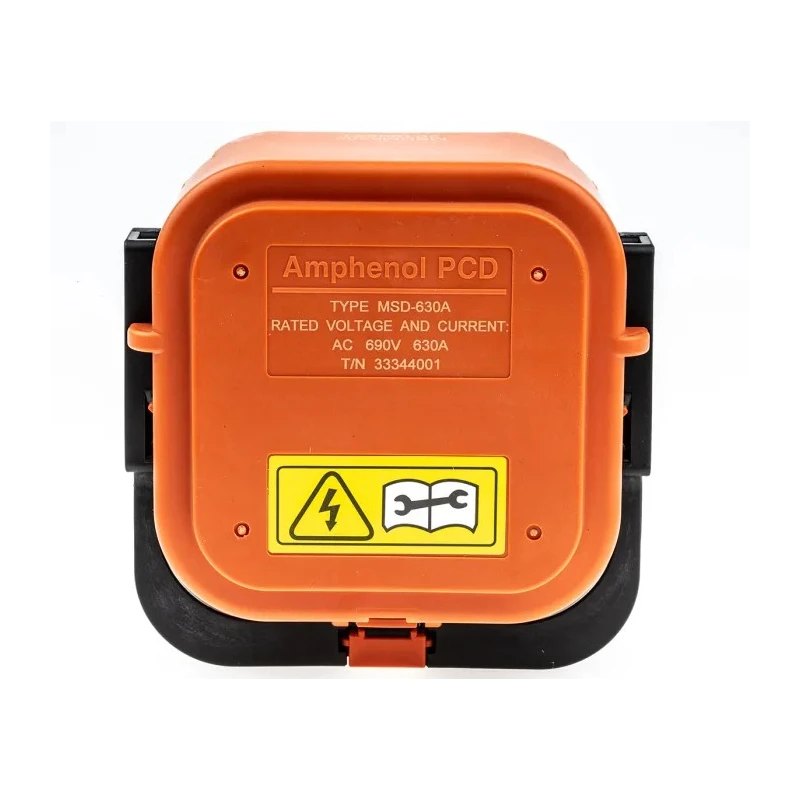

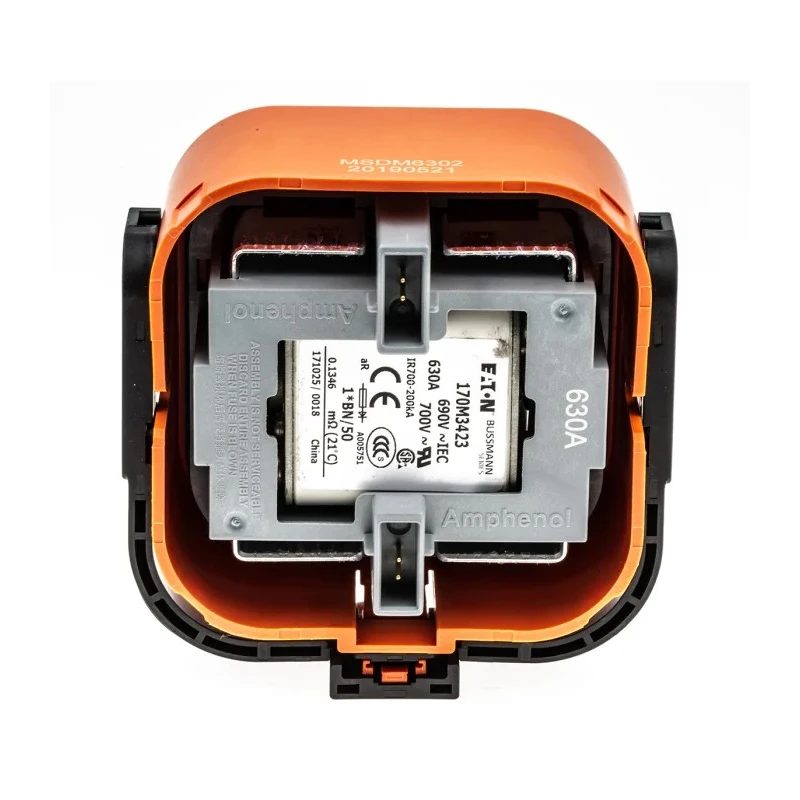

Amphenol Industrial Plug-In EV Service Disconnect, 630A, 690V, Flange Mount, HV Battery Pack, Male, IP69K/IP67, MSDM6302
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 690V |
| Brand | Amphenol Industrial |
| Colour | Orange |
| Orientation | Straight |
| Height | 103mm |
| Model | MSDM6302 |
| Depth | 62mm |
| IP Rating | IP69K, IP67 |
| Connector Type | Manual Service Disconnect |
| Width | 105.5mm |
| Mount Type | Flange |
| Standards | USCAR-2. USCAER-37, LV-215 |
| Current Rating | 630A |
| Series | MSD |
| Durability | Over 50 mating cycles |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| For Use With | HV Battery Pack |
| Contact Gender | Male |
| Connector Gender | Male |
| Better World Claim | Renewable Energy Solution |
| Termination Method | Plug-In |
Key Features
- Suitable for disconnecting high voltage battery packs without specialist tools.
- Rated for 630A current and 690V operating voltage for powerful EV battery connections.
- Provides robust ingress protection with IP69K and IP67 ratings.
- Operates reliably in temperatures from -40°C to 70°C for harsh environments.
- Plug-in termination with male connector, orange colour, flange mounting style.
- Features High Voltage Interlock Loop (HVIL) and manual service disconnect operation.
- Ensures battery protection against short circuit and safe maintenance operations.
- Durable for over 50 mating cycles, supporting repeated servicing needs.
Product Description
The Amphenol Industrial MSDM6302 EV Service Disconnect is a high-performance connector specifically engineered for electric vehicle applications, offering safe and efficient disconnection of high voltage battery packs. This plug-in disconnect enables users to isolate battery packs without requiring specialist tools, facilitating safer maintenance and repair operations.
Equipped with a two-stage lever mechanism and a High Voltage Interlock Loop (HVIL), the MSDM6302 ensures the HVIL circuit is opened prior to separating HV contacts, minimizing risk and preventing accidental short circuit events. Its robust construction provides exceptional reliability for EV service environments.
With a current rating of 630A and 690V operating voltage, this connector is designed to handle demanding power requirements for hybrid and electric vehicle battery packs. The device achieves a high level of ingress protection, being rated IP69K and IP67, making it suitable for outdoor and industrial settings where exposure to dust, water, and contaminants is expected.
Operational temperature ranges from -40°C to 70°C, ensuring the connector performs reliably under extreme conditions. The manual service disconnect is flange-mounted with plug-in termination and features a male contact with orange housing for clear identification and safety compliance.
Compliance with standards including USCAR-2, USCAER-37, and LV-215 attests to its suitability for global automotive and industrial regulatory requirements. Its durability allows for over 50 mating cycles, making it ideal for repeated servicing in fleet operations and manufacturing environments.
Designed for use with HV battery packs, the MSDM6302 is straight in orientation and compact, with dimensions of 105.5mm width, 103mm height, and 62mm depth. It finds applications in electric vehicle manufacturing, battery service centers, renewable energy systems, heavy-duty industrial electronics, and automotive maintenance workshops.
Explore more innovative Industrial Power Connectors and EV service products from Amphenol Industrial in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Amphenol Industrial MSDM6302 has a current rating of 630A and an operating voltage of 690V, making it suitable for high power applications in electric vehicles.
This model is rated IP69K and IP67, providing robust protection against dust and water ingress, suitable for outdoor and industrial environments.
It operates reliably in temperatures ranging from -40°C to 70°C, ensuring performance under extreme conditions.
The MSDM6302 is a manual service disconnect connector designed for high voltage battery packs, featuring a male contact.
This unit features a flange mounting style, allowing for secure installation in various applications.
It is designed for over 50 mating cycles, making it suitable for repeated servicing in fleet operations and manufacturing environments.
This model complies with standards including USCAR-2, USCAER-37, and LV-215, ensuring its suitability for automotive and industrial applications.
The housing of this connector is orange, which aids in clear identification and safety compliance.
This connector has a straight orientation, which is typical for many industrial applications.
The MSDM6302 utilizes a plug-in termination method, allowing for easy connection and disconnection.
This connector is suitable for applications in electric vehicle manufacturing, battery service centers, renewable energy systems, and automotive maintenance workshops.
The MSDM6302 is manufactured in Germany, ensuring compliance with European quality standards.
