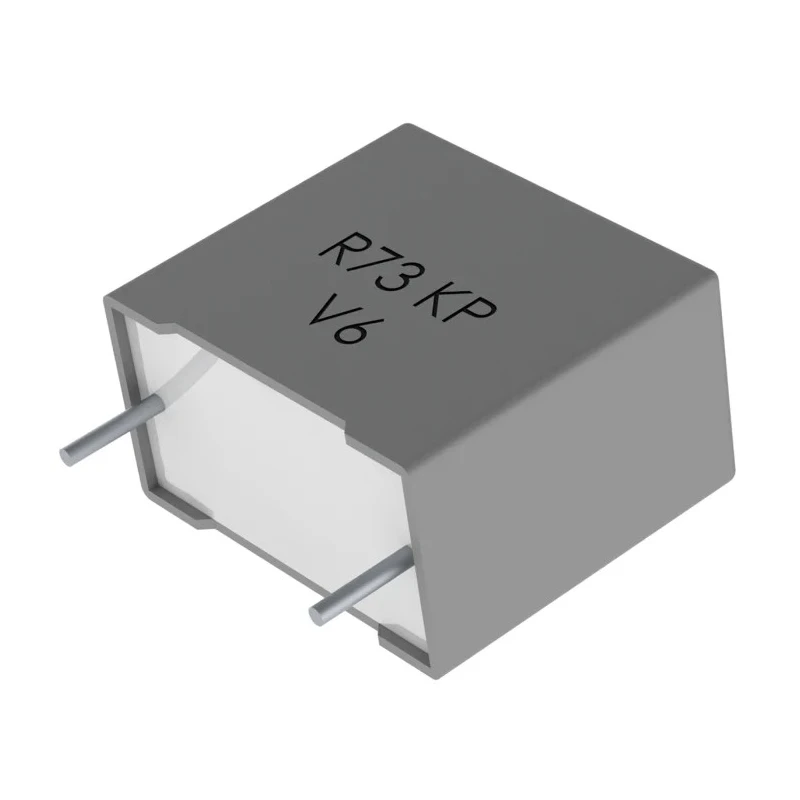

KEMET R73 Film Capacitor, ±5 % Tolerance, 4.7 nF Capacitance, 2 kV DC, 500 V AC, Through Hole Mount R73UN1470SE00J

The KEMET R73UN1470SE00J film capacitor is a high-quality passive electronic component designed for precision applications requiring stable capacitance and high voltage performance. Featuring a capacitance of 4.7 nF with ±5 % tolerance, it is suitable for use in tuning circuits, timing networks, filter networks, and high-performance pulse handling applications. This capacitor supports rated DC voltage of 2 kV and AC voltage of 500 V, ensuring robust operation in demanding electrical environments.

Its construction with a plastic encapsulation meeting UL94V-0 self-extinguishing standards provides flame resistance and reliability. The component is mounted through hole with a 22.5 mm lead pitch and 4 mm lead length, facilitating easy insertion in printed circuit boards. The capacitor's operating temperature range spans from -55°C up to 105°C, making it suitable for both industrial and automotive applications.

This capacitor is compliant with the automotive AEC-Q200 standard, indicating suitability for automotive electronics and harsh environments. Additionally, the component meets IEC 60286-2 and RoHS requirements, guaranteeing safety, environmental compliance, and quality. Its compact physical dimensions - 16 mm height, 26.5 mm length, and 7 mm width - with 0.8 mm lead diameter allow for space-efficient PCB layouts.

Typical use cases include industrial electronics, automotive control systems, telecommunications, and power supplies. The R73 series is widely recognized for its reliability in pulse and high-frequency circuits where precise capacitance and voltage endurance are critical.

Constructed for high frequency and pulse handling applications. Encapsulated in self-extinguishing plastic case compliant with UL94V-0. Lead pitch of 22.5 mm and lead length of 4 mm for PCB assembly compatibility. Operational temperature range from -55°C to 105°C.

Meets automotive standard AEC-Q200 for reliable use in automotive electronics. Complies with IEC 60286-2 and RoHS standards for safety and environmental compliance. Physical dimensions: Height 16 mm, Length 26.5 mm, Width 7 mm, Lead diameter 0.8 mm.

Rated for 500 V AC and 2 kV DC voltage endurance. Explore more Film Capacitors and electronic components on EnvMart for your industrial, automotive, telecommunications, and power supply design needs.
