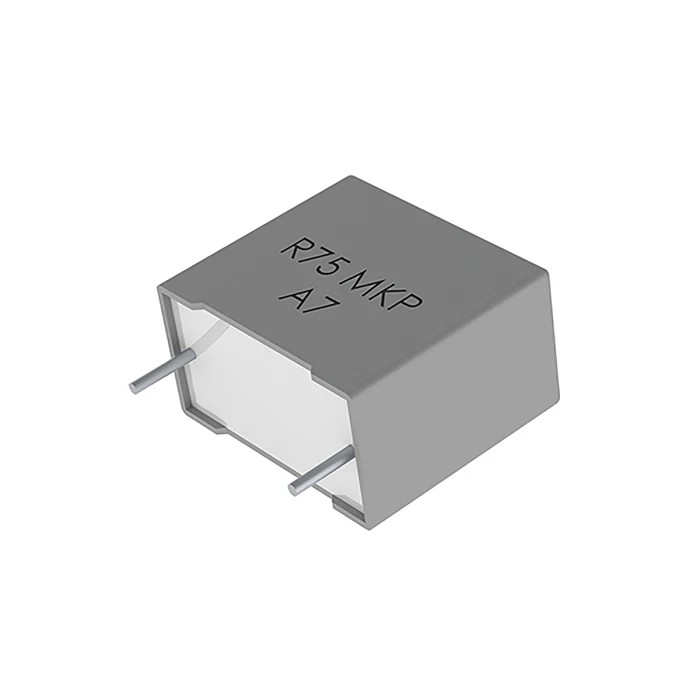

KEMET R75 Film Capacitor, ±5 % Tolerance, 100 nF Capacitance, 600 V DC, 600 V AC, Through Hole Mount R75RN31004030J

KEMET R75RN31004030J is a high-quality film capacitor from the R75 series, constructed from metallized polypropylene film designed to provide excellent electrical performance with self-healing capability. Its radial lead configuration with tin wire leads ensures secure and reliable mounting in through hole applications.

The capacitor is encased in a solvent-resistant, self-extinguishing plastic housing made from thermosetting resin, providing robust mechanical protection and enhanced durability. The operating temperature range from -55°C to +105°C allows use in demanding environments, including automotive and industrial electronics.

This component is compliant with RoHS and IEC 60286-2 standards and meets the automotive AEC-Q200 specification, making it suitable for automotive system applications requiring high reliability. The rated AC and DC voltages are both 600 V, making it versatile for various power electronics circuits.

The capacitor’s dimensional specifications include a lead pitch of 22.5 mm, lead length of 30 mm, lead diameter of 0.8 mm, and overall package dimensions of approximately 26.5 mm length, 18.5 mm height, and 10 mm width, suitable for compact PCB layouts. The dissipation factor of 0.25% ensures minimal energy loss, improving efficiency in signal filtering, coupling, and decoupling functions.

The R75 series covers a wide voltage range from 160 V to 2000 V DC and capacitance from 220 pF to 33 μF with tolerances of ±5%, ±10%, and ±20%, providing flexibility for diverse electronic designs. This particular model offers a capacitance of 100 nF with a ±5% tolerance rating.

This capacitor is ideal for industrial, automotive, and consumer electronics, particularly in circuits requiring stable capacitance at high frequencies and voltages. It supports high-frequency applications with radial lead design for through hole mounting.

Choose KEMET R75RN31004030J for dependable performance in power and passive electronic component assemblies. Explore more Film Capacitors in the Electronics Components category at EnvMart to find compatible parts for your designs.

Constructed with metallized polypropylene film providing self-healing properties. Encapsulated in a solvent-resistant, self-extinguishing plastic case with thermosetting resin. Radial leads of tinned wire electrically welded to the capacitor winding ends.

Rated operating temperature range from -55°C to +105°C suitable for high frequency applications. Complies with RoHS and IEC 60286-2 standards and meets automotive AEC-Q200. Lead pitch of 22.5 mm with lead length of 30 mm and diameter of 0.8 mm.

Dimensions approximately 26.5 mm length, 18.5 mm height, and 10 mm width. Dissipation factor is 0.25%, ensuring low energy loss during operation. Browse EnvMart’s Electronics Components category to access premium capacitors and related passive components.
