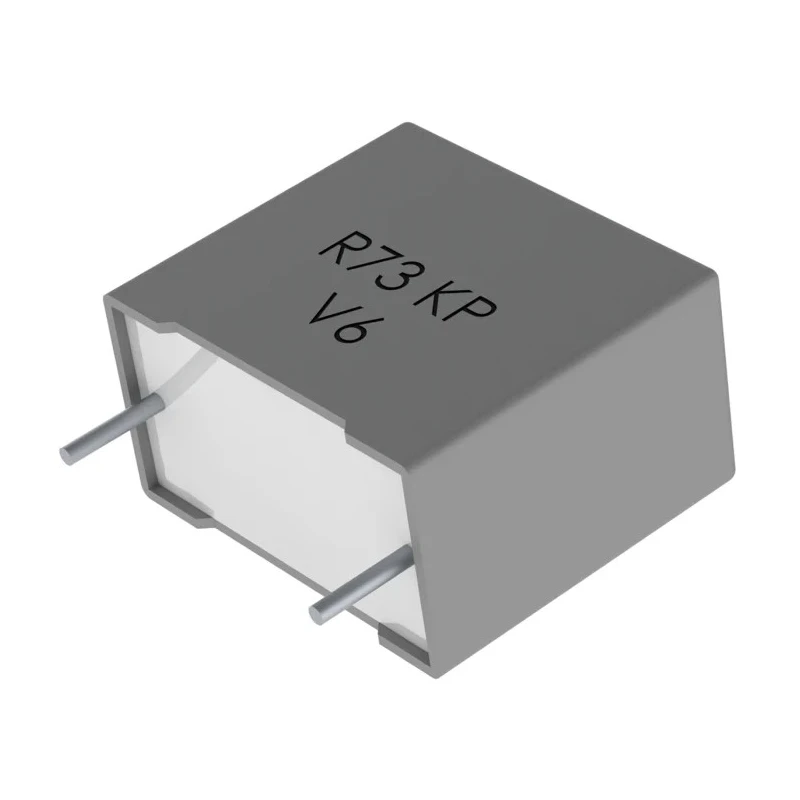

KEMET R73 Film Capacitor 22nF ±5% 630V DC 300V AC Through Hole R73PI2220SE00J
Specifications
| Country of Origin | India |
|---|---|
| Brand | KEMET |
| Height | 13.5mm |
| Length | 18mm |
| Model | R73PI2220SE00J |
| Packaging | Bag |
| Width | 7.5mm |
| Mount Type | Through Hole |
| Series | R73 |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±5 % |
| Capacitance | 22nF |
| Minimum Operating Temperature | -55°C |
| Lead Length | 4mm |
| Standards/Approvals | RoHS, IEC 60286-2 |
| Package/Case | Plastic |
| Pin Count | 2 |
| Rated AC Voltage | 300V ac |
| Rated DC Voltage | 630V dc |
| Lead Pitch | 15mm |
| Lead Diameter | 0.8mm |
| Automotive Standard | AEC-Q200 |
Key Features
- Offers 22nF nominal capacitance for high frequency applications.
- ±5% tolerance ensures stable and accurate performance.
- Rated for up to 630V DC and 300V AC for versatile circuit integration.
- Through hole mounting with radial design and 15mm lead pitch for easy PCB installation.
- Encapsulated in self-extinguishing plastic case meeting UL94V-0 requirements for improved safety.
- Suitable for timing networks, filter circuits, and high performance pulse handling.
- Complies with RoHS and IEC 60286-2 standards.
- Operating temperature range from -55°C to +105°C.
Product Description
The KEMET R73PI2220SE00J Film Capacitor is a high-quality passive electronic component designed for demanding circuit applications. Featuring a nominal capacitance of 22nF and a tight ±5% tolerance, this capacitor delivers precise performance in tuned circuits, timing networks, filter networks, and high-performance pulse handling environments.
Rated for a maximum of 630V DC and 300V AC, the R73 series offers flexibility for integration into both power and signal applications. Its radial through hole configuration with a 15mm lead pitch allows secure and straightforward PCB assembly. The plastic enclosure, meeting UL94V-0 self-extinguishing safety standards, ensures robust protection against electrical and thermal risks.
With a lead length of 4mm and lead diameter of 0.8mm, the capacitor fits seamlessly in a variety of board layouts. It supports applications in industrial, automotive, and laboratory systems due to its compliance with AEC-Q200 automotive standard and RoHS directive, making it suitable for both general and high-frequency circuits.
The wide operating temperature range from -55°C to +105°C enables reliable performance in environments requiring exceptional thermal stability. Its compact dimensions - 18mm length, 13.5mm height, and 7.5mm width - allow for space-efficient installation.
Ideal for professional electronic designs, the KEMET R73PI2220SE00J stands out for its pulse-handling capacity and stable electrical characteristics, supporting advanced manufacturing, industrial automation, and power electronics use cases.
Offers 22nF nominal capacitance for high frequency applications. ±5% tolerance ensures stable and accurate performance. Rated for up to 630V DC and 300V AC for versatile circuit integration. Through hole mounting with radial design and 15mm lead pitch for easy PCB installation.
Encapsulated in self-extinguishing plastic case meeting UL94V-0 requirements for improved safety. Suitable for timing networks, filter circuits, and high performance pulse handling. Complies with RoHS and IEC 60286-2 standards.
Operating temperature range from -55°C to +105°C. AEC-Q200 automotive standard for enhanced reliability. Explore more industrial capacitors and KEMET products in the Film Capacitor category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a nominal capacitance of 22nF, making it suitable for high-frequency applications.
It is rated for a maximum of 630V DC and 300V AC, allowing for versatile circuit integration.
The capacitor has a tolerance of ±5%, ensuring stable and accurate performance in various applications.
The dimensions of this unit are 18mm in length, 13.5mm in height, and 7.5mm in width.
It features a lead pitch of 15mm, which facilitates easy PCB installation.
The operating temperature range is from -55°C to +105°C, allowing for reliable performance in various environments.
This model utilizes a through hole mounting design, suitable for secure PCB assembly.
It complies with RoHS and IEC 60286-2 standards, ensuring it meets necessary environmental and safety requirements.
The lead length is 4mm and the lead diameter is 0.8mm, making it compatible with various board layouts.
Yes, it complies with the AEC-Q200 automotive standard, enhancing its reliability for automotive use.
It is packaged in a bag, ensuring safe delivery and storage.
This capacitor is suitable for timing networks, filter circuits, and high-performance pulse handling applications.
