ASSMANN WSW 25 Way Straight Panel Mount D-Sub Connector A-DF 25 LL/G

Free Delivery in India | Lowest Global Shipping Charges

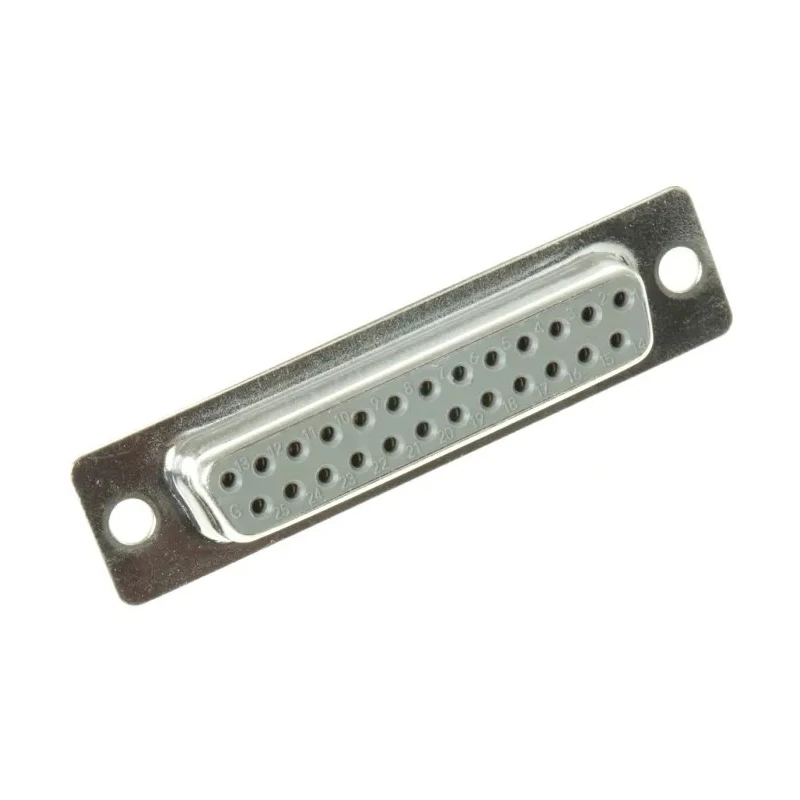

ASSMANN WSW 25 Way Straight Panel Mount D-Sub Connector A-DF 25 LL/G

Name: ASSMANN WSW 25 Way Straight Panel Mount D-Sub Connector A-DF 25 LL/G
Brand: ASSMANN WSW
SKU: 208239
Price: 3.86 USD
Availability: InStock



Category D-Sub Connector Brand ASSMANN WSW Condition New

Specifications

Country of Origin	China
Voltage	500V
Brand	ASSMANN WSW
Orientation	Straight
Current	3A
Model	A-DF 25 LL/G
Mount Type	Panel Mount
Housing Material	Metal
Contact Material	Phosphor Bronze
Series	A-DF
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Contact Plating	Gold
Number of Contacts	25
Contact Gender	Female
Connector Type D	D-Sub
D-Sub Shell Size	B

Key Features

Features 25 contacts supporting a maximum current of 3A.
Designed as a straight connector with panel mount type for secure installation.
Mounting flanges with 3.05mm holes ensure firm attachment.
Housing is made of metal for durability and shielding.
Operates reliably within temperatures ranging from -55°C to 105°C.
Contacts are phosphor bronze plated with gold plating for enhanced conductivity and corrosion resistance.
Connector supports operating voltage up to 500V.
Termination type is solder cup ensuring reliable contact connections.

Product Description

ASSMANN WSW A-DF 25 LL/G 25 Way Straight Panel Mount D-Sub Connector is designed for reliable and efficient electrical connections in industrial and electronic applications. This D-Sub Connector features 25 phosphor bronze contacts with gold plating, ensuring excellent conductivity and long service life.

The connector housing is made from durable metal, providing robust mechanical strength and shielding against electromagnetic interference. It has a panel mount type with mounting flanges featuring 3.05mm holes, facilitating secure fixing on panels and chassis.

Operating voltage rating is 500V with a maximum current of 3A, suitable for various power and signal transmission uses. The operating temperature range is wide, from -55°C up to 105°C, enabling performance in harsh environments including industrial, manufacturing, and HVAC control systems.

Contact termination uses solder cups for stable and reliable wiring connections. The female connector design complements corresponding male connectors in D-Sub assemblies.

This product is made in China under new condition standards. It is ideal for electronic components, power distribution panels, and computing system interfaces in laboratory, industrial, and commercial settings.

Features 25 high-quality contacts with gold-plated phosphor bronze material. Robust metal housing and panel mount configuration. Supports 3A current and 500V operating voltage. Operates reliably between -55°C and 105°C. Solder cup termination ensures secure contact wiring.

Widely used in industrial and electronic connector applications. Explore more connectors and electronic components compatible with your systems at EnvMart.
