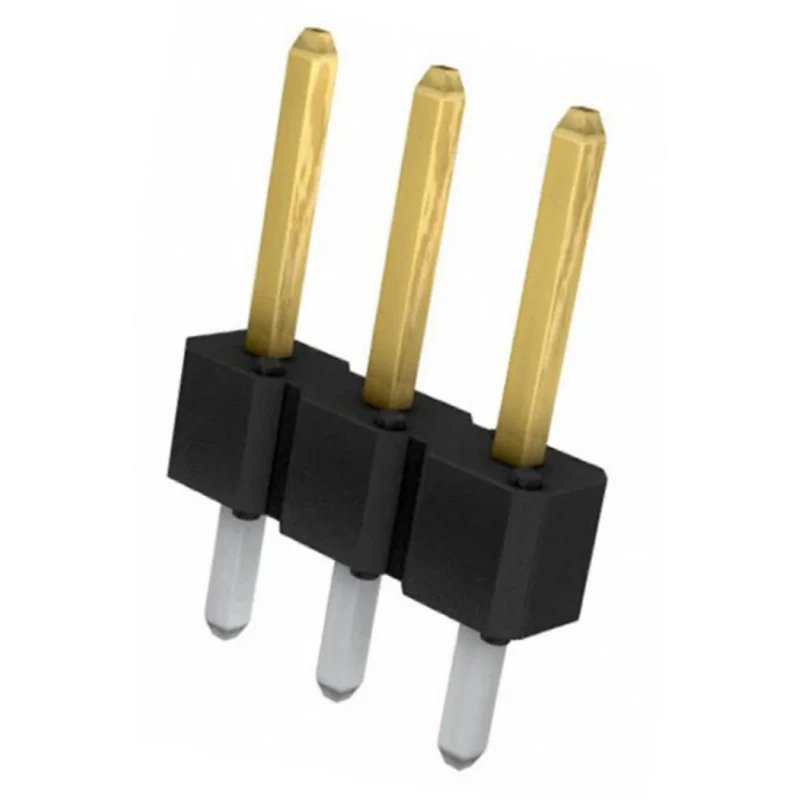

Amphenol Communications Solutions Bergstik Series Straight Through Hole Pin Header, 3 Contact(s), 2.54 mm 77311-118-03LF

Amphenol Communications Solutions 77311-118-03LF Bergstik Series straight through hole pin header is engineered for robust electrical connections in a wide range of wire-to-board and board-to-board electronic assemblies. Featuring 3 male contacts arranged in a single row with a standard 2.54 mm pitch, this pin header delivers reliable connectivity for demanding applications.

The header housing is molded from reflow solder compatible high temperature thermoplastic rated at UL 94 V-0 flammability, allowing it to withstand soldering processes without deformation. Its thermoplastic construction ensures durability and thermal stability at operating temperatures from -65°C to 125°C.

The phosphor bronze contacts are gold plated to provide cost-effective duplex plating that balances performance and economy. These contacts have a current rating of 3 amperes and a dielectric voltage withstand of 1.5kV, making the connector suitable for various power and signal transmission uses.

Designed with a tail pin length of 3.05 mm for secure through hole mounting and a mating pin length of 5.84 mm to ensure proper engagement with female connectors, the pin header supports versatile installation options. The unshrouded design permits easy access for soldering and inspection while stand-offs in the housing aid in removing solder contamination, improving manufacturing yield.

This PCB Pin Header series mates with a broad range of female connectors including the Dubox series receptacles, Quickie IDC connectors, and PV series crimp housings, enhancing system design flexibility. Its economic and versatile nature supports use in industrial electronics, communications equipment, control systems, and other electronic devices requiring reliable connector solutions.

Amphenol's Bergstik Series pin headers offer a practical and cost-efficient solution for designers requiring high-quality, adaptable interconnect components compliant with CHINA RoHS, EU RoHS, and REACH/SvHC environmental standards.

Constructed with thermoplastic housing suitable for high temperature soldering. Phosphor bronze male contacts plated with gold ensure reliable conductivity. Designed for board-to-board and wire-to-board connector systems.

Supports a current rating of 3A and voltage up to 1.5kV. Operates reliably in temperatures ranging from -65°C to 125°C. Features a tail pin length of 3.05 mm and mating pin length of 5.84 mm. Unshrouded design allows for flexible pin access and easy installation.

Cost-effective duplex plating and reflow solder compatible housing for efficient manufacturing. Includes stand-offs to allow removal of solder contamination during assembly. Compatible with various mating connectors including Dubox, Quickie IDC, and PV series crimp housings.
