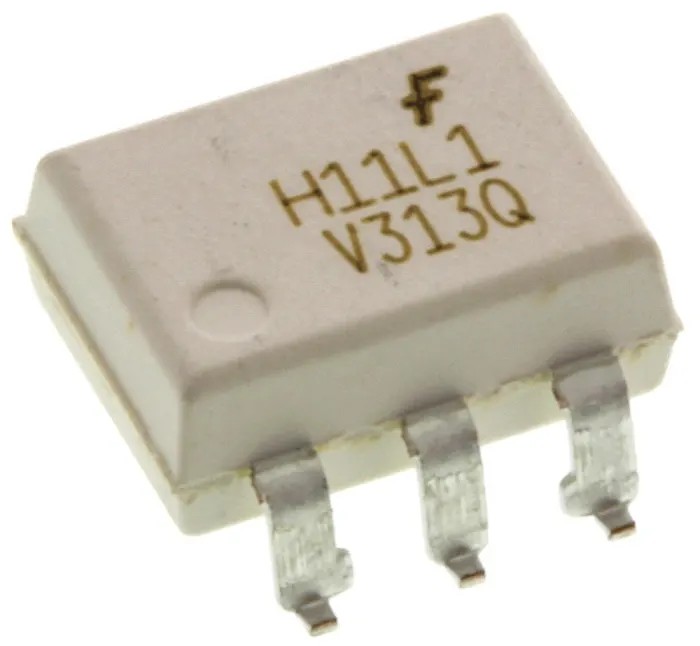

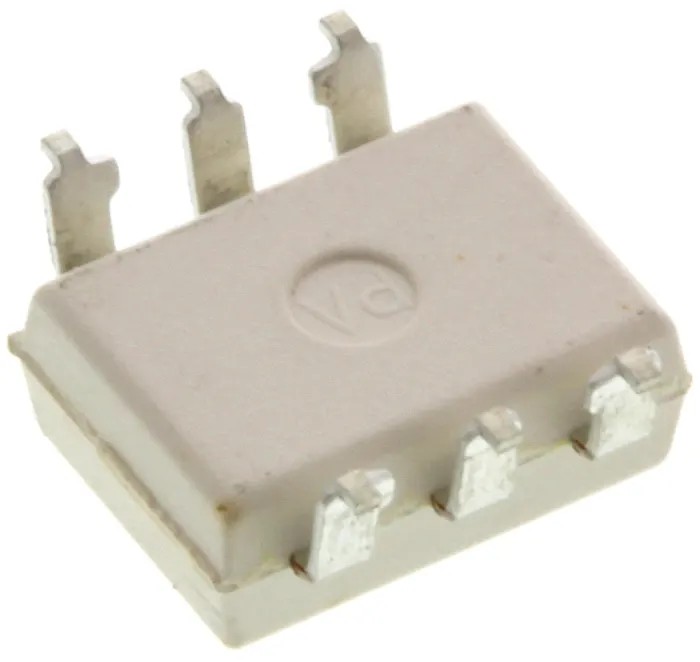

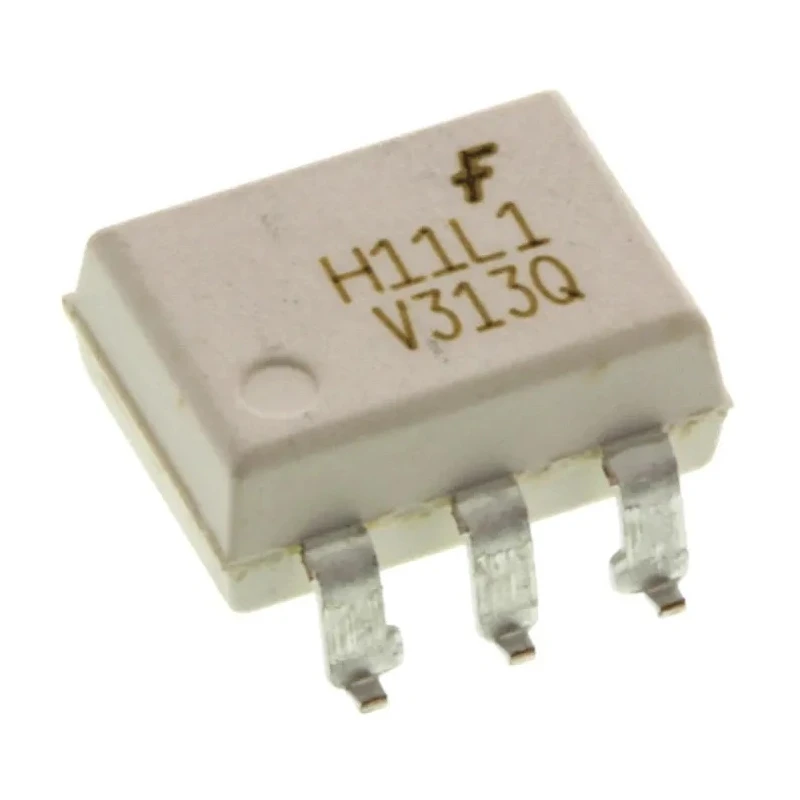

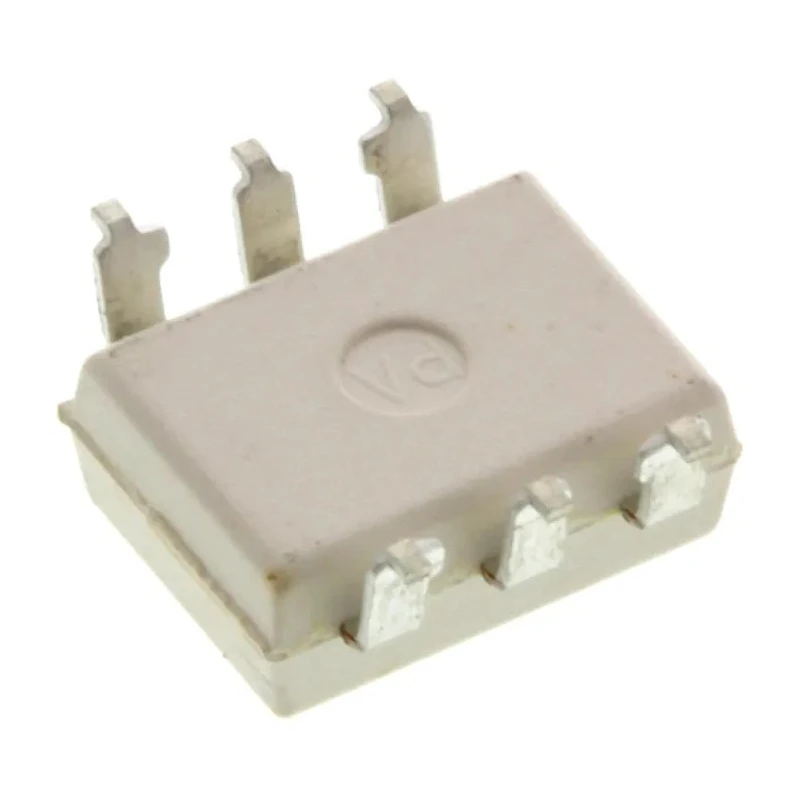

onsemi DC Input Surface Mount Optocoupler 6-Pin DIP H11L1SR2VM

The onsemi H11L1SR2VM is a DC input optocoupler designed for surface mounting with a 6-pin DIP package. It features a single channel optoelectronic isolation device that provides an electrically isolated logic output, suitable for interfacing and switching applications in electronic circuits.

With a maximum forward voltage of 1.5V and a maximum input current rating of 60mA, this component supports efficient signal transfer while protecting sensitive parts of circuitry from electrical noise and high voltages.

The device offers a typical rise and fall time of 0.1 microseconds, making it suitable for high-speed switching applications. It maintains electrical isolation with a robust 7.5kVrms isolation voltage rating, ensuring protection in industrial and commercial electronic environments.

Operating temperature ranges from minus 40 degrees Celsius to plus 85 degrees Celsius, making it reliable in diverse thermal conditions. It meets international safety and performance standards UL1577 and DIN-EN/IEC60747-5-5, assuring quality and compliance for integration into sophisticated electronic assemblies.

Packaging consists of 50 units per tube, facilitating automated assembly processes. This optocoupler is ideal for use in electronics manufacturing, control systems, automation equipment, and instrumentation where signal isolation is critical.

Designed for DC input current with electrical isolation and logic output. Surface mount 6-pin DIP package for easy PCB integration. High isolation voltage and fast switching speed suitable for industrial use. Wide operating temperature range supports varied environmental conditions.

Standards-compliant for reliability and certification requirements. Packaged in tubes of 50 units for manufacturing efficiency.
