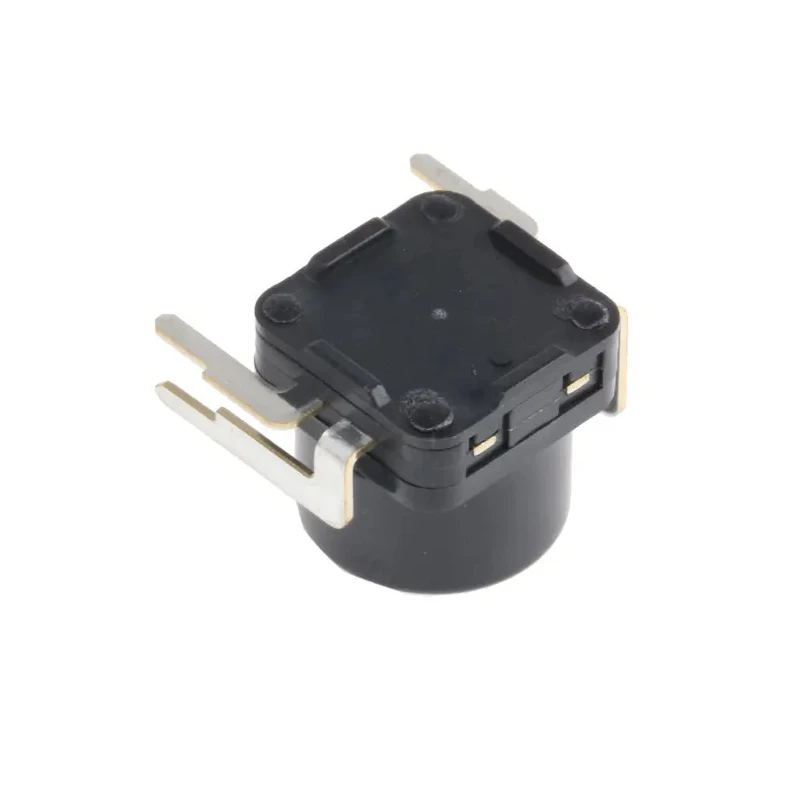

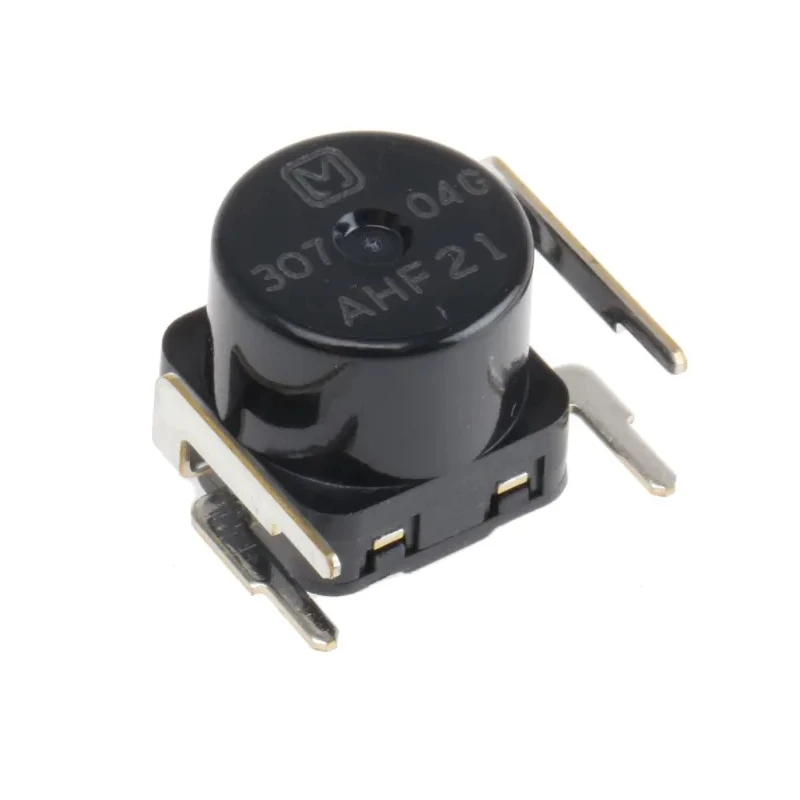

Panasonic 60 ° Vertical Tilt Switch 19 mA AHF21

Panasonic AHF21 60 ° Vertical Tilt Switch is engineered for high precision tilt angle detection in electrical and automation applications. With a differential angle of 60 degrees and a vertical mounting orientation, this tilt switch offers timely and reliable tilt status output.

Featuring a maximum current rating of 19 mA and a maximum DC voltage of 5 V dc, the switch is optimized for low power and signal control circuits commonly found in industrial and consumer electronics.

The operating temperature range spans from -20°C to 80°C, ensuring functionality under diverse environmental conditions such as manufacturing plants, HVAC controls, and machinery monitoring.

The device's compact form factor with dimensions of 11.5 mm length, 9.5 mm width and diameter, and 11.9 mm depth enables easy integration into limited spaces requiring sensitive tilt detection.

Equipped with a tip switch coupled with a photo sensor, the switch provides enhanced accuracy and reliability for position sensing tasks. Operates with a maximum DC voltage of 5 V dc suitable for low voltage applications.

Designed to function reliably within a temperature range from -20°C to 80°C. Compact dimensions: 11.5 mm length, 9.5 mm diameter, and 11.9 mm depth for space-constrained installations. Tip switch with integrated photo sensor technology ensures accurate tilt sensing.

Manufactured under Panasonic's AHF2 series standards with country of origin Japan.

This tilt switch is ideal for industrial automation, electrical equipment, HVAC systems, manufacturing machinery, robotics, and safety control uses. It provides precise vertical tilt angle detection to support system reliability and operational efficiency.
