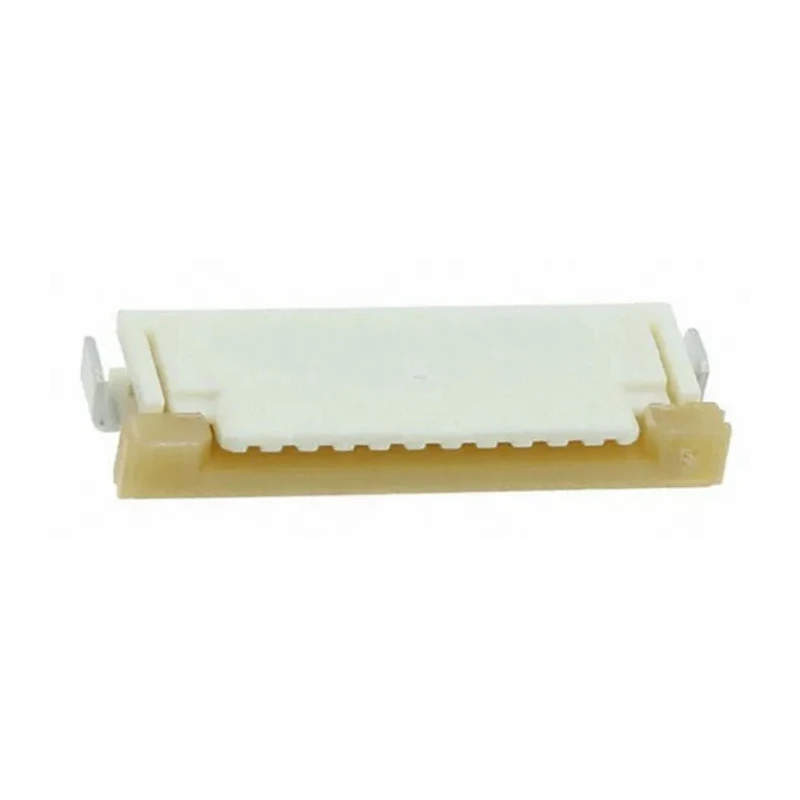

Molex Easy-On 1 mm Pitch 11 Way Right Angle Female FPC Connector ZIF Top Contact 52207-1160
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 30V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | Easy-On |
| Termination Type | ZIF Top Contact |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -30°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 11 |
| Contact Gender | Female |
| Connector Gender | Female |
Key Features
- Features 11 contacts made with phosphor bronze for durable conductivity.
- Supports a maximum current of 1A and voltage rating of 30V.
- ZIF (Zero Insertion Force) top contact design enables secure and easy insertion of FPC cables.
- Right angle orientation helps save space on printed circuit boards.
- Gold over nickel plating ensures corrosion resistance and signal integrity.
- Nylon housing provides high mechanical strength and electrical insulation.
- Operating temperature range from -30°C to 85°C for versatile environments.
- Slide type actuator and movable contacts provide secure retention and long cycle life.
Product Description
Molex 52207-1160 Easy-On 1 mm Pitch 11 Way Right Angle Female FPC Connector with ZIF Top Contact is engineered to offer a space-saving, high-reliability connection solution for flexible printed circuits in electronic assemblies.
This surface mount connector features 11 phosphor bronze contacts with gold over nickel plating to maintain excellent electrical performance and corrosion resistance. The ZIF top contact termination minimizes wear during repeated insertions, making it suitable for applications requiring high durability.
The right angle orientation and compact pitch of 1 mm enable efficient PCB layouts in tight packaging environments. Its nylon housing provides sturdy mechanical support and electrical insulation, while the slide actuator mechanism ensures easy insertion and secure retention of flexible printed cables.
Operating reliably between -30°C and 85°C, this connector fits diverse applications such as automotive navigation systems, consumer electronics, medical monitoring equipment, telecom devices, and mobile phones.
The solder tabs integrated at the base enhance PCB durability by providing strain relief for solder tails, reducing mechanical stress on connections during use. Features 11 contacts in a single row with reliable ZIF top contact termination.
Compact 1.00 mm pitch suitable for high-density FPC applications. Phosphor bronze contact material with gold over nickel plating. Nylon housing ensures mechanical robustness and insulation. Designed for easy and secure FPC insertion with a slide-type actuator.
Right angle connector orientation enables space-saving PCB design. Wide operating temperature range from -30 to 85°C for mixed environment use. Current rating is 1A with a voltage limit of 30V. Applications include automotive, consumer electronics, medical devices, and telecom.
Solder tabs provide secure PCB retention and strain relief support. Explore the extensive range of FPC Connectors at EnvMart to enhance your electronic designs with high-quality, reliable components from Molex.
