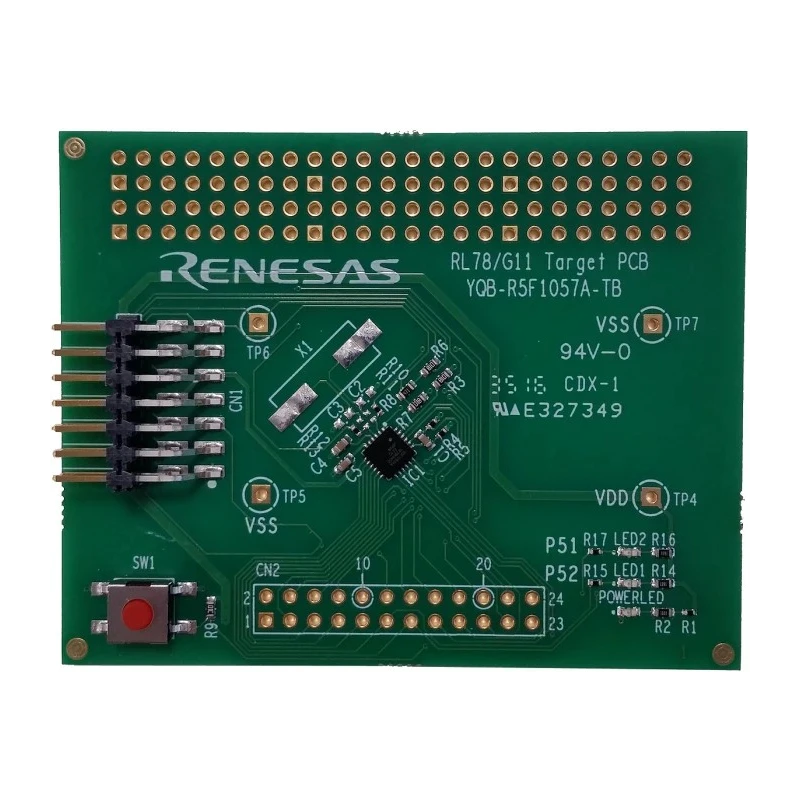

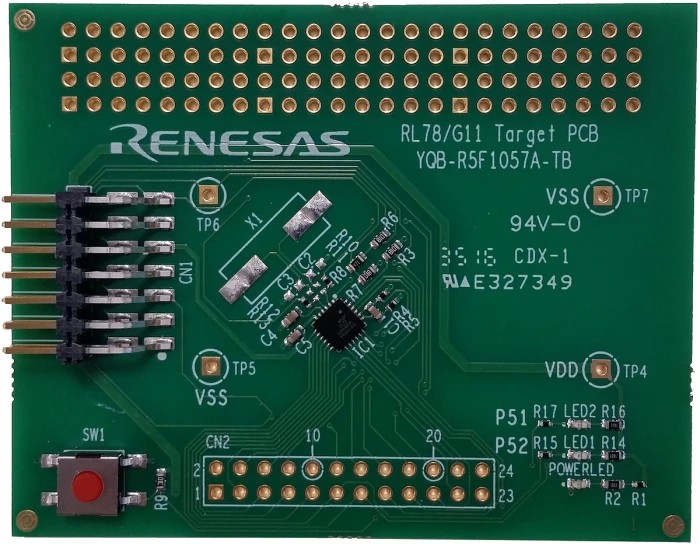

Renesas Electronics Target Board MCU Evaluation Board YQB-R5F1057A-TB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Dimensions | 71 x 56mm |
| Model | YQB-R5F1057A-TB |
| Technology | MCU |
| Standards/Approvals | RoHS |
| Kit Classification | Evaluation Board |
| Kit Name | Target Board |
| Processor Part Number | R5F107AANA |
| Processor Type | Microcontroller |
| Processor Family Name | RL78 |
Key Features
- Features a 24MHz RL78/G11 16-bit MCU with 16KB Flash memory and 1.5KB RAM.
- Includes power status LED and 2 user LEDs for status display.
- Equipped with a user pushbutton and a 24-pin peripheral connector socket pads.
- Has a 14-pin header for E1/E2 Lite emulator pod connection.
- Includes four 24-pad prototyping areas for custom development.
- Operates with a power supply voltage range from +1.6 to +5.5V DC.
- Compact dimensions of 71 x 56 mm facilitate easy integration.
Product Description
Renesas Electronics YQB-R5F1057A-TB Target Board MCU Evaluation Board features the RL78/G11 family 24MHz 16-bit microcontroller (R5F1057AANA) equipped with 16KB of Flash memory and 1.5KB of RAM memory.
This evaluation board is designed to support developers in building and testing embedded applications efficiently.
The board includes essential features such as power status LED indicators, two user LEDs, a user pushbutton, and a 24-pin peripheral connector socket pads to enable flexible connectivity and user interaction.
A 14-pin header allows the connection of the E1 or E2 Lite emulator pod for convenient debugging and programming during development. The board has four prototyping areas each with 24 pads, which provide ample space for circuit modifications and additions for custom applications.
Its power supply voltage operates between +1.6 to +5.5V DC, making it versatile for various power scenarios. With dimensions of 71 x 56 mm, this compact evaluation board easily fits into development setups without occupying significant space.
This product suits embedded systems development for industrial, educational, and laboratory use, enabling efficient microcontroller application evaluation. Features a 24MHz RL78/G11 16-bit MCU with 16KB Flash memory and 1.5KB RAM.
Includes power status LED and 2 user LEDs for visual indicators. User pushbutton for manual input testing. 24-pin peripheral connector socket pads support external modules. 14-pin header for E1/E2 Lite emulator pod connection for debugging.
Four 24-pad prototyping areas for custom circuit development. Wide power supply voltage range of +1.6 to +5.5V DC. Compact size of 71 x 56 mm. Explore the Electronics & Electricals category and Semiconductor Evaluation Boards on EnvMart for more development tools from Renesas Electronics and other leading brands.
