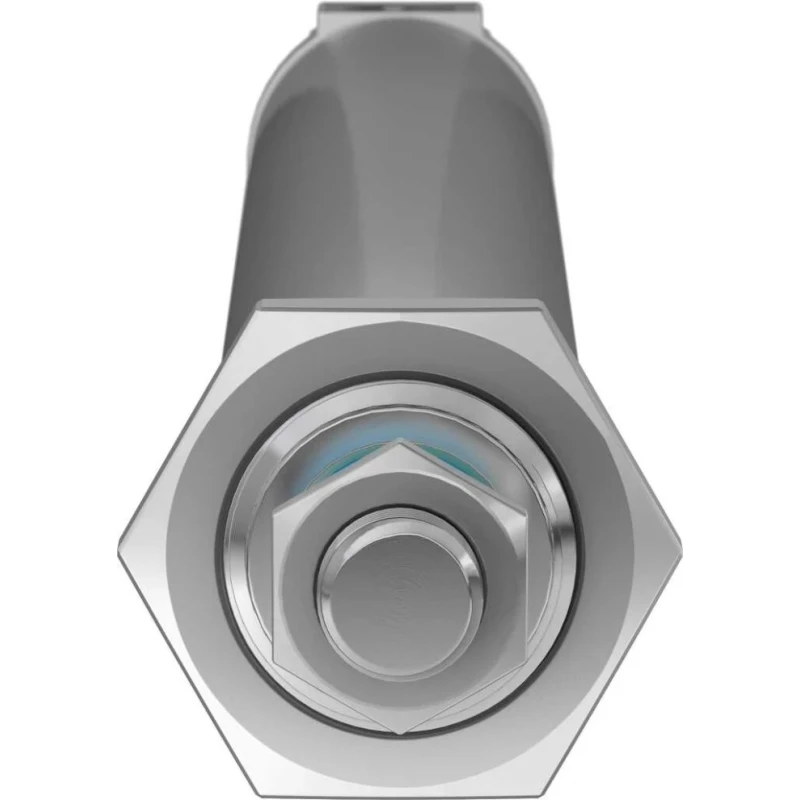

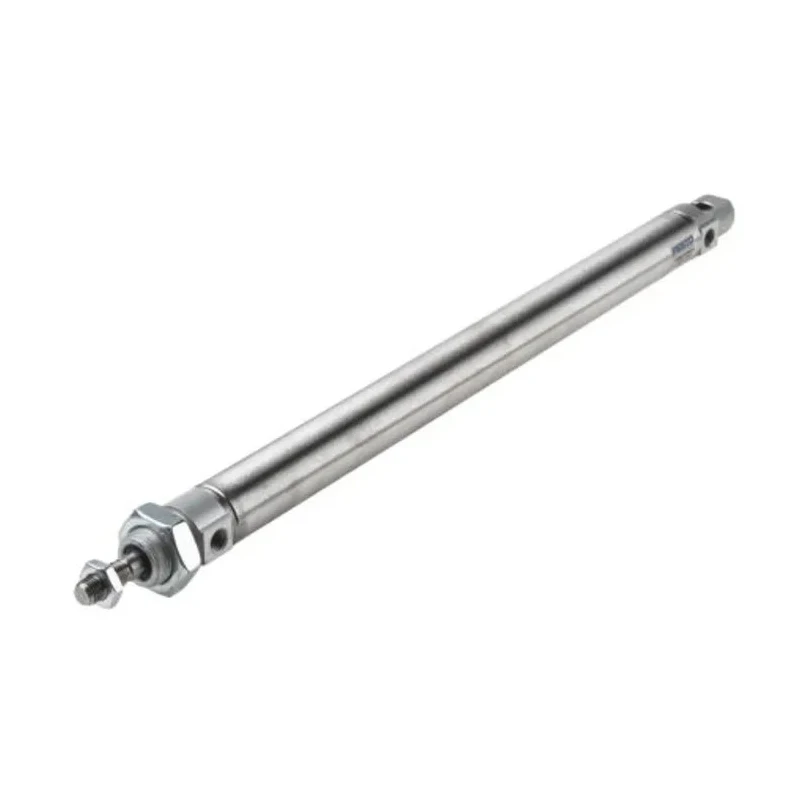

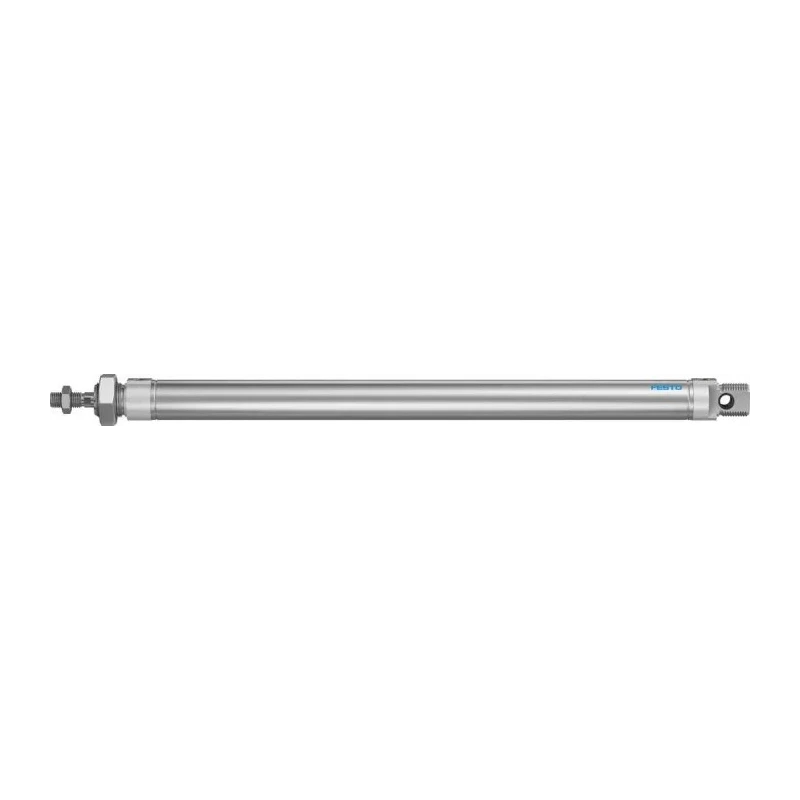

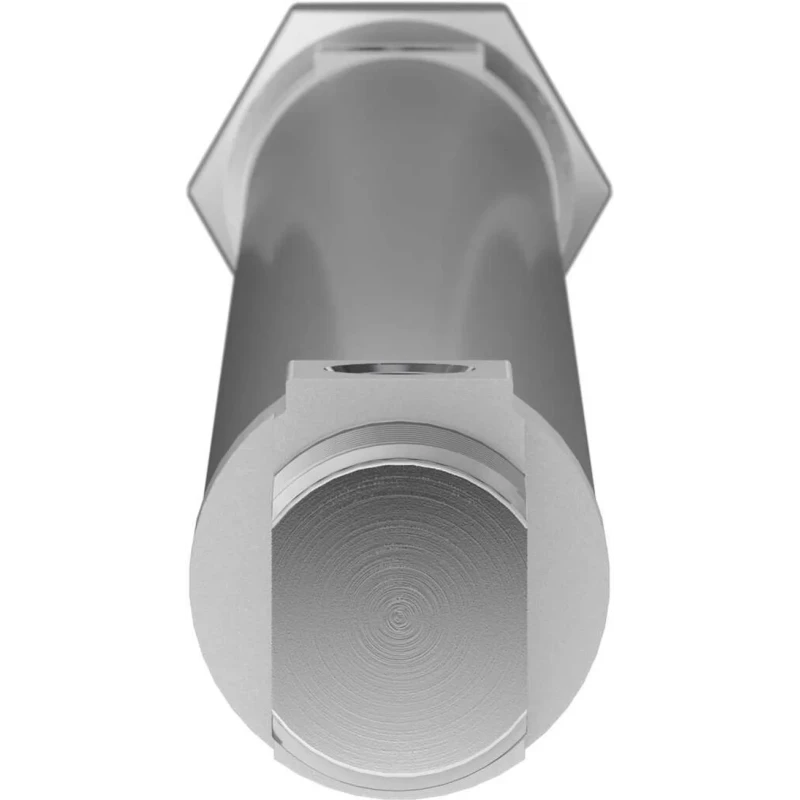

Festo Pneumatic Cylinder Double Acting Aluminium Body 25 mm Bore 320 mm Stroke ISO 6432 DSNU-25-320-PPS-A
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Body Material | Aluminium |
| Length | 461.5mm |
| Model | DSNU-25-320-PPS-A |
| Mount Type | Through Hole |
| Series | DSNU |
| Maximum Operating Temperature | 80°C |
| Stroke Length | 320mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | CETOP RP 52 P, ISO 6432, RoHS |
| Cushioning Type | Air Cushion |
| Piston Rod Gender | Male |
| Piston Rod Thread Size | 1/8 in G |
| • The design structure of the cylinder is | Piston, piston rod and cylinder barrel |
| Festo 320 mm Pneumatic Cylinder - 34721 DSNU Series, Double Acting ActingBrand | Festo |
Key Features
- The cylinder is constructed for ISO 6432 compliant mounting dimensions providing interchangeability with standard pneumatic systems.
- Equipped with self-adjusting air cushioning at both ends for smooth piston travel and long service life.
- The piston rod is stainless steel with an M10x1,25 male thread and G 1/8 pneumatic connections.
- Designed for mounting via through holes and can be installed in any position to suit diverse industrial applications.
- Operates safely up to a maximum temperature of 80°C in varied mechanical, fluid power, and automation systems.
- Its double acting action provides linear motion with compressed air applied alternately to advance and retract the piston.
- Manufactured in Germany ensuring high quality standards and compliance with CETOP RP 52 P and RoHS.
Product Description
Festo DSNU-25-320-PPS-A pneumatic cylinder is a high-quality double acting actuator with a 25 mm bore and 320 mm stroke length designed for precise linear movement in automation and industrial fluid power applications. It features a robust aluminium body and stainless steel piston rod conforming to ISO 6432 standards for metric mounting dimensions, allowing flexible installation and interchangeability.
The cylinder incorporates self-adjusting pneumatic cushioning on both ends to ensure gentle piston deceleration, reducing wear and extending service life without requiring manual adjustments. Its design includes a M10x1,25 threaded stainless steel piston rod and G 1/8 pneumatic connection ports for reliable air supply coupling.
This actuator supports through-hole mounting and permits assembly in any position, offering versatility across various manufacturing, laboratory automation, HVAC systems, and mechanical automation installations. The double acting operation enables bidirectional piston movement controlled by compressed air to precisely power mechanical processes.
Constructed with high-grade materials, including an aluminium body and corrosion-resistant piston rod, this cylinder is capable of enduring operating temperatures up to 80°C. Compliance with CETOP RP 52 P and RoHS standards ensure the device meets relevant quality and environmental regulations.
Festo’s DSNU series pneumatic cylinders provide long service life and dependable performance across industrial, laboratory, and manufacturing automation sectors. The DSNU-25-320-PPS-A model offers convenience in mounting, robust materials, and self-adjusting cushioning, making it an ideal choice for pneumatic actuator requirements.
The cylinder has a piston diameter of 25 mm and a stroke length of 320 mm. It uses an aluminium body and stainless steel piston rod for robustness and corrosion resistance. Features include self-adjusting pneumatic cushioning for smooth operation.
Double acting mode allows precise piston rod advance and retraction. ISO 6432 compliant metric mounting dimensions. Maximum operating temperature is 80°C suitable for diverse environments. Pneumatic connection size is G 1/8 inch, and piston rod thread is M10x1,25.
This Pneumatic Cylinder is manufactured in Germany by Festo, ensuring premium quality and reliability for industrial pneumatic automation needs. Explore other pneumatic actuators and accessories within the Pneumatic Piston Rod Cylinders category at EnvMart for comprehensive automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The stroke length of this pneumatic cylinder is 320 mm.
This model has a bore size of 25 mm.
The cylinder features an aluminium body and a stainless steel piston rod.
It operates as a double acting actuator, allowing bidirectional piston movement.
It is designed for through-hole mounting, allowing installation in various positions.
The maximum operating temperature is 80°C.
It incorporates self-adjusting air cushioning at both ends for smooth piston travel.
The piston rod has a male thread size of M10x1.25 and G 1/8 pneumatic connections.
It complies with CETOP RP 52 P, ISO 6432, and RoHS standards.
The overall length of this cylinder is 461.5 mm.
It is suitable for various industrial, laboratory automation, and HVAC applications.
This model is manufactured in Germany.
