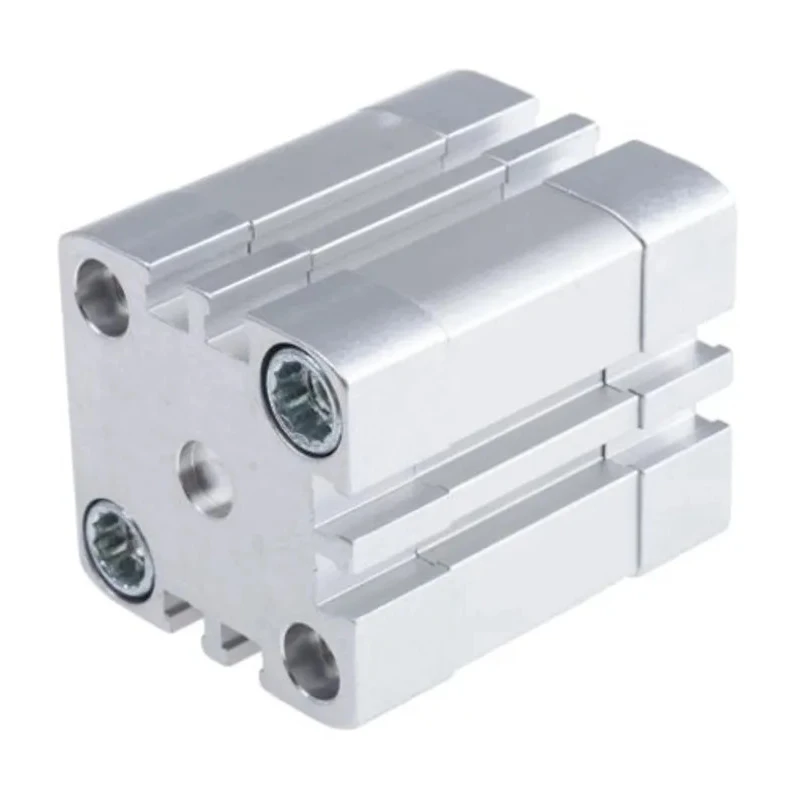

Festo Pneumatic Cylinder 50mm Bore, 5mm Stroke, Aluminium Body, Double Acting, ISO 21287, ADN Series ADN-50-5-I-P-A

Festo ADN-50-5-I-P-A Pneumatic Cylinder is a precision-engineered pneumatic actuator from the ADN Series designed to deliver reliable and efficient double acting performance. Featuring a 50mm bore diameter with a 5mm stroke length, the cylinder is built with a durable aluminium body compliant with ISO 21287 standards, optimized for industrial and manufacturing automation applications.

This compact cylinder design, up to 50% smaller than conventional cylinders, allows installation in space-constrained environments while maintaining robust performance. The double acting mechanism uses compressed air ports on both ends to control piston advance and retraction, enabling precise linear motion control.

The unit is equipped with air cushioning and cushioning rings that reduce operational noise and vibration, extending the cylinder's service life and improving production efficiency. Flexible polymer end cushioning further supports quiet operation and durability.

The piston rod is single and features a female thread size of 1/8 inch G, designed for easy mounting and integration. The cylinder incorporates slots along the body for flush mounting proximity sensors which facilitate contactless position detection enhancing automation processes.

Operating conditions include a maximum pressure rating of 10 bar, and a temperature operating range from -20°C to +80°C, suitable for varied industrial environments. The through hole mount type provides versatile mounting options, horizontally or vertically, with optional accessories like swivel brackets and foot mounts for tailored support.

Applications for the Festo ADN-50-5-I-P-A include pneumatic automation in industrial tools and equipment, HVAC systems, fluid power tools, and manufacturing processes requiring precise actuation.

Complies with ISO 21287 standard for pneumatic cylinders. Compact size for installation in tight spaces. Double acting operation for controlled linear motion. Air cushioning and cushioning rings reduce vibration and noise.

Aluminium body for durability and lightweight performance. Proximity sensor slots for position monitoring. Operating pressure of up to 10 bar. Temperature range from -20°C to 80°C. Through hole mount type for flexible installation.

Single rod with female 1/8 inch G thread size. Discover the full range of Pneumatic Cylinders and actuators at EnvMart for your industrial automation needs.
