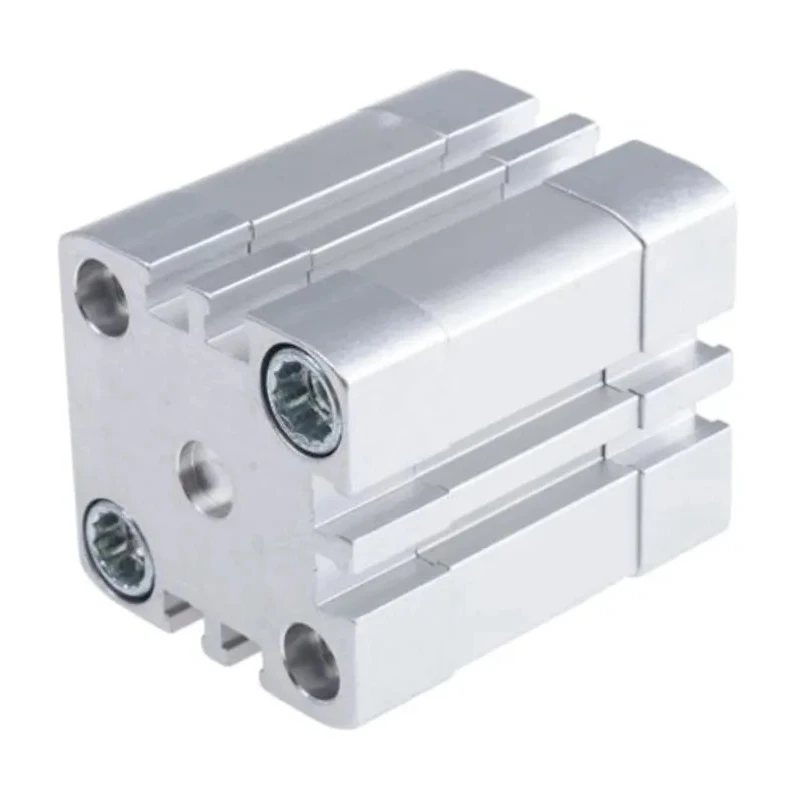

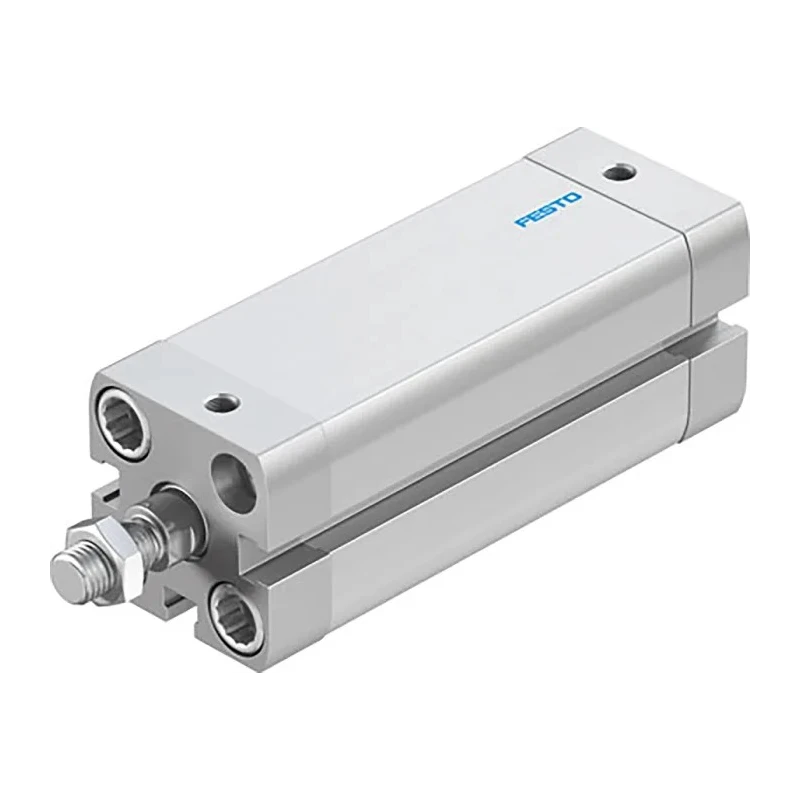

Festo Pneumatic Cylinder Aluminium Body Double Acting 40mm Bore 10mm Stroke, Through Hole Mounting ADN-40-10-A-P-A
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Body Material | Aluminium |
| Maximum Operating Pressure | 10 bar |
| Height | 54.5mm |
| Length | 61.1mm |
| Model | ADN-40-10-A-P-A |
| Width | 54.5mm |
| Mount Type | Through Hole |
| Series | ADN |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -20°C |
| Stroke Length | 10mm |
| Bore Diameter | 40mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | ISO 21287, RoHS |
| Cushioning Type | Air Cushioning, Cushioning Rings |
| Piston Rod Gender | Male |
| Piston Rod Thread Size | 1/8 in G |
Key Features
- The cylinder is constructed with a durable aluminium body for lightweight strength.
- Equipped with air cushioning and cushioning rings for reduced noise and vibration.
- Through hole mounting allows easy installation in confined spaces.
- Operates under a maximum pressure of 10 bar with operating temperatures ranging from -20°C to 80°C.
- Magnetic piston rods enable contactless position detection through proximity sensors.
- Complies with ISO 21287 standard ensuring quality and interchangeability.
- Flexible cushioning extends service life and increases production efficiency.
- Suitable for industrial pneumatic applications requiring precise linear actuation.
Product Description
Festo ADN-40-10-A-P-A pneumatic cylinder features a compact aluminium construction with a 40mm bore diameter and a 10mm stroke length, designed as a double acting actuator for versatile industrial applications.
This cylinder utilizes air cushioning and cushioning rings to minimize noise and vibration during operation, enabling smooth and reliable linear motion. The body is manufactured to ISO 21287 standards, ensuring dimensional consistency and quality.
The unit supports through hole mounting, providing flexible installation options in both horizontal and vertical orientations, suiting various automation and fluid power systems.
With a maximum operating pressure of 10 bar and temperature operating range from -20°C to 80°C, it reliably performs in demanding environments. The piston rod is male-threaded with a 1/8 in G thread size, and the rod type is single.
Magnetic piston rods allow contactless position detection using proximity sensors mounted in the dedicated slots along the cylinder body, delivering precision and feedback for automation controls.
Typical use cases include industrial automation, manufacturing process controls, mechanical actuation, and pneumatic systems in sectors like automotive, packaging, and material handling.
The aluminium body provides lightweight strength and corrosion resistance. Flexible polymer end cushioning reduces noise, vibration, and wear. Double acting design offers air pressure at both extend and retract strokes. Compliant with industry standards ISO 21287 and RoHS.
Magnetic rod enables integration with position sensors for automated feedback. Compact dimensions facilitate installation in restricted spaces. Suitable for applications requiring precise linear motion and positioning. Manufactured in Germany to high quality standards.
Explore the wide selection of Pneumatic Cylinders and actuators available for enhanced automation solutions through EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bore diameter of this model is 40mm.
This unit has a stroke length of 10mm.
It operates under a maximum pressure of 10 bar.
The operating temperature range is from -20°C to 80°C.
This model supports through hole mounting, allowing for flexible installation in various orientations.
The body of this cylinder is constructed from aluminium, providing lightweight strength and corrosion resistance.
It complies with ISO 21287 and RoHS standards, ensuring quality and safety.
It features air cushioning and cushioning rings to minimize noise and vibration during operation.
The piston rod is a single type with a male-threaded size of 1/8 in G.
It is suitable for industrial automation, manufacturing process controls, mechanical actuation, and pneumatic systems in sectors like automotive and packaging.
The magnetic piston rod allows for contactless position detection using proximity sensors, providing precision feedback for automation controls.
The dimensions of this model are 61.1mm in length, 54.5mm in height, and 54.5mm in width.
