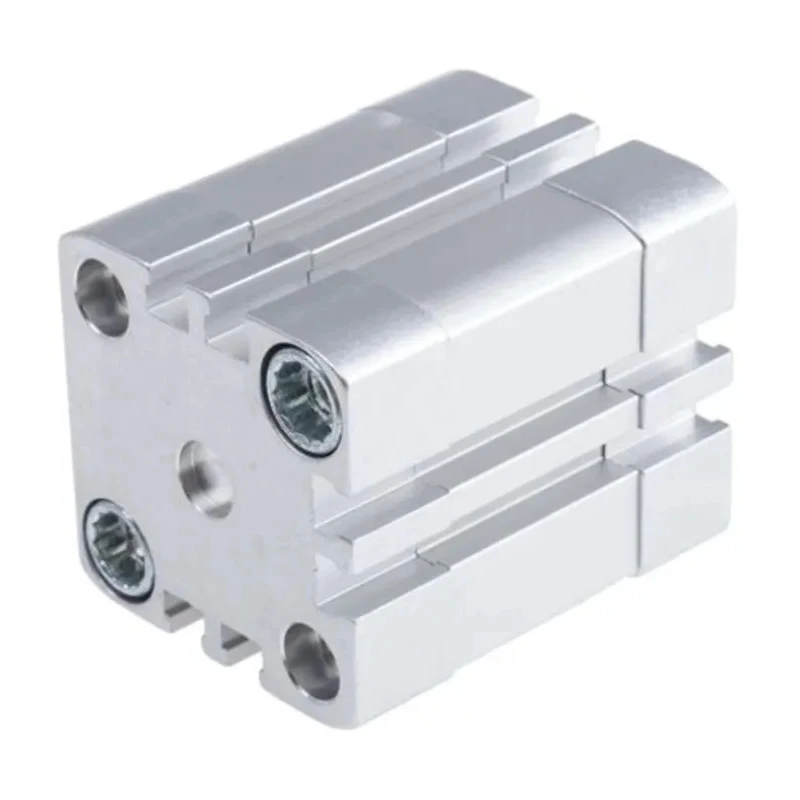

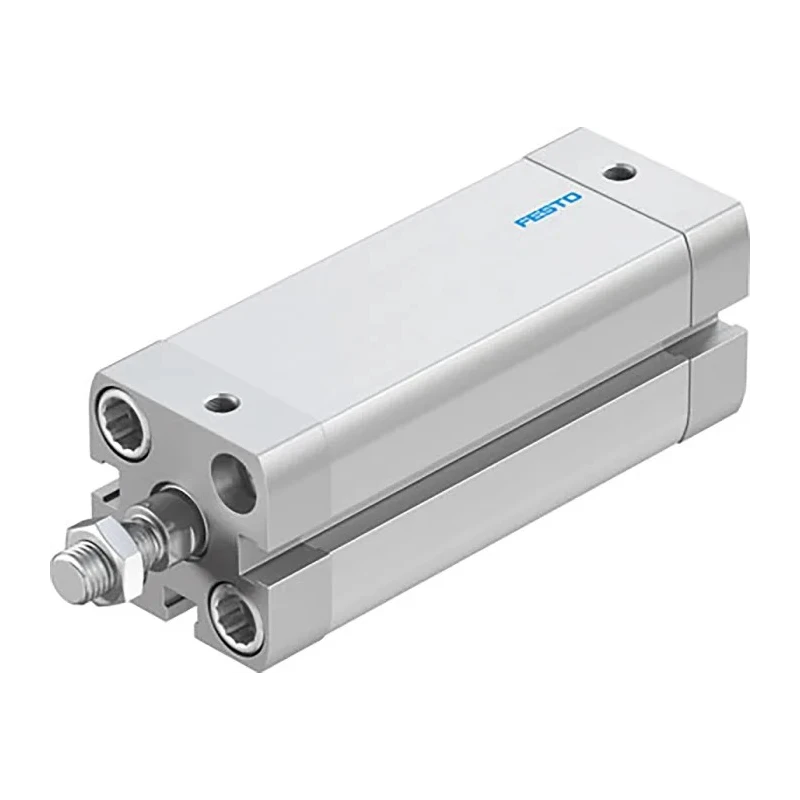

Festo Pneumatic Cylinder ADN Series 50mm Bore 15mm Stroke Double Acting Aluminium Body ADN-50-15-A-P-A

Festo ADN-50-15-A-P-A pneumatic cylinder is part of the ADN series of compact pneumatic actuators designed for efficient operation in confined industrial spaces. This model features a 50mm bore diameter and a 15mm stroke length, delivering reliable double acting performance with air cushioning and cushioning rings to minimize noise and vibration, thus protecting equipment longevity.

The aluminium body construction ensures a lightweight yet durable solution suitable for both horizontal and vertical mounting configurations. The cylinder is equipped with through hole mounting for secure installation and slots designed to accommodate flush mounting of proximity sensors for precise piston position feedback.

Operating pressures reach up to 10 bar, with a temperature range from -20°C to 80°C, making it adaptable to varied industrial environments. The piston rod features a male 1/8 inch G thread, allowing easy integration into different machinery setups. The compact dimensions (length 67.7mm, width and height 65.5mm) make it ideal for applications requiring space efficiency.

The ADN series conforms to ISO 21287 standards and includes RoHS compliance, supporting environmentally responsible manufacturing. The magnetic piston rods enable contactless position sensing, enhancing automation reliability in fluid power, mechanical, and pneumatic systems.

This pneumatic cylinder is suited for an array of industrial applications including manufacturing automation, material handling, and fluid power systems where precision and compact design are critical. It can be used in conjunction with various mounting accessories to adapt to specific operational needs.

The cylinder complies with ISO 21287 standards and RoHS regulations. Compact design reduces installation space requirements by up to 50% compared to standard cylinders. Flexible cushioning system reduces mechanical wear and maintenance effort.

Supports magnetic piston rods for non-contact position detection using proximity sensors. Durable aluminium body resists corrosion and mechanical damage. Operates reliably within a temperature range of -20°C to 80°C and up to 10 bar pressure.

Suitable for horizontal or vertical mounting with standard through hole fixing. Male 1/8 in G piston rod thread allows easy integration into assembly lines. Ideal for industrial automation, manufacturing, and fluid power applications.

Manufactured in Turkey ensuring consistent quality control and reliability. Explore more Pneumatic Cylinders and related pneumatic automation products on EnvMart.
